Chamberlain C2212T Chain Drive Parts
Chamberlain C2212T Replacement Parts

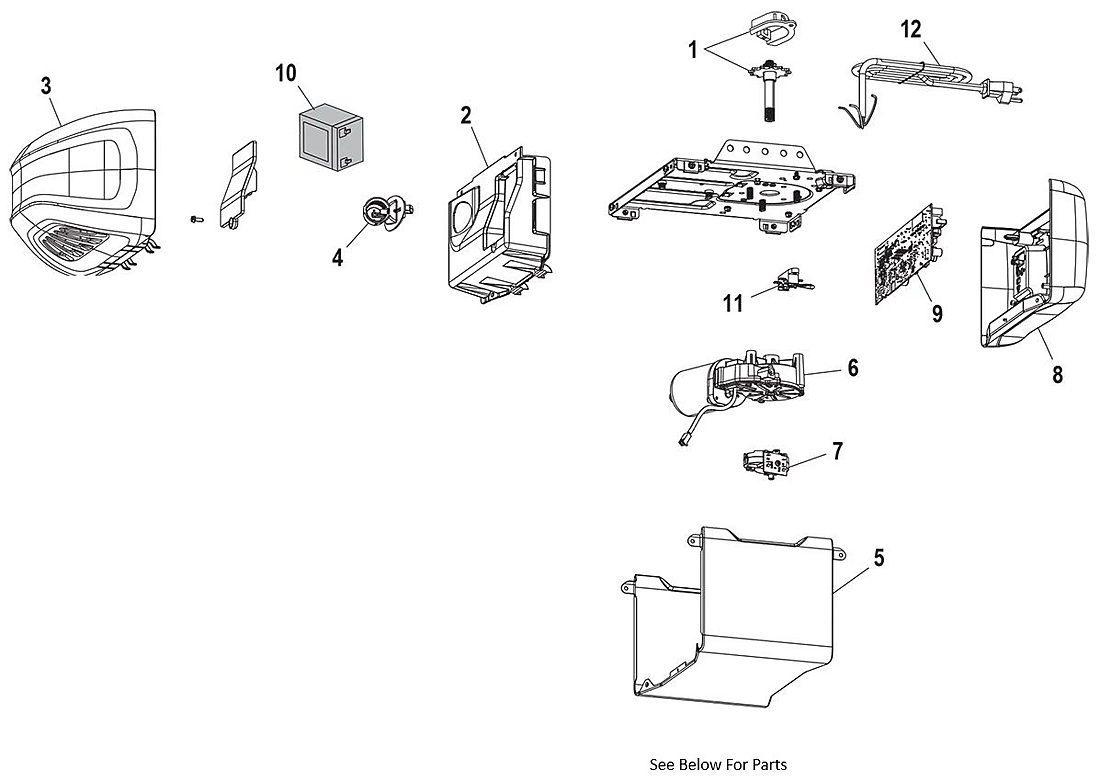

Genuine replacement parts for the Chamberlain C2212T chain drive garage door opener — a DC unit with Wi-Fi and battery backup. Find your part on the diagram, then click the part number in the table below.
Garage Door Opener Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41B5348-2 | Sprocket and hub kit |
| 2 | 41A7618 | End panel |
| 3 | 041-0144 | Light lens |
| 4 | 41C0279 | Light socket kit |
| 5 | 041-0229-000 | Cover |
| 6 | 041-0236-000 | Motor with travel module, DC |
| 7 | 41D8071-4 | Travel module kit, universal DC |
| 8 | 41D0233-3 | End panel for logic board |
| 9 | 50DCTWF | Logic board, Wi-Fi. Now supplied as the 050DCTBFMC |
| 10 | G485LM | Battery backup replacement, 12V |
| 11 | 41A3150 | Terminal block kit |
| 12 | 41B4245-1 | Power cord kit, 6 ft |
| — | 41D9069 | Wire harness kit (not shown) |
| — | 41D0277-1 | Transformer, Wi-Fi battery backup (not shown) |
Rail Assembly Parts
Chain and rail are sold by door height. Match the length to your door.
| Part Number | Description |
|---|---|
| 41A5807 | Chain and cable — 7 ft door |
| 41A5807-4 | Chain and cable — 8 ft door |
| 41A5807-2 | Chain and cable — 10 ft door |
| 41A5665 | Square rail assembly |
| 4A1008 | Master link #48 |
| K144C0056 | Square rail idler pulley |
| 41C5141-1 | Square rail trolley kit |
| 41A7276 | Trolley wear pad kit |
| 041D0598-1 | "U" bracket |
| K083A0011-1 | Lithium rail grease |
Installation Parts
| Part Number | Description |
|---|---|
| 041B0035B | Curved door arm section |
| 4178B0034B | Straight door arm section |
| 041A8094 | Door arm kit — curved and straight together |
| 41A5047 | Door bracket kit |
| 41A5047-2 | Header bracket kit |
| 41A2828 | Emergency release rope and handle |
| 41B4494-1 | Bell wire kit |
| 041-0136 | Safety sensor kit |
| 041-0155-000 | Safety sensor brackets |
| 041-0365-000 | Sensor eyes and brackets together |
| 12B776 | Hanging bracket |
| 41A7920-1 | Hardware kit, chain drive |
| 29B137 | Remote control visor clip |
| 10A20 | 3V CR2032 lithium battery |
| 893MAX | 3-button remote control |
DC motor, not AC. The C2212T runs a DC motor with battery backup, so it has no capacitor. If your opener has a capacitor and a 50ACTWF board, you have a C2202 or C2405 instead and those parts will not fit.
