Chamberlain Belt Drive model B980 parts
Chamberlain B980 Replacement Parts

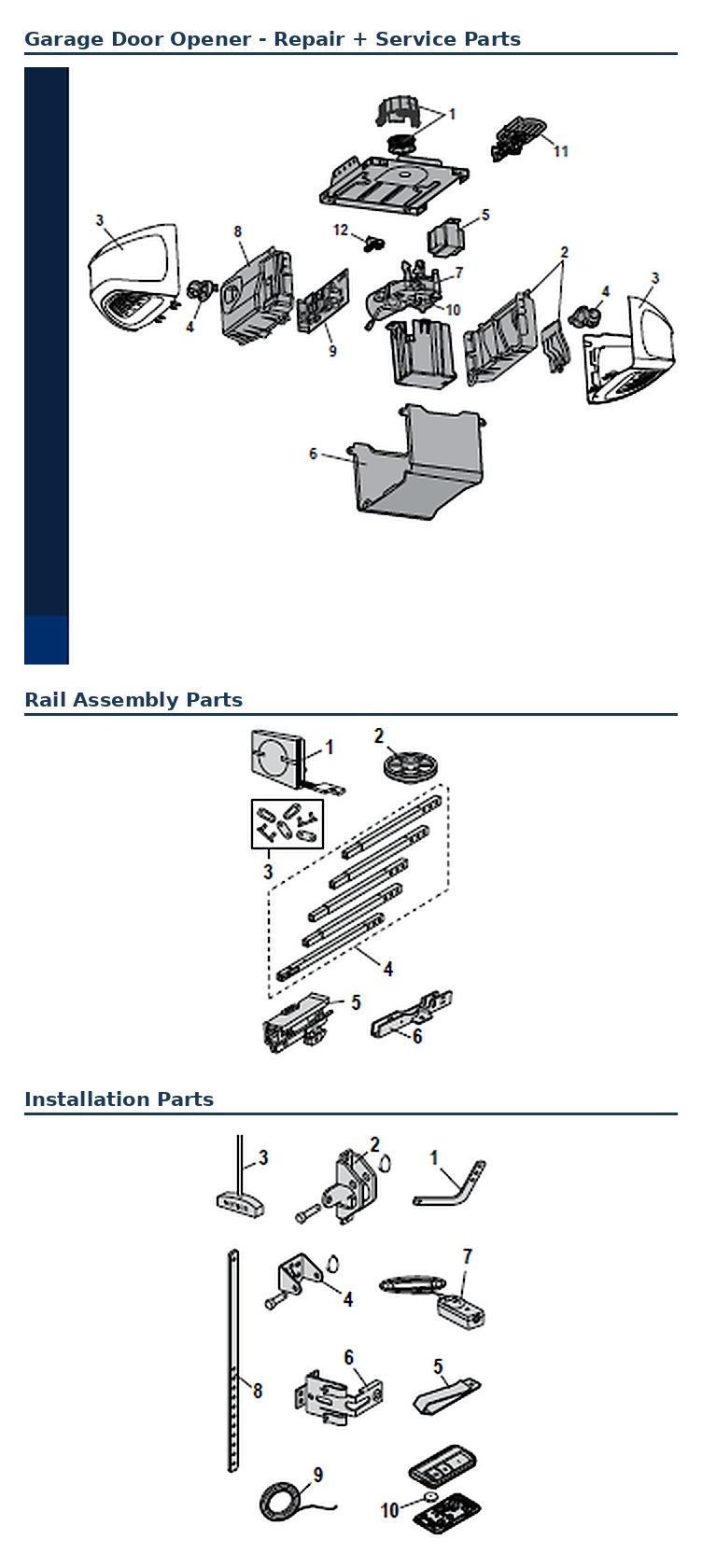

Genuine replacement parts and repair components for the Chamberlain B980 and B980C belt drive garage door opener with battery backup and automatic lock. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041C1751 | Belt Cap and Sprocket Kit |
| 2 | 041D7639-1 | End Panel |
| 3 | 041-0144 | Light Lens |
| 4 | 041C0279 | Light Socket |
| 5 | 041D0277-1 | Transformer, Wi-Fi Battery Backup |
| 6 | 041D9137 | Cover |
| 7 | 041-0236-000 | Motor with Travel Module |
| 8 | 041D9242 | End Panel |
| 9 | 050DCTBLKMC | Logic Board, Bluetooth Enabled, Lock |
| 10 | 041D8071-4 | Travel Module Kit, Universal DC |
| 11 | 041B4245-1 | AC Power Cord, 6' |
| 12 | 041A3150 | Terminal Block Kit |
| — | 041D8255 | Wire Harness Kit |
Rail Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5250 | Belt, 7' |
| 2 | K144C0054M | Belt Idler Pulley |
| 3 | 004A1008 | Chain, #48, Master Link |
| 4 | 041A5665 | Rail Kit, 7' |
| 5 | 041C5141-2 | Square Rail Trolley Kit |
| 6 | 041D0598-1 | U Bracket Adapter |
| 7 | 041A6689 | Threaded Shaft, D-Shape |
| 8 | 041B4103 | Belt Tensioner Kit |
| — | 041A7276 | Trolley Wear Pads |
| — | K083A0011-1 | Lithium Rail Grease |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B0035B | Curved Door Arm |
| 2 | 041A5047-1 | Door Bracket |
| 3 | 041A2828 | Emergency Manual Release Rope |
| 4 | 041A5047-2 | Header Bracket |
| 5 | K029B0137 | Remote Control Visor Clip |
| 6 | 041-0155-000 | Safety Sensor Bracket Kit |
| 7 | 041-0136 | Safety Sensor Kit |
| 8 | 4178B0034B | Straight Door Arm |
| 9 | 041B4494-1 | White/Red Bell Wire |
| 10 | K010A0020 | 3V CR2032 Lithium Battery |
