Chamberlain Belt Drive model B6753ST parts
Chamberlain B6753 Replacement Parts

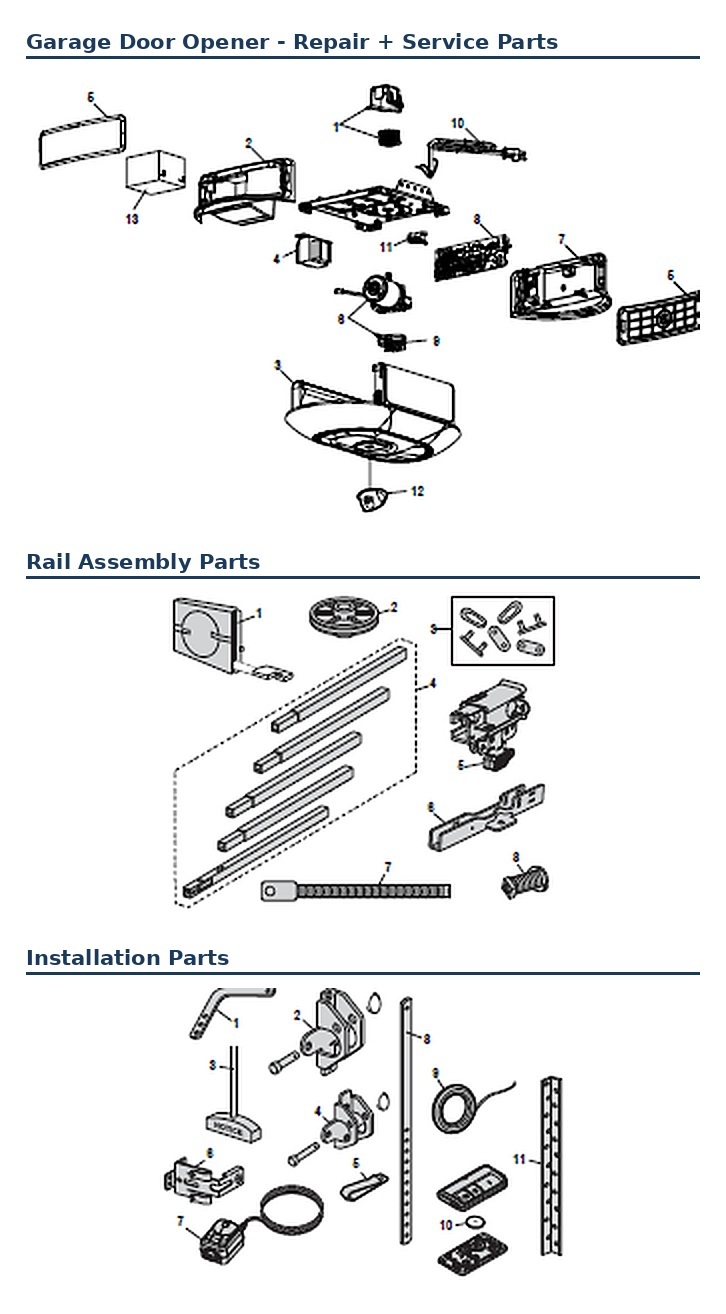

Genuine replacement parts and repair components for the Chamberlain B6753, B6753T, B6753TC and B6753TCH belt drive garage door opener with camera and battery backup. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041C1751 | Belt Cap and Sprocket Kit |
| 2 | 041-0199-000 | End Panel, Battery Access |
| 3 | 041-0200-000 | Light Pod Kit, Dual Lens, Camera Models |
| 4 | 041D0277-1 | Transformer, Wi-Fi Battery Backup |
| 5 | 041-0204-000 | Control Door Panel |
| 6 | 041-0236-000 | Motor with Travel Module, DC |
| 7 | 041-0197-000 | End Panel, No Lock |
| 8 | 050DCTBMC | Logic Board, Bluetooth Enabled |
| 9 | 041D8071-4 | Travel Module Kit, Universal DC |
| 10 | 041B4245-1 | Power Cord, 6' |
| 11 | 041A3150 | Terminal Block |
| 12 | 041-0041 | Camera with Decorative Cover |
| 13 | 4228 | Backup Battery, 12V |
| — | 041-0205-000 | Decorative Ring, Camera |
| — | 041-0180-000 | Wire Harness, Camera/LED Pod, Dual Lens |
Rail Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5250 | Belt, 7' |
| 2 | K144C0054M | Belt Idler Pulley |
| 3 | 004A1008 | Chain, #48, Master Link |
| 4 | 041A5665 | Rail Kit, 7' |
| 5 | 041C5141-2 | Square Rail Trolley Kit |
| 6 | 041D0598-1 | U Bracket Adapter |
| 7 | 041A6689 | Threaded Shaft, D-Shape |
| 8 | 041B4103 | Belt Tensioner Kit |
| — | 041A7276 | Trolley Wear Pads |
| — | K083A0011-1 | Lithium Rail Grease |
| — | 041A7920-2 | Hardware Kit |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B0035B | Curved Door Arm |
| 2 | 041A5047-1 | Door Bracket |
| 3 | 041A2828 | Emergency Manual Release Rope |
| 4 | 041A5047-2 | Header Bracket |
| 5 | K029B0137 | Remote Control Visor Clip |
| 6 | 041-0155-000 | Safety Sensor Bracket Kit |
| 7 | 041-0136 | Safety Sensor Kit |
| 8 | 4178B0034B | Straight Door Arm |
| 9 | 041B4494-1 | White/Red Bell Wire |
| 10 | K010A0020 | 3V CR2032 Lithium Battery |
