DoorKing 1602 Barrier Gate Operator Replacement Parts

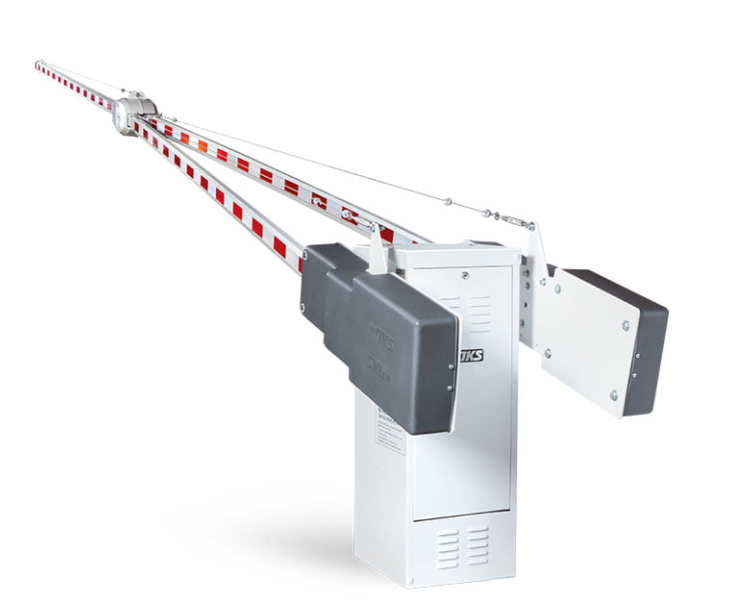

Genuine DoorKing replacement parts for the 1602 barrier gate (parking gate) operator, models 1602-090 (115V, 1 HP) and 1602-091 (with DC Convenience Open). The operator tables follow DoorKing drawing 1602-890 Rev N (December 2020) and keep DoorKing’s reference numbers so they match the drawing in your hand; within each table parts are listed in numeric part-number order. The wishbone arm kits — round, octagonal and LED edge — are further down the page. Click any part number to go to that product.

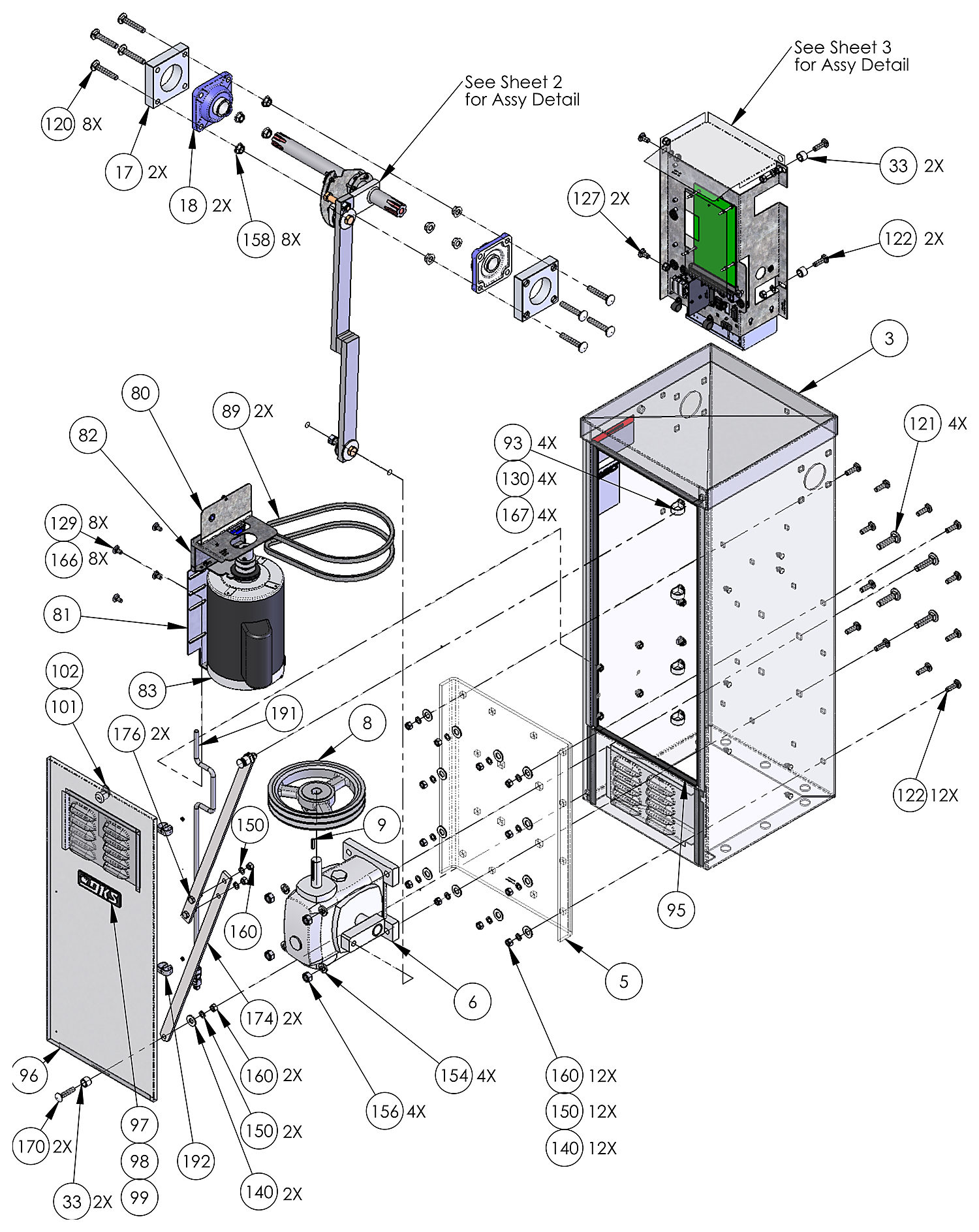

Main Assembly — Housing, Motor, Gearbox & Door

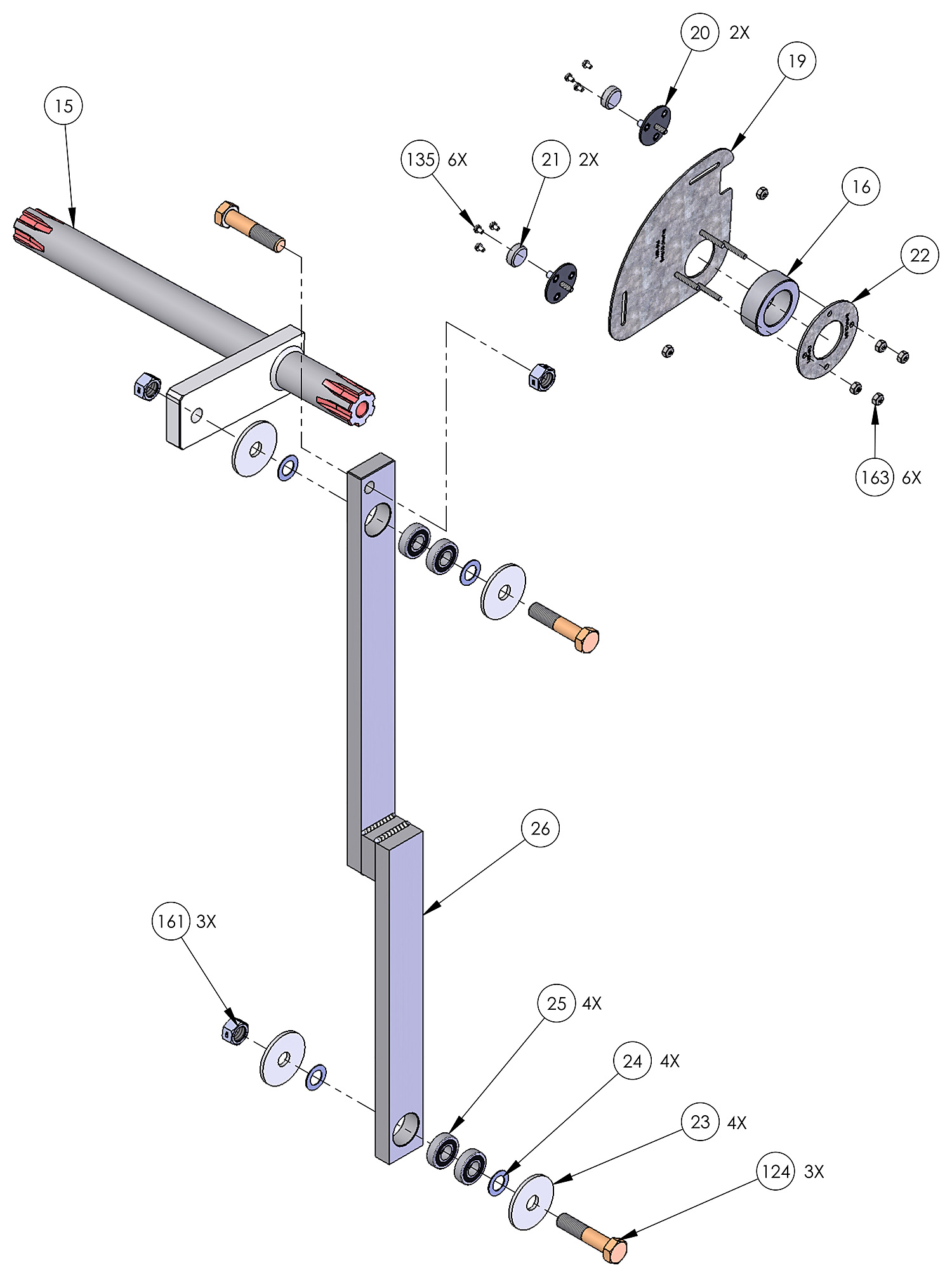

Output Shaft, Magnet Plate & Connecting Link

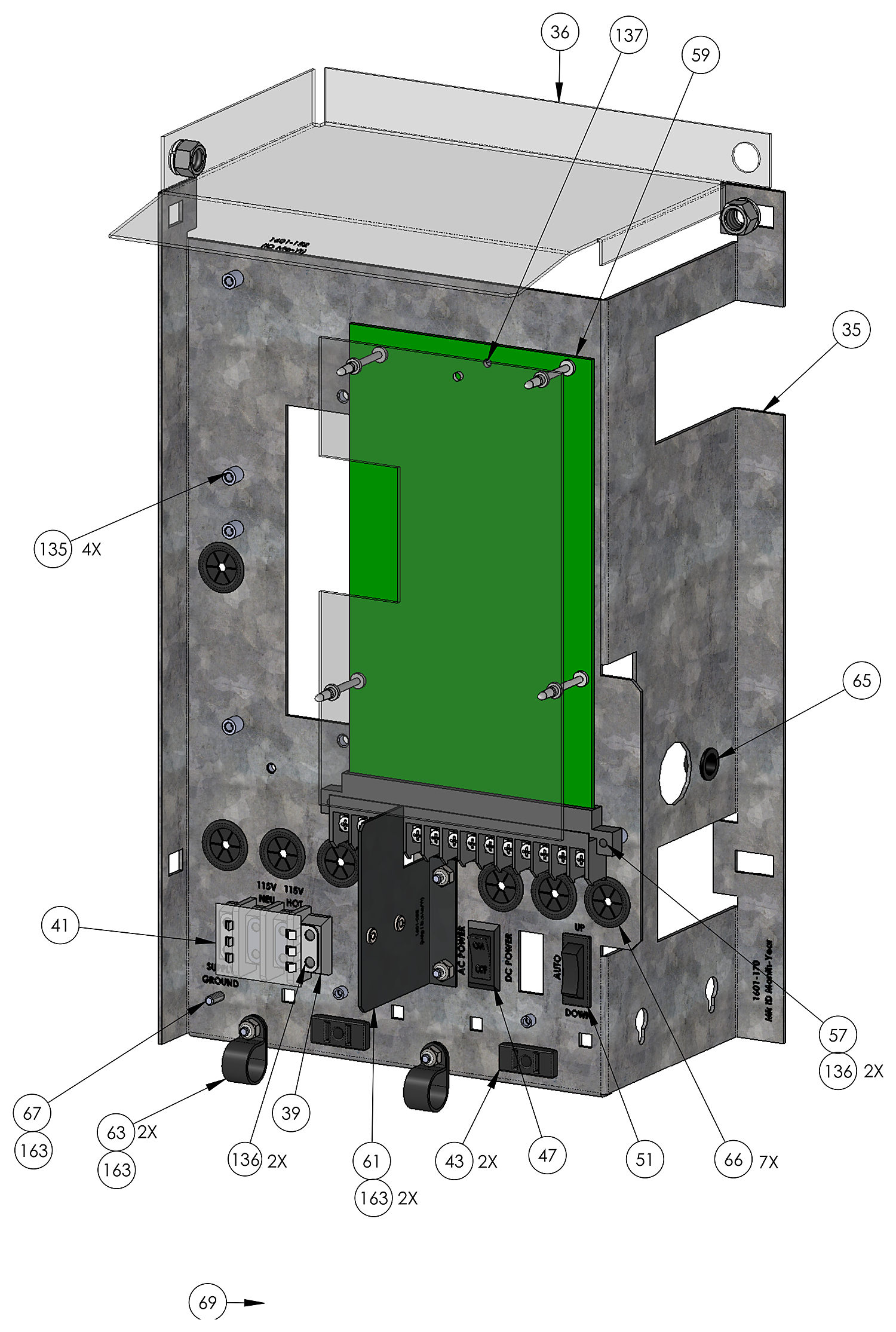

Control Panel & Circuit Board

Not Shown on the Drawing

1602 Wishbone Arm Kits

The 1602 uses a two-piece “wishbone” arm driven from both sides of the operator, balanced by counterweight plates in the two counterweight covers. Kits come in three styles and three lengths. Each table below combines the three lengths, with a quantity column for each; an em-dash means that length does not use the part. Arm-tip parts differ by length, so they appear as separate rows. A 20 ft wood wishbone arm, 1602-340, is also available (it requires the 1602-041 hardware kit).

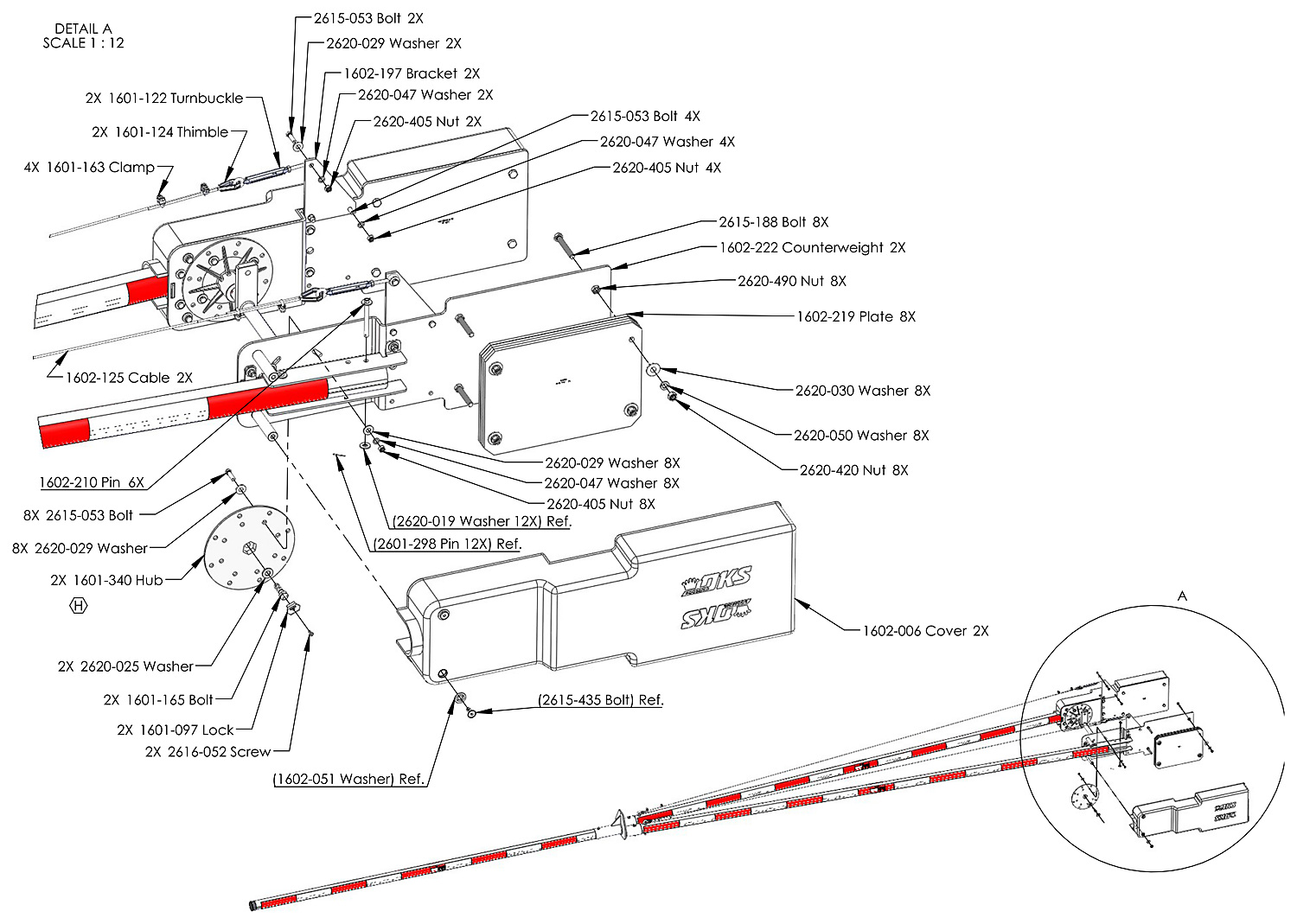

Round Wishbone Arm — 1602-162 / 1602-164 / 1602-166 (20 / 24 / 27 ft)

Counterweight End

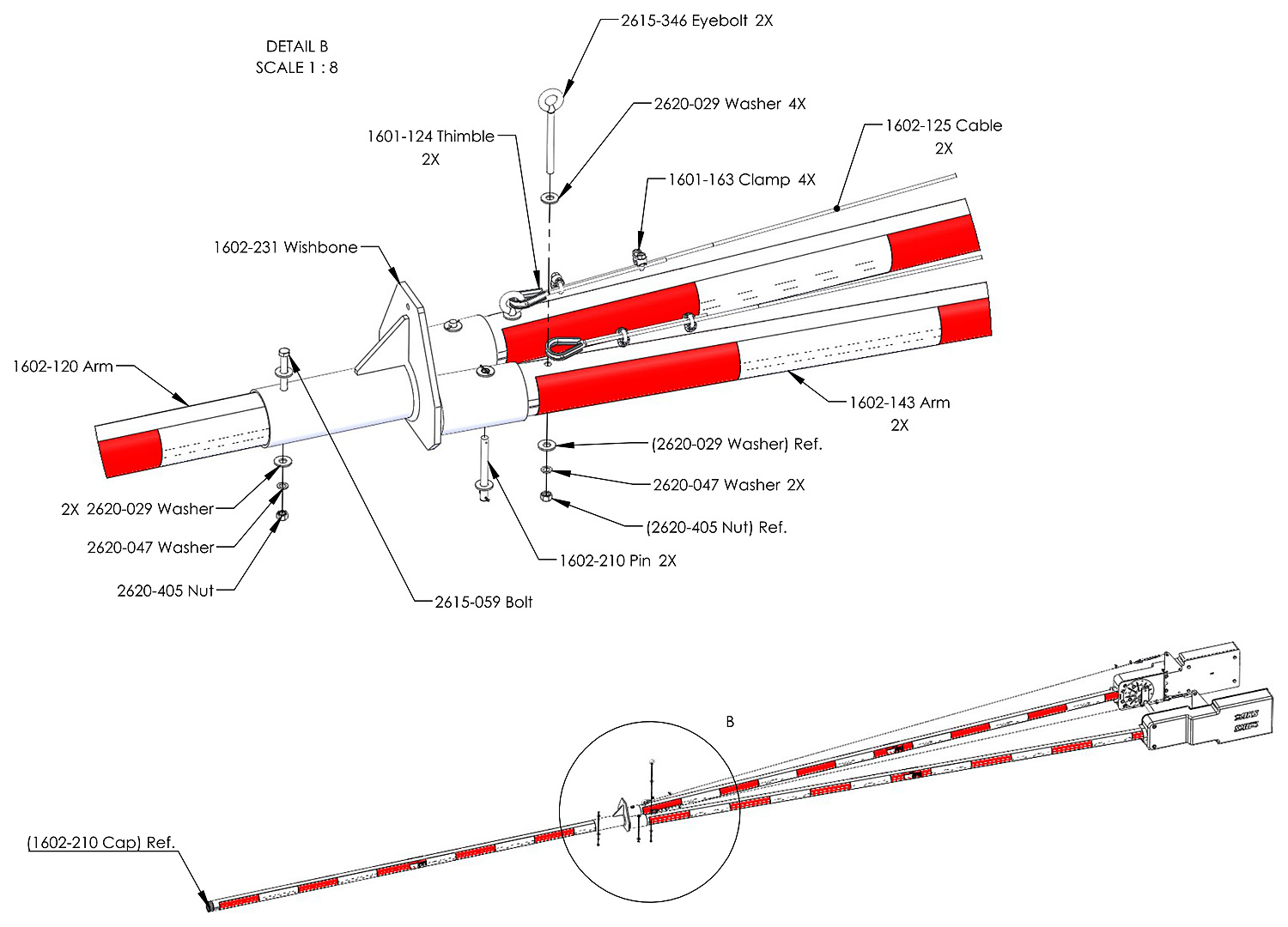

Arm Sections & Wishbone Connector

Octagonal Wishbone Arm — 1602-282 / 1602-284 / 1602-287 (20 / 24 / 27 ft)

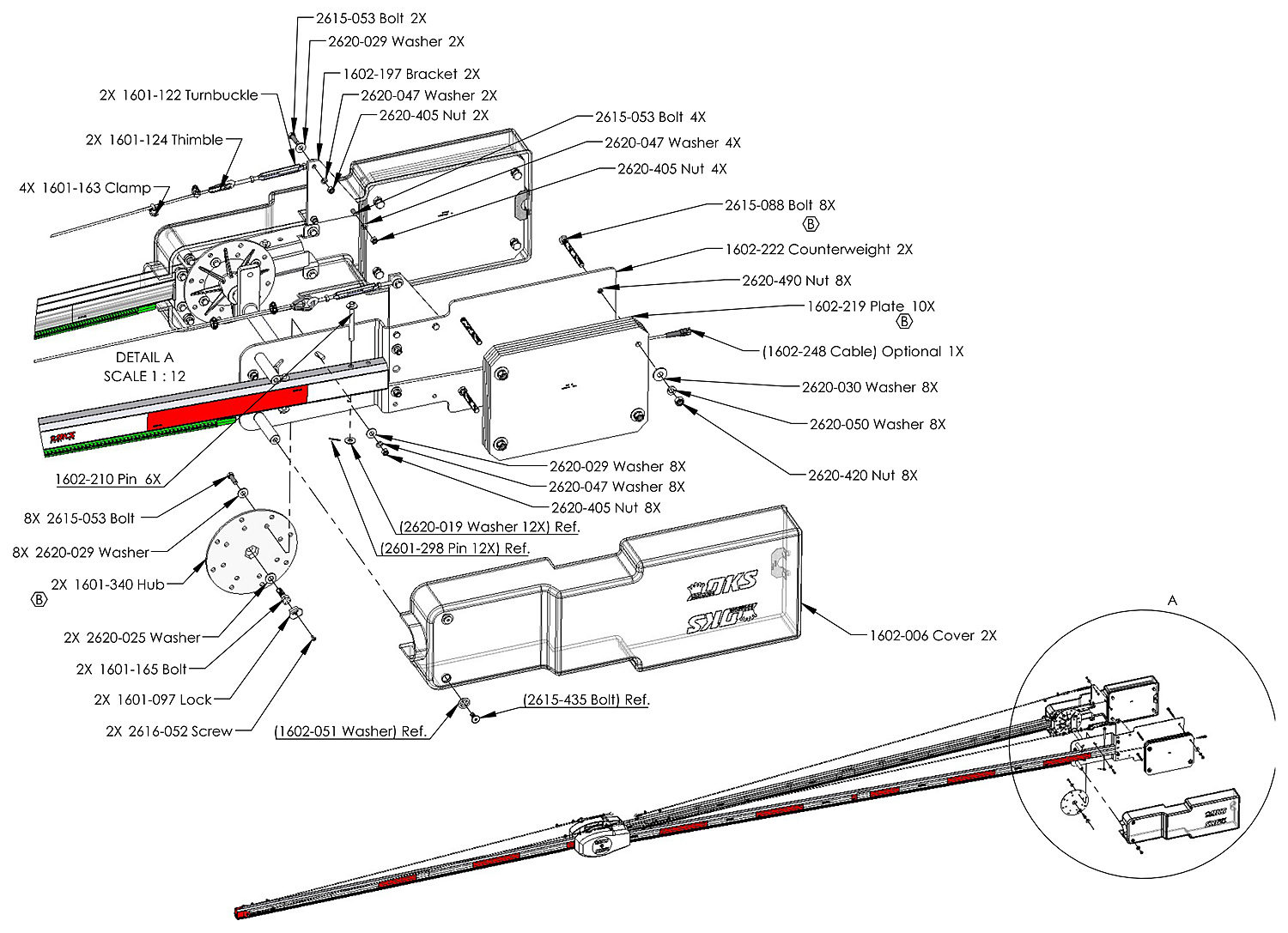

Counterweight End

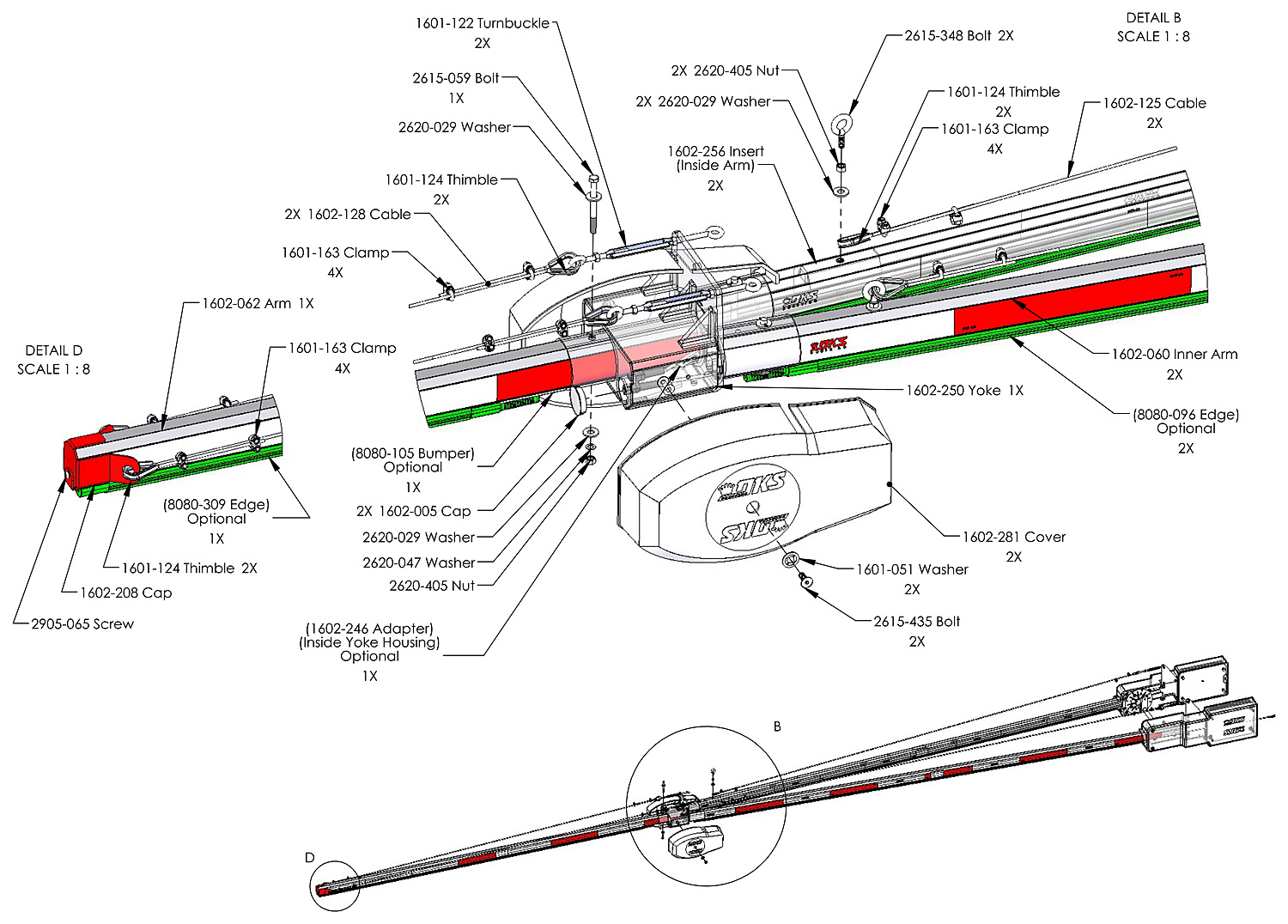

Arm Sections, Yoke & Cables

* DoorKing’s 27 ft kit list shows 1602-125 twice: four cables plus one “cable wishbone assy”. The 20 ft kit uses no red tip cap (1602-208) or tip screw.

LED Edge Octagonal Arm — 1602-292 / 1602-294 / 1602-297 (20 / 24 ft shown)

The LED edge kits add a lighted reverse edge along the arm and a transformer and harness in the operator. DoorKing’s current price book lists these kits as 1602-982 / 1602-984 / 1602-987 with identical descriptions, so they appear to have been renumbered — we stock both numbers. No drawing was published for the 27 ft kit, so only 20 and 24 ft are shown.

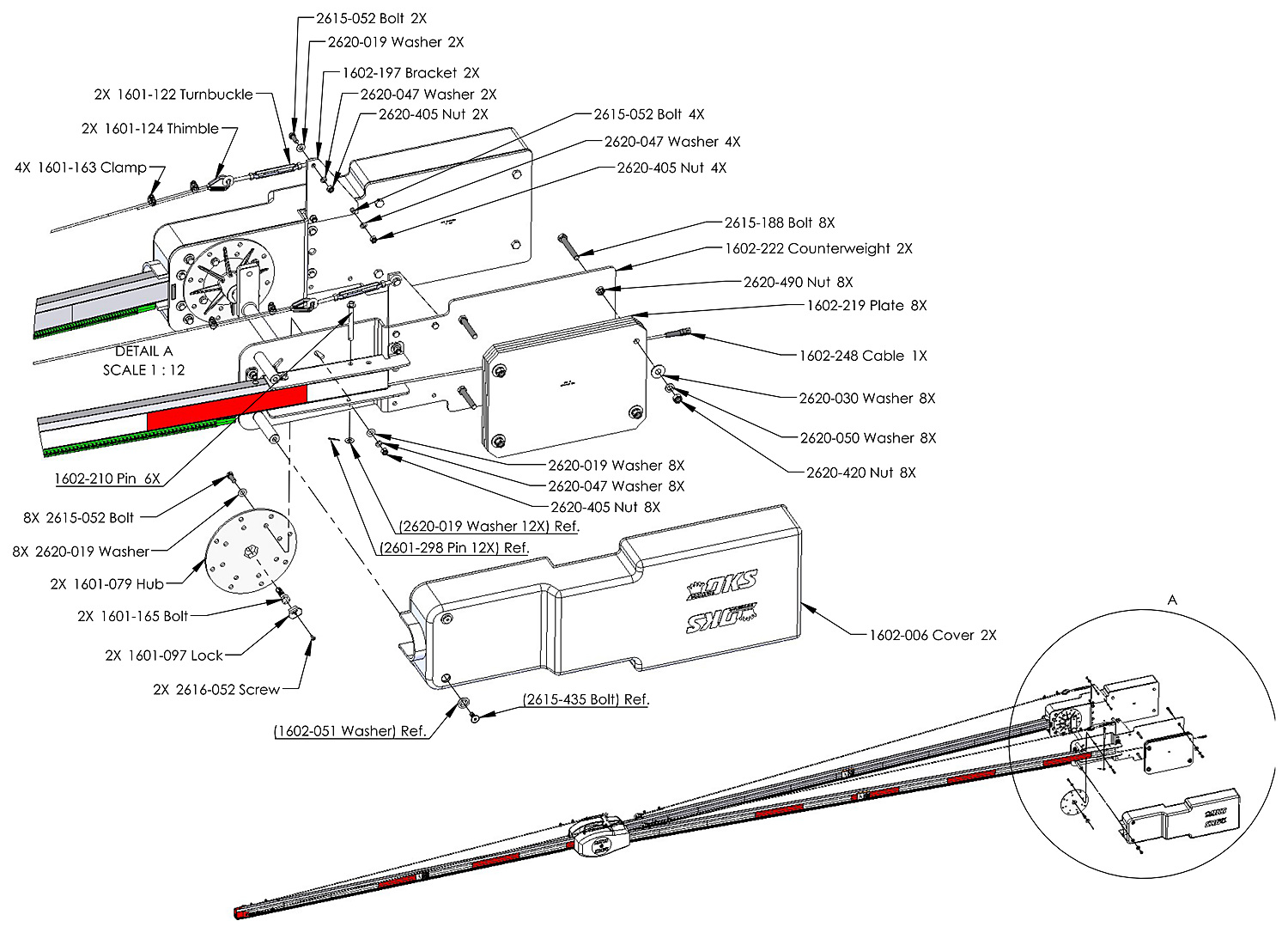

Counterweight End

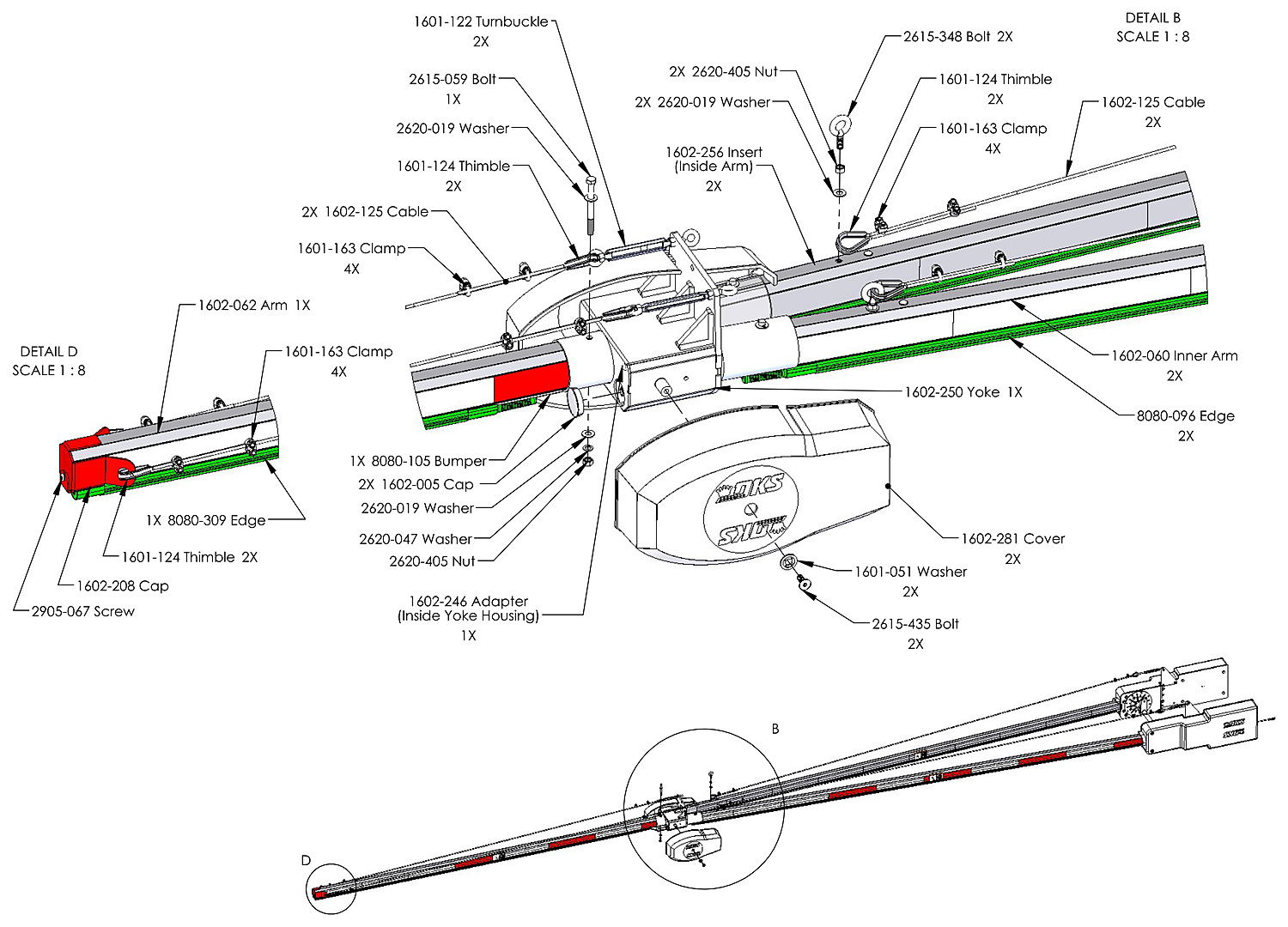

Arm Sections, Yoke & Lighted Edges

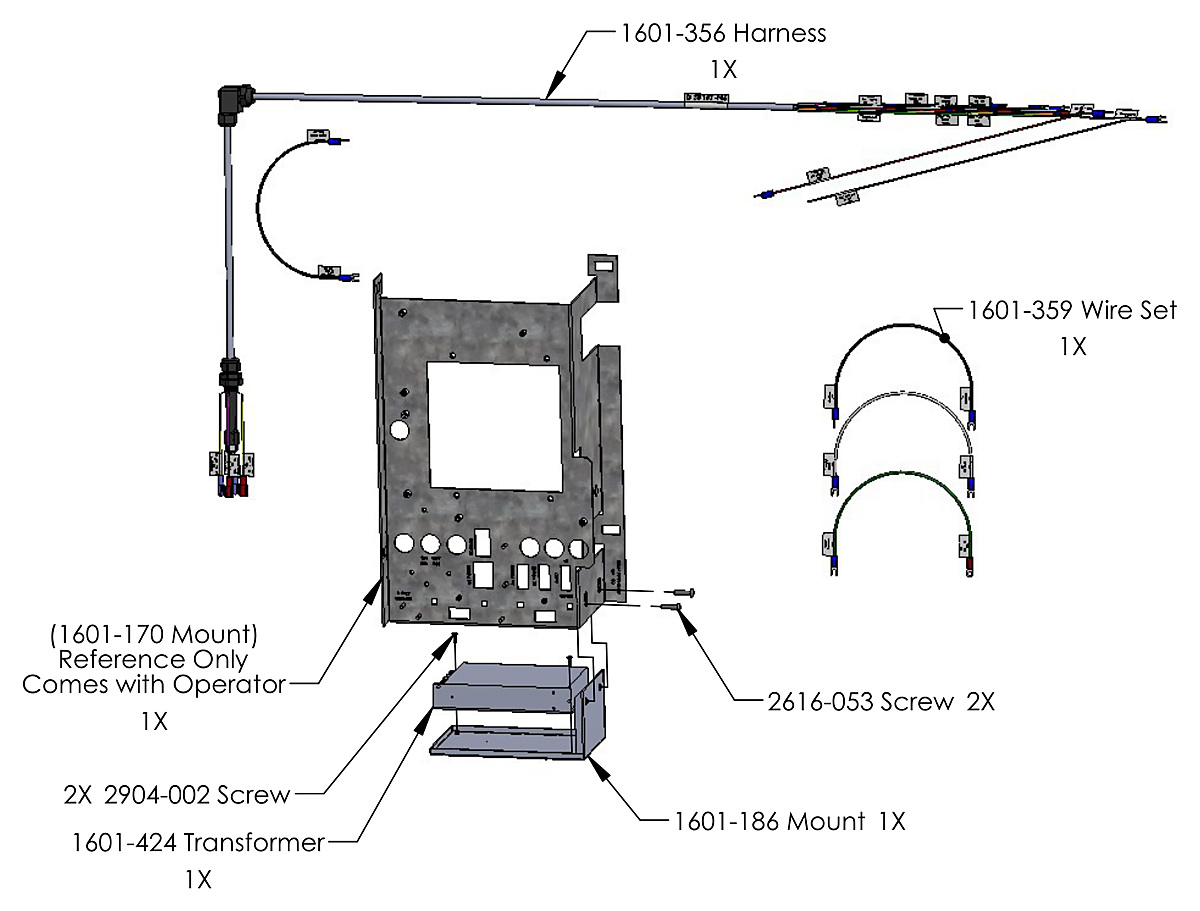

Transformer & Harness (in the operator)

The 1601-170 mounting panel shown on this drawing comes with the operator and is not part of the kit.

Other 1602 Parts We Stock

These DoorKing 1602 parts are not on the 1602-090 Rev N drawing. They are used on the battery backup 1602-091, on earlier builds, or as arm options. Match the part to the one on your unit before ordering.

Superseded Part Numbers

Older DoorKing numbers that still appear on earlier 1602 units and in older paperwork. Order the current part number.
