DoorKing 1601 Barrier Gate Operator Parts
DoorKing 1601 Barrier Gate Operator Replacement Parts

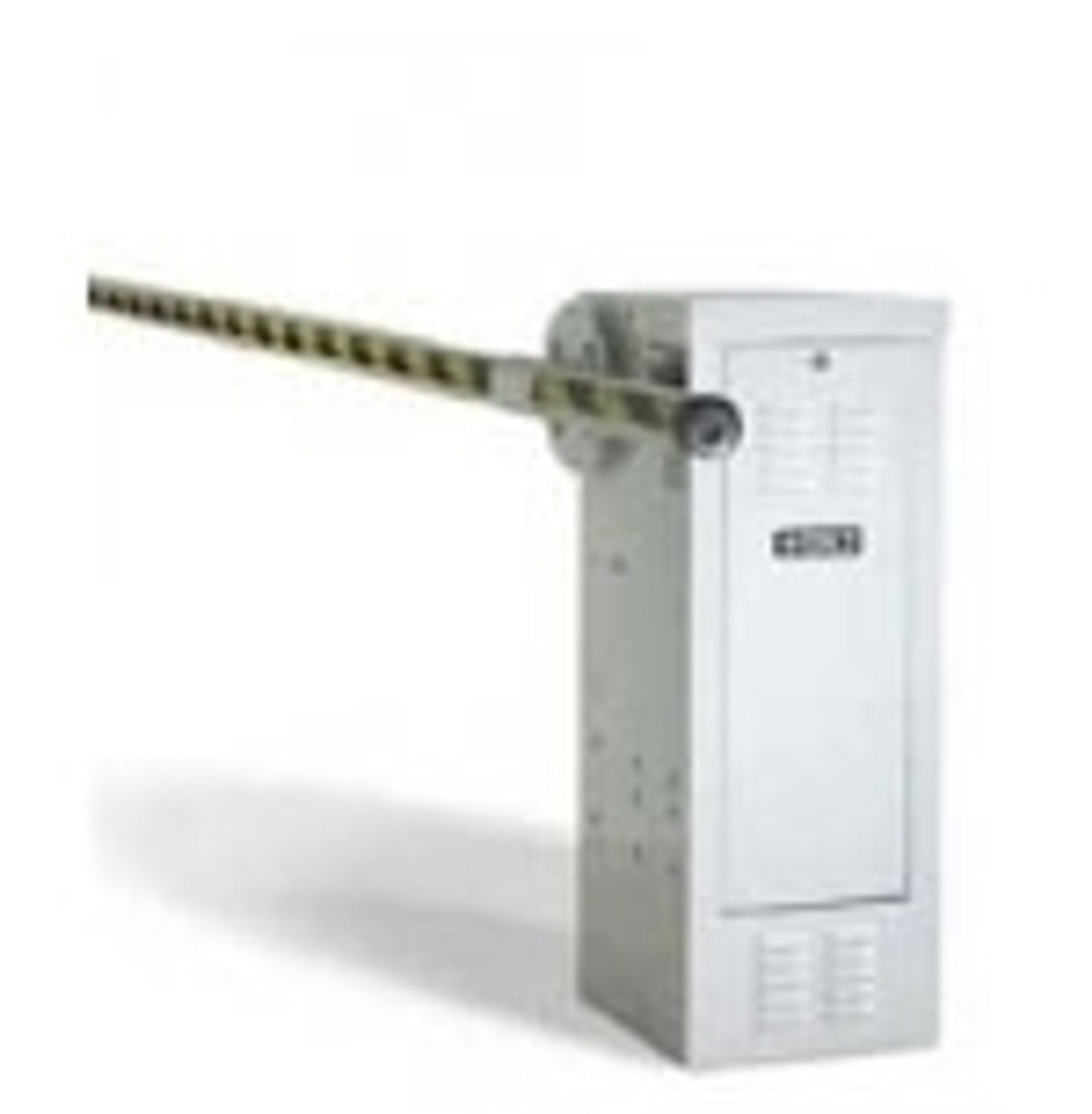

Genuine DoorKing replacement parts for the 1601 barrier gate (parking gate) operator, including models 1601-380 and 1601-381 (115V, 1/2 HP, standard housing) and 1601-480 and 1601-481 (gray housing). Use the exploded diagrams below to identify the part you need, then click any part number to go straight to that product page. Part numbers in each table are listed in numeric order.
Circuit Board — the most replaced part on the 1601
1601-010 — PCB, 1601 / 1602 Parking Gate Operator
This is the control board for the barrier gate range — one board fits the 1601, 1602 and 1603 operators. If the operator is dead after a storm, powers up but ignores every input, or the arm no longer responds to a loop or a card reader, this is the part.
Older units with the Convenience Open option: operators built before 2016 (models 1150, 1601, 1602 and 1603) use the 1473-121 DC Convenience Open replacement kit — this is the part that raises the arm when AC power has failed. It is not used on units built from 2016 onward.
Model 1601-481 uses a different housing (1603-200) and gearbox mounting plate (1601-114) than the standard units. Model 1601-480 uses the stainless steel door (1601-175) and the gray arm cover (1601-283). If you are unsure which build you have, check the model number on the data label inside the cabinet before ordering.

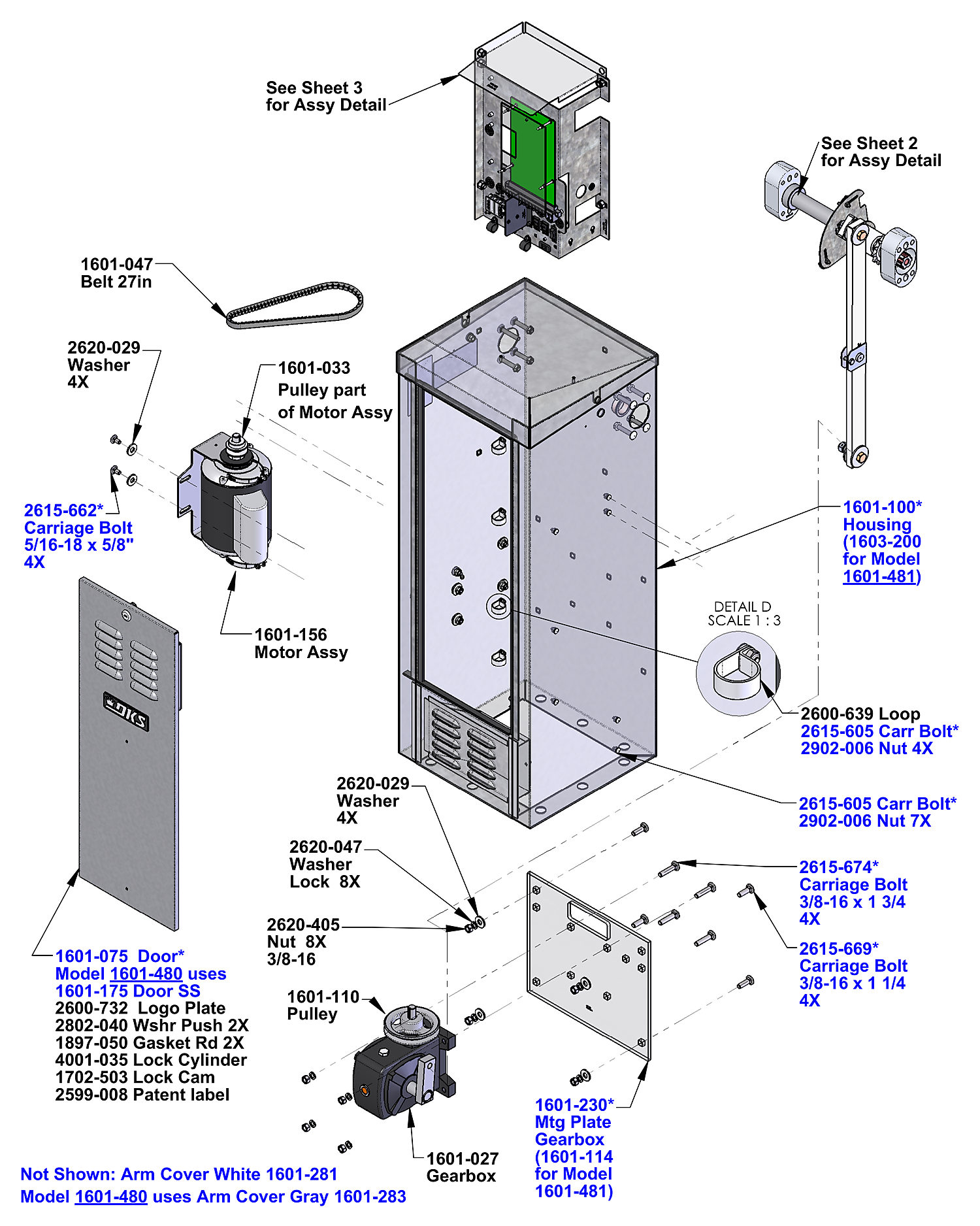

Main Assembly — Housing, Motor, Gearbox & Door
| Part Number | Description | Qty |
|---|---|---|
| 1601-027 | Gearbox | 1 |
| 1601-033 | Pulley — part of motor assembly | 1 |
| 1601-047 | Belt, 27 in. (4L270 / AX-25) | 1 |
| 1601-075 | Door — models 1601-380, 1601-381 | 1 |
| 1601-100 | Housing — models 1601-380, 1601-381 | 1 |
| 1601-110 | Pulley, gearbox (4-1/2 in. OD x 5/8 in. bore) | 1 |
| 1601-114 | Mounting plate, gearbox — model 1601-481 — not currently available from DoorKing | 1 |
| 1601-156 | Motor assembly, 1/2 HP | 1 |
| 1601-175 | Door, stainless steel — model 1601-480 — not currently available from DoorKing | 1 |
| 1601-230 | Mounting plate, gearbox | 1 |
| 1601-281 | Arm cover, white (not shown) | 1 |
| 1601-283 | Arm cover, gray — model 1601-480 (not shown) | 1 |
| 1603-200 | Housing — model 1601-481 (gray) | 1 |
| 1702-503 | Lock cam | 1 |
| 1897-050 | Round gasket | 2 |
| 2599-008 | Patent label | 1 |
| 2600-639 | Wire loop / clamp, 1 in. | 1 |
| 2600-732 | Logo plate | 1 |
| 2615-605 | Carriage bolt, 10-32 x 1/2 in. | 11 |
| 2615-662 | Carriage bolt, 5/16-18 x 5/8 in. | 4 |
| 2615-669 | Carriage bolt, 3/8-16 x 1-1/4 in. | 4 |
| 2615-674 | Carriage bolt, 3/8-16 x 1-3/4 in. | 4 |
| 2620-029 | Flat washer, 3/8 in. USS | 8 |
| 2620-047 | Lock washer, 3/8 in. | 8 |
| 2620-405 | Hex nut, 3/8-16 | 8 |
| 2802-040 | Push-on washer | 2 |
| 2902-006 | Nylon nut, 10-32 | 11 |
| 4001-035 | Lock cylinder with 2 keys | 1 |

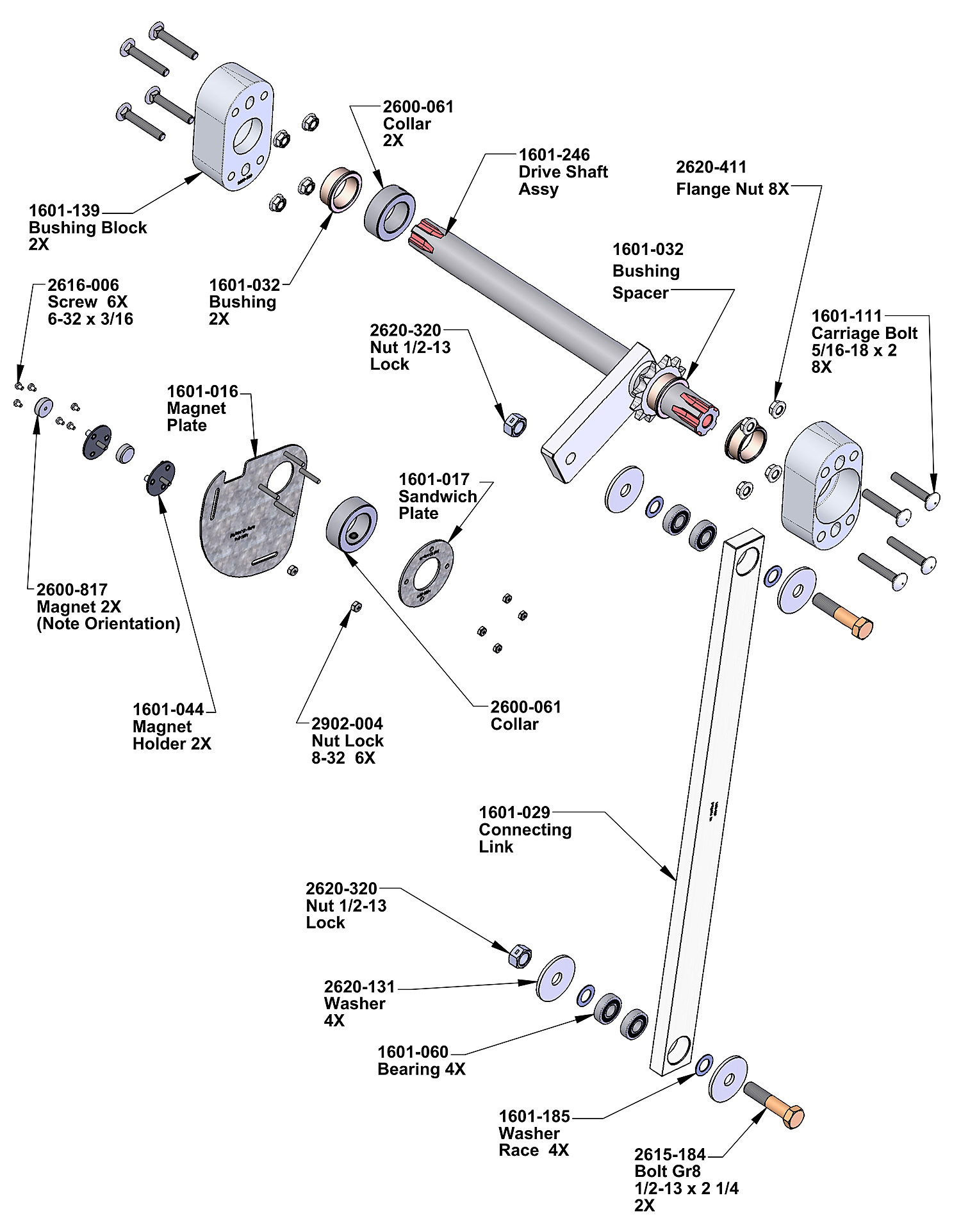

Drive Shaft & Arm Linkage Assembly
| Part Number | Description | Qty |
|---|---|---|
| 1601-016 | Magnet mounting plate | 1 |
| 1601-017 | Sandwich (collar) plate | 1 |
| 1601-029 | Connecting link | 1 |
| 1601-032 | Bushing / bushing spacer, 1-1/2 in. OD x 1-1/4 in. ID | 2 |
| 1601-044 | Magnet holder | 2 |
| 1601-060 | Sealed bearing, 1/2 in. ID x 1-1/8 in. OD | 4 |
| 1601-111 | Carriage bolt, 5/16-18 x 2 in., stainless | 8 |
| 1601-139 | Bushing block, die cast | 2 |
| 1601-185 | Race washer, .515 in. ID x .875 in. OD | 4 |
| 1601-246 | Drive shaft assembly, splined | 1 |
| 2600-061 | Collar, 2 in. OD x 1-1/4 in. ID | 4 |
| 2600-817 | Magnet (note orientation) | 2 |
| 2615-184 | Hex head bolt, Grade 8, 1/2-13 x 2-1/4 in. | 2 |
| 2616-006 | Phillips head screw, 6-32 x 3/16 in. | 6 |
| 2620-131 | Washer, 1-7/8 in. OD x 1/2 in. ID | 4 |
| 2620-320 | Center lock nut, 1/2-13 | 2 |
| 2620-411 | Hex flange lock nut, 5/16-18 | 8 |
| 2902-004 | Nylon lock nut, 8-32 | 6 |

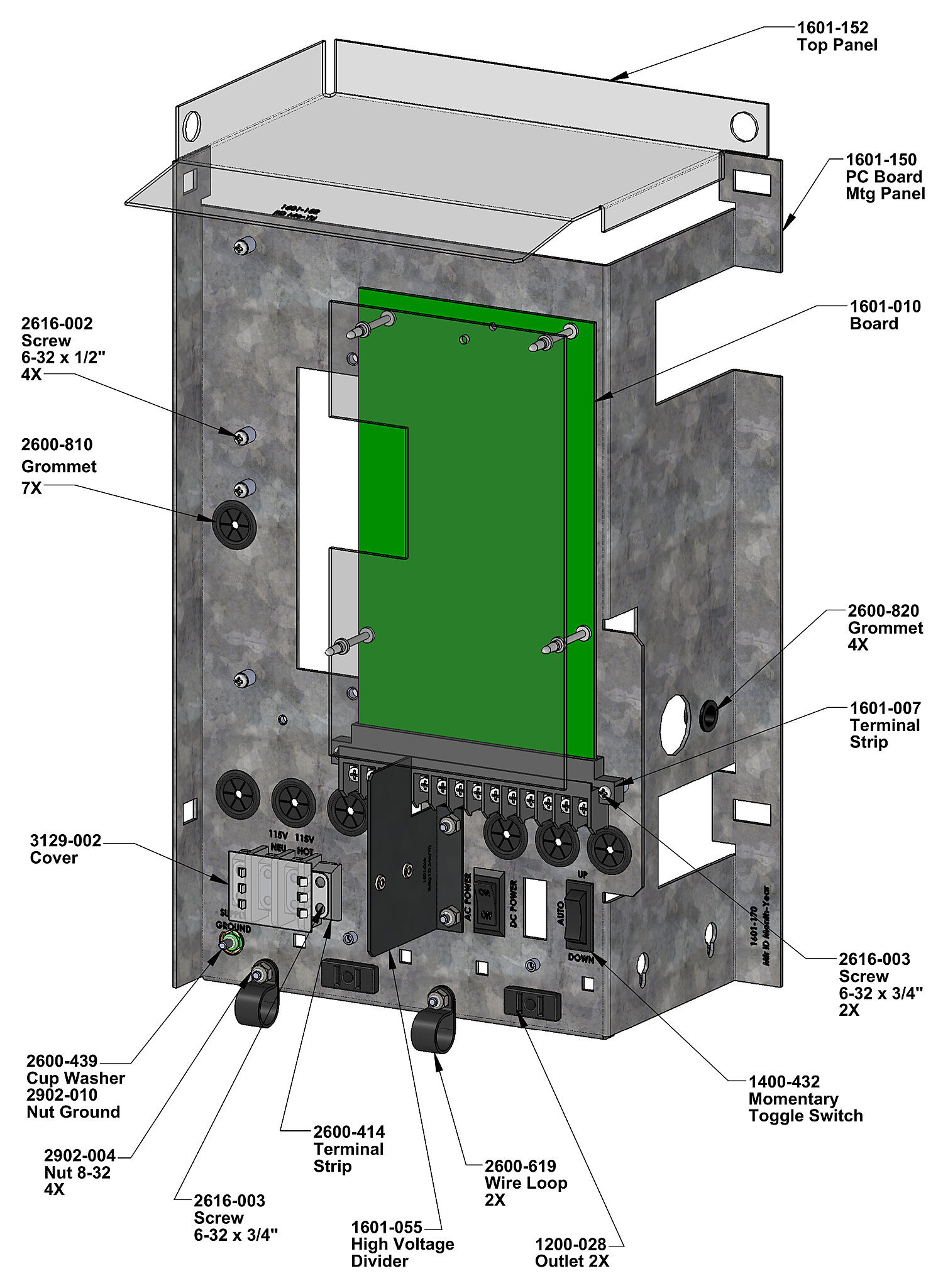

Control Board & Electrical Panel
| Part Number | Description | Qty |
|---|---|---|
| 1200-028 | Snap-in outlet (Leviton 1306) | 2 |
| 1400-432 | Momentary toggle switch — not currently available from DoorKing | 1 |
| 1601-007 | Terminal strip, 14 pin | 1 |
| 1601-010 | Circuit board, 1601 / 1602 / 1603 parking gate operator — see the panel at the top of this page | 1 |
| 1601-055 | High / low voltage divider | 1 |
| 1601-150 | PC board mounting panel — not currently available from DoorKing | 1 |
| 1601-152 | Mounting plate — PC board, top | 1 |
| 2600-414 | Terminal block, 2 position | 1 |
| 2600-439 | Cup washer, brass | 1 |
| 2600-619 | Wire clamp, 5/8 in. | 2 |
| 2600-810 | Grommet / bushing, 7/8 in. poke-thru | 7 |
| 2600-820 | Grommet / bushing, 1/2 in. | 4 |
| 2616-002 | Phillips head screw, 6-32 x 1/2 in. | 4 |
| 2616-003 | Phillips head screw, 6-32 x 3/4 in. | 3 |
| 2902-010 | Ground nut, nylon lock 8-32 green | 1 |
| 3129-002 | Terminal block cover, 2 position | 1 |
Superseded Part Numbers
These older DoorKing numbers still appear on earlier 1601 units and in older documentation. Order the current part number instead.
| Old Part Number | Current Part Number | Notes |
|---|---|---|
| 1601-215 | 1601-230 | Gearbox mounting plate |
| 1601-222 | 1601-246 | Drive shaft assembly |
| 2615-673 | 1601-111 | Carriage bolt — 2615-673 (3/8-16 x 2-1/4, 4 required) was replaced by 1601-111 (5/16-18 x 2, 8 required) |
Common 1601 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Motor runs but the arm does not move | Broken or slipping drive belt | 1601-047 belt, 1601-110 pulley |
| Arm will not stop at the correct up or down position | Magnet, magnet holder or plate out of position | 2600-817 magnets, 1601-044 holders, 1601-016 plate |
| Knocking or play in the arm through its travel | Worn linkage bearings and races | 1601-060 bearings (4), 1601-185 race washers (4) |
| Drive shaft binds or squeals at the bushing blocks | Worn bushings | 1601-032 bushings, 1601-139 blocks |
| Dead operator, no response to any input | Failed control board or terminal strip | 1601-010 board, 1601-007 terminal strip |
| Arm will not raise when AC power has failed (pre-2016 units) | Failed Convenience Open kit | 1473-121 DC Convenience Open replacement kit |
| Arm hub cracked or faded after years outdoors | UV damage to the arm cover | 1601-281 white, 1601-283 gray |
