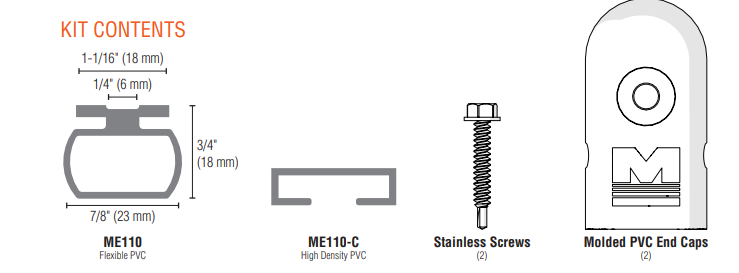

The small profile of the MG110 electric sensing edge is specially designed to protect draw-in posts, pockets, and pivot points in gate installations. When touched lightly, MG110 will send an immediate electrical signal to operator controls to stop and/or reverse gate operation. The MG110 kit includes: (1) MG110 sensing edge, (1) ME110-C mounting channel, (2) molded nylon end caps, and (2) stainless steel self-drilling mounting screws.
APPLICATIONS · Motorized gates - Slide gate draw-in posts - Pockets & pivot points - Barrier arms
FEATURES · Small profile · Easy to install · Standard and custom lengths available · Molded end caps provide a clean, finished look · Patented Alumaglas™ for superior performance (electric option) · Mounts vertically or horizontally · Sealed assembly impervious to dust and debris · UL 325 Recognized Component · 1-year warranty · Made in USA
Monitored Devices Guidelines For UL325 Listed Operators Built After August 29th, 2010 that have a Monitored Circuit
For older units Prior and other applications in most cases a Non Monitored edge is used
Please confirm with manufacture before ordering as edges are all edges are custom made and Not returnable
Monitored Sensing Edge Designator
T1 is a 8.2K Ohm Resistor Green Color Code Typically used for European Operators
T2 is a 10K Ohm Resistor Blue Color Code Typically used by the Following Manufactures
Cornell / US Gear, Liftmaster / Chamberlain, Linear, Manaras, Micanan / Napoleon Lynx,
Raynor, VE Power Door, Cookson,, Lawrence
T3 Diode Capacitor Red Color Code Used for Overhead Door Corporation units
T4 Capacitor White Color Code for Linear (Transmitter)
T5 6.8K Ohm Resistor Orange Color Code Custom Applications
T6 270K Ohm Resistor Violet Color Code Liftmaster CPS Board
