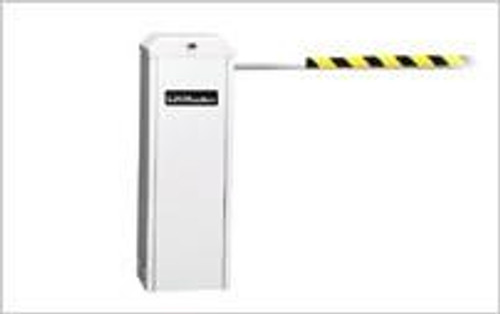

LiftMaster MADCBB3 Mega Arm — the pedestal-style 24 VDC barrier gate operator for parking lots, gated communities and industrial entrances. A 1/2 HP-equivalent DC motor opens or closes the arm in 2.5 seconds, it is rated for 6,000 cycles a day, and the two 12 V 7 Ah batteries in the cabinet keep it running through a power cut. Aluminum chassis, built-in Security+ 2.0 receiver, arms to 15 ft. Sold as the operator; arm ordered separately.
Mega Arm is being retired. LiftMaster launched the Techna barrier line in 2024 (CBG24DC replaces the MA / MAT, PBG24DC replaces the Sprint models) and distributors list the Mega Arm as being discontinued through 2026. It is still a current, supported operator with a full parts catalog, and we stock the Mega Arm parts. If you are adding to a site that already has Mega Arms, this keeps the equipment consistent; for a new site, ask us about the Techna before you order.
Specifications
| Model | MADCBB3 — Mega Arm, pedestal cabinet, DC, battery backup. Tower version MATDCBB3; high-speed Sprint versions MAS and MAST-DC-BB3 |
|---|---|
| Motor | 24 VDC, 1/2 HP equivalent, continuous duty, 800 rpm |
| Speed | 2.5 s open or close |
| Duty | 6,000 cycles per day |
| Arm | Up to 15 ft with the MA117 counterweight; 9 ft MA035RDOT, 9 ft articulating MA034RDOT, 12 ft padded MA025, 14 ft MA028, 17 ft tower arm MA116RDOT |
| Input power | 120 VAC standard; 220 / 230 VAC or Class 2 solar with the optional kits |
| Battery backup | 2 × 12 V 7 Ah, included; runs the operator and the DC control and sensing devices |
| Radio | Built-in Security+ 2.0 receiver |
| Control | Soft start / stop, inherent obstruction sensing, breakaway arm, timer-to-close, loop detector plugs, right- or left-hand |
| Rating | UL 325 Class I, II, III and IV |
| Chassis | Aluminum alloy, about 41.5 in tall, 89 lb without arm |
| Condition | Genuine LiftMaster, new. Freight item |
Mega Arm family
| Model | Style | Speed / duty |
|---|---|---|
| MADCBB3 (this page) | Pedestal cabinet | 2.5 s, 6,000 cycles/day |
| MATDCBB3 | Tower cabinet | 2.5 s, 6,000 cycles/day |
| MAS / MASDCBB3 | Mega Sprint pedestal | 0.9 s, 10,000 cycles/day, 8 ft arm |
| MAST-DC-BB3 | Mega Sprint tower | 0.9 s, 10,000 cycles/day, 8 ft arm |
| BG790 | Industrial AC wishbone | 24 ft arm, 11 s |
Common questions
Is the arm included?
No. Choose the arm for the lane width from the list above; the 15 ft and 17 ft arms need the MA117 counterweight.
Loop detectors?
The board has plug-in slots for reverse and shadow / free-exit loop detectors and takes BD Loops preformed loops. Tell us the lane and we will spec the loops with the operator.
Freight?
The operator ships on a pallet by LTL freight to a business address with a forklift or a lift-gate truck. The shipping shown at checkout is the crated freight rate.
Related
Mega Arm parts · Barrier arm operators · MATDCBB3 · MAS · BG790 · BD Loops
Planning a barrier lane? Send the lane width and traffic to parts@gatehousesupplies.com or call 866-965-5599. We would rather confirm it than have you order twice.
