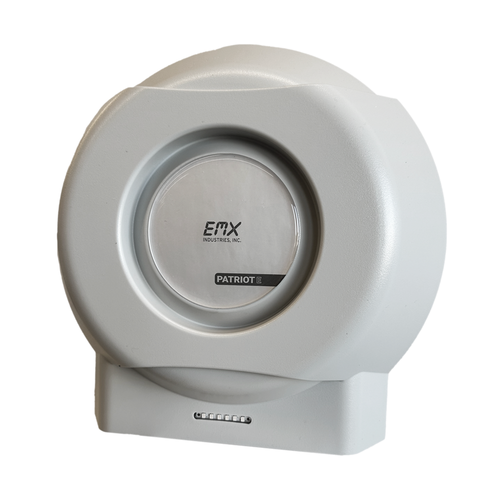

EMX PATRIOT-E.WIFI long-range UHF RFID reader. The PATRIOT-E with built-in WiFi, so the installer can set it up from a phone or laptop without running a cable. Reads windshield, headlamp and hang tags at 18–25 ft and outputs Wiegand, RS-232, OSDP or a relay contact. Stores up to 500 tags for standalone use.
WiFi is for setup. The reader runs its own WiFi access point for configuration. Change the default WiFi passcode at install.
Specifications
| Part number | PATRIOT-E.WIFI (also written PATRIOT-E-WIFI) |
|---|---|
| Brand | EMX |
| Frequency | 902–928 MHz UHF |
| Read range | 18–25 ft, adjustable (depends on tag and vehicle) |
| Antenna | Built-in, circular polarized, 7.5 dBi |
| Outputs | Wiegand, RS-232, relay contact, RS-485 / OSDP |
| Standalone memory | Up to 500 tag numbers, no separate controller needed |
| Power | 9–48 VDC; 110/240 VAC to 12 VDC power supply included |
| Enclosure | IP65, post or surface mount, 10.7 x 10.7 x 3.7 in |
| Operating temperature | -20 to +70°C |
| Tags | UHF EPC Gen2 windshield, headlamp and hang tags, including the EMX Tres900 Viper |
| Included | Reader, power supply, mounting bracket, test tag |
| Setup | WiFi (built-in access point) |
Match the reader to your tags. A long-range reader only reads the tag type it was built for. Check the tags your site already uses before ordering, and have your gate company set the reader up with your controller.
Related
PATRIOT-E (RS-232 setup) · EMX Tres900 Viper tag · all RFID gate tags
Not sure which reader fits your site? Email a photo of your current tag or reader to parts@gatehousesupplies.com and we will match it.
