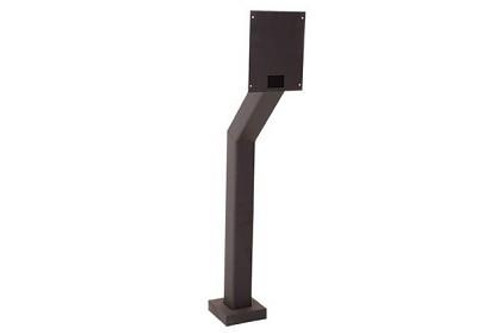

DoorKing 1200-086 Designer Mounting Post — Offset Gooseneck, Pad Mount
The offset (gooseneck) version of DoorKing's heavy-duty designer post. The head angles out about 14 in. so drivers can reach a full-case telephone entry system from the car window. You get the post with its built-in electrical compartment. The light tower, light and in-ground adapter are separate parts — see the chart below. Need a walk-up straight post instead? Order the 1200-085.
What you get
- One DoorKing designer mounting post, offset gooseneck style, 4 x 8 in. steel with pad-mount base plate
- Beveled post cap (1200-053)
- Lockable rear electrical compartment with key lock
- Four 115 VAC convenience outlets for plug-in accessory transformers
- Room for up to three surge suppressors and an RF radio receiver
- Weather stripping and DoorKing assembly hardware
Not included — order separately
- The telephone entry system itself
- Concrete anchor bolts for pad mounting
- 1200-058 in-ground adapter — only if there is no concrete pad
- 1200-087 light tower extension and 1200-150 LED light
- 1802-111 adapter plate — only for 1802, 1802-EPD or 1819 systems
- Accessory transformers, surge suppressors and radio receiver
Specifications
| DoorKing part number | 1200-086 — Mounting Post Heavy-Duty Designer Style Offset |
|---|---|
| Style | Offset gooseneck (drive-up / vehicle) |
| Construction | 4 x 8 in. (102 x 203 mm) steel |
| Height | About 49-1/2 in. (1257 mm) to the top of the mounting plate |
| Offset | Head angles out about 14 in. (356 mm) |
| Mounting | Pad mount on concrete; in-ground with 1200-058 adapter |
| Electrical compartment | Four 115 VAC outlets, space for 3 surge suppressors and an RF receiver, key lock |
| Light tower option | Accepts 1200-087 tower + 1200-150 light |
Which Entry Systems Mount on a Designer Post
- DoorKing full-case telephone entry systems: 1803, 1810, 1810AP, 1833, 1834, 1835 and 1837 mount directly on the post face.
- DoorKing 1802, 1802-EPD and 1819 need the 1802-111 adapter plate.
DoorKing Designer Post System — What Goes With What
| Part | What it is | Included with the post? | When you need it |
|---|---|---|---|
| 1200-085 | Designer post, straight pad mount (walk-up) | — | Pick ONE post |
| 1200-086 ← this item | Designer post, offset gooseneck pad mount (drive-up) | — | Pick ONE post |
| 1200-058 | In-ground adapter, 24 in. | No | No concrete pad to bolt the post to |
| 1200-087 | Light tower extension, adds 48 in. | No | You want a lighted post |
| 1200-150 | LED light assembly, 120V, dusk-to-dawn photocell | No — and not included with 1200-087 either | Required to light the 1200-087 tower |
| 1802-111 | Adapter plate for vertical-case systems | No | Mounting a 1802, 1802-EPD or 1819 |
| 1200-053 | Beveled post cap | Yes — sold here as a replacement | Lost or damaged cap |
Common setups:
- Post on an existing concrete pad: 1200-085 or 1200-086
- Post with no concrete pad: the post + 1200-058 in-ground adapter
- Lighted post: the post + 1200-087 tower + 1200-150 light (add 1200-058 if there is no pad)
Finish: DoorKing ships designer posts prime-coated black only. DoorKing says they must be finished with a high-quality outdoor paint to prevent corrosion and rust.
Not sure which pieces you need? Email a photo of the site and the entry system model to parts@gatehousesupplies.com or call 866-965-5599. More DoorKing entry products: DoorKing Commercial Phone Entry & Lobby Panels.
