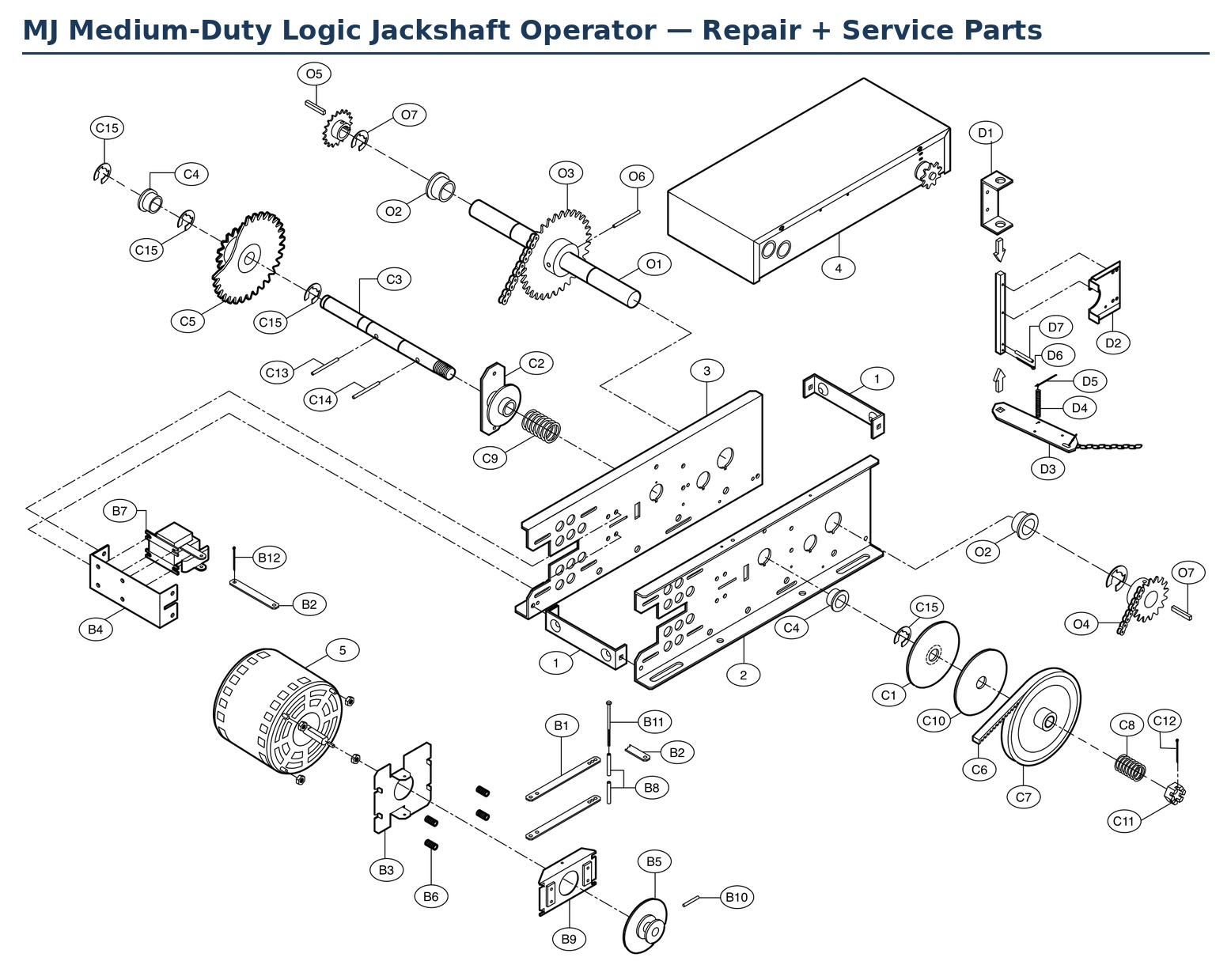

LiftMaster MJ5011 medium-duty logic jackshaft operator replacement parts diagram

LiftMaster MJ5011 Replacement Parts — Medium-Duty Logic Jackshaft Operator

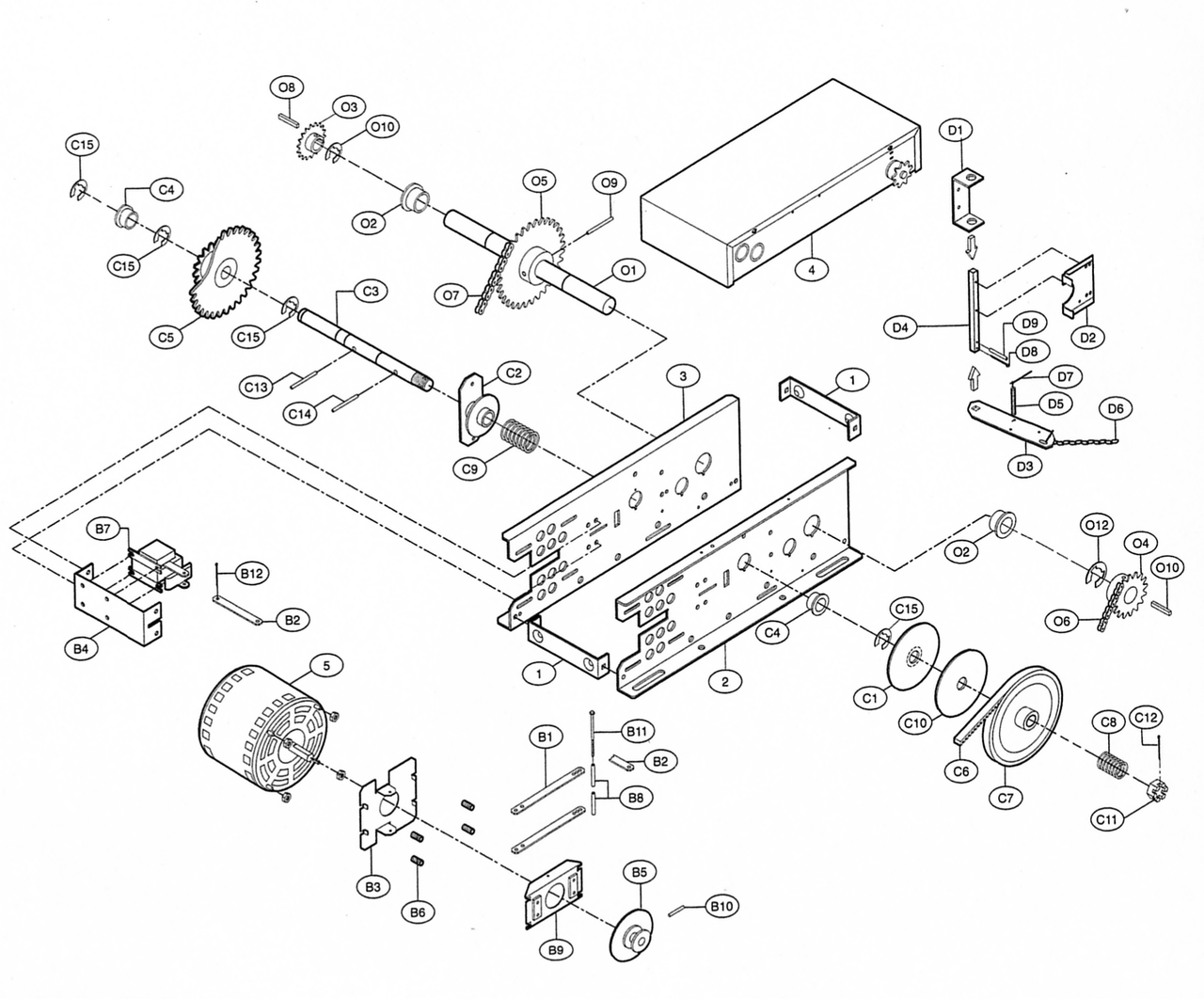

Genuine LiftMaster replacement parts for the MJ medium-duty logic jackshaft operator. The MJ5011 is the standard version — 1/2 HP, 120V, single phase. Use the exploded diagram to identify your part by its key number, then match it to the tables below. Click any part number to go straight to that item.

The MJ is built in right-hand and left-hand versions and the frames are not interchangeable, so check which side your operator mounts on before ordering frame parts. A letter after the model number tells you the rest — R or L is the hand, U or E is the logic board type. Both are on the operator’s data label. The MJ also has a floor-level disconnect assembly that the MT and BMT do not; those parts are the D group below.

Models Covered

MJ5011 (1/2 HP, 120V, 1PH — most common), MJ5025 (230V) — also sold as MJ5011U, MJ5011R and MJ5011L

Replacement Parts

Ref Part # Description
1 K75-10030 Frame Spacer Kit
2 K10-10713M1 Frame, Right Hand
3 K10-10714M1 Frame, Left Hand
4 K-MJ5011 E-Box — MJ5011
4 K-MJ5025 E-Box, 230V — MJ5025
5 K20-5150-LD-1 Motor, 1/2 HP, 120V — MJ5011
5 K20-5250-LD Motor, 1/2 HP, 220V, 1PH, BM — MJ5025

Service Kits

The motor’s part number is printed on the motor’s own data label. If you can reach it, read the number straight off the label and match it above — that is the most reliable way to order the right motor.

Ref Part # Description
B K75-12492 Brake Solenoid, 115V
B K75-12494 Brake Solenoid, 120V
B1 10-10354 Brake Release Arm
B2 K10-10355 Solenoid Link
B3 10-10356 Brake Mounting Plate
B4 K10-10357 Solenoid Bracket, 120V
B5 K17-10363 Pulley, 1-5/8" OD, 1/2" B, 4L Belt
B6 18-10716 Compression Spring

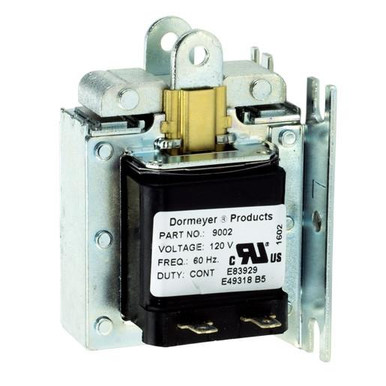

B7 K22-120 Brake Solenoid, 120V

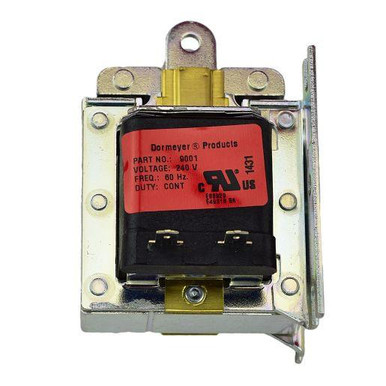

B7 K22-240 Brake Solenoid, 240V
B8 K31-10726 Spacer
B9 K75-10359 Brake Mounting Plate
B10 82-NH25-03 Screw, 1/4"-20 x 12
B11 K82-PX10-28 Screw, 10" 32 x 28
B12 K86-CP05-108 Cotter Pin, 5/32" x 1-1/2"
C K72-33889 Clutch Shaft Kit

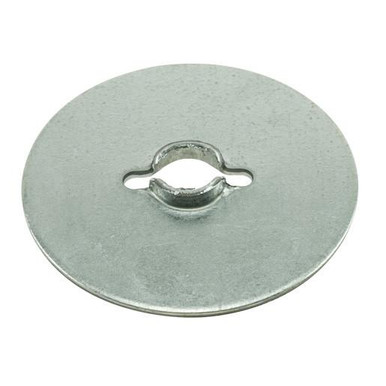

C1 K10-10166 Clutch Plate
C2 K75-10722 Disconnect Plate
C3 K11-10706 Clutch Shaft
C4 K12-10029 Flange Bearing, 3/4" x 1-1/4" x 5/8"
C5 K15-10717 Dual Sprocket, 48B10/41A24
C6 K16-4L290 V Belt, 4L290
C7 K17-10336 Pulley, 7" OD, 3/4" B, 4L Belt
C8 K18-10164 Clutch Spring, 1/3 HP, 1/2 HP
C9 K18-10711 Disconnect Spring
C10 K39-10167 Clutch Disc
C11 K84-SH-76 Hex Nut, 3/4" x 16
C12 K86-CP05-108 Cotter Pin, 5/32" x 1-1/2"
C13 K-SPSHORT Roll Pin, 1/4" x 1-1/2", Qty 10
C14 K86-RP08-200 Roll Pin, 1/4" x 2"
C15 K158A0053 Push Ring
D K75-12587 Disconnect Kit, MJ
D1 10-10707 Disconnect Support Bracket
D2 K10-10708 Yoke, H
D3 K10-10709 Disconnect Lever, MJ
D4 K18-10718 Tension Spring
D5 K86-CP04-112 Cotter Pin, 1/8" x 1-3/4"
D6 K86-CP05-108 Cotter Pin, 5/32" x 1-1/2"
D7 K86-RP04-100 Roll Pin, 1/8" x 1"
O K72-33962 Output Shaft and Sprocket
O1 K11-10705 Output Shaft
O2 K12-10715 Flange Bearing, 1"
O3 15-48B32LXX Sprocket, 48B32T, 1" B
O4 19-48027M Chain, #48 x 27, with ML
O5 80-207-19 Key, 1/4" x 1/4" x 1-1/2"
O6 K86-RP10-200 Roll Pin, 1/4" x 2"
O7 K158A0056 Snap Ring

Electrical box parts. The MJ was built with the shared medium-duty logic control box and, on earlier mechanical units, the medium-duty mechanical box. Both are the same enclosures fitted to the MT, BMT and MH.

LiftMaster medium-duty logic control electrical box parts diagram for MJ, MT, BMT, MH, MHS and MGJ

Electrical Box — Logic Control

Ref Part # Description
1 K13-10024 Limit Nut
2 K23-10041 Limit Switch, SPDT, 10A, 125/250VAC
3 K29-10338 Motor Capacitor, 70MFD, 50/60Hz, 230V
4 K10-33850 E-Box Cover — MH, MJ, MT
K75-36237 Medium Duty Stiffener Kit
K1 K72-33872-1 Limit Switch Shaft and Sprocket
K1 K72-33872-2 Limit Switch Shaft Kit
K2 K72-12493 Limit Switch Kit
K3 K94-33961 Wire Harness Kit — MT, MJ, MH
K4 K001A6424 Logic Board, Medium Duty, U, 315MHz
K4 K001A6424-1 Logic Board, Medium Duty, U, 390MHz
K4 K001A6424-2 Logic Board, Medium Duty, E, 315MHz
K4 K001A6424-3 Logic Board, Medium Duty, E, 390MHz
K5 K74-31243 MOV Kit, L5, 1PH/3PH
LiftMaster medium-duty mechanical operator electrical box parts diagram for MJ, MT, BMT and MH

Electrical Box — Mechanical Operators

Ref Part # Description
1 K10-10315M1 E-Box
2 10-10316M E-Box Cover
3 K23-10916 Interlock Switch, 125/250VAC, 15A, SPDT
4 K29-2 Resistor, 25W, 10%, 2 Ohm
5 K42-10040 Terminal Block, 3 Position
6 K42-110 Terminal Block, 10 Position, 600V, 30A
7 K71-10345 RPM Sensor Board
8 K74-10352 RPM Sensor Board Harness
9 K21-10340 Transformer, 115V, 24VAC, 20VA
9 K21-5230 Transformer, 208/240V, 24VAC, 40VA
10 K24-24-1 Relay, 24V, 10A
10 K24-24-6 Relay, 3PDT, 24V, 10A
11 K29-10338 Motor Capacitor, 70MFD, 50/60Hz, 230V
11 K29-12110 Capacitor, 20UF, 230V
11 K80-10027 Logic Board Standoff
K31-10350 RPM Board Standoffs, Qty 6
K75-12489 Logic Board, Auto Reversal
L K72-12487 Limit Shaft Kit
L1 K11-10321 Limit Shaft
L2 K13-10024 Limit Nut
S1 K23-10041 Limit Switch, SPDT, 10A, 125/250VAC
