LiftMaster HMJ5011 Replacement Parts — Hoist & Jackshaft Operator

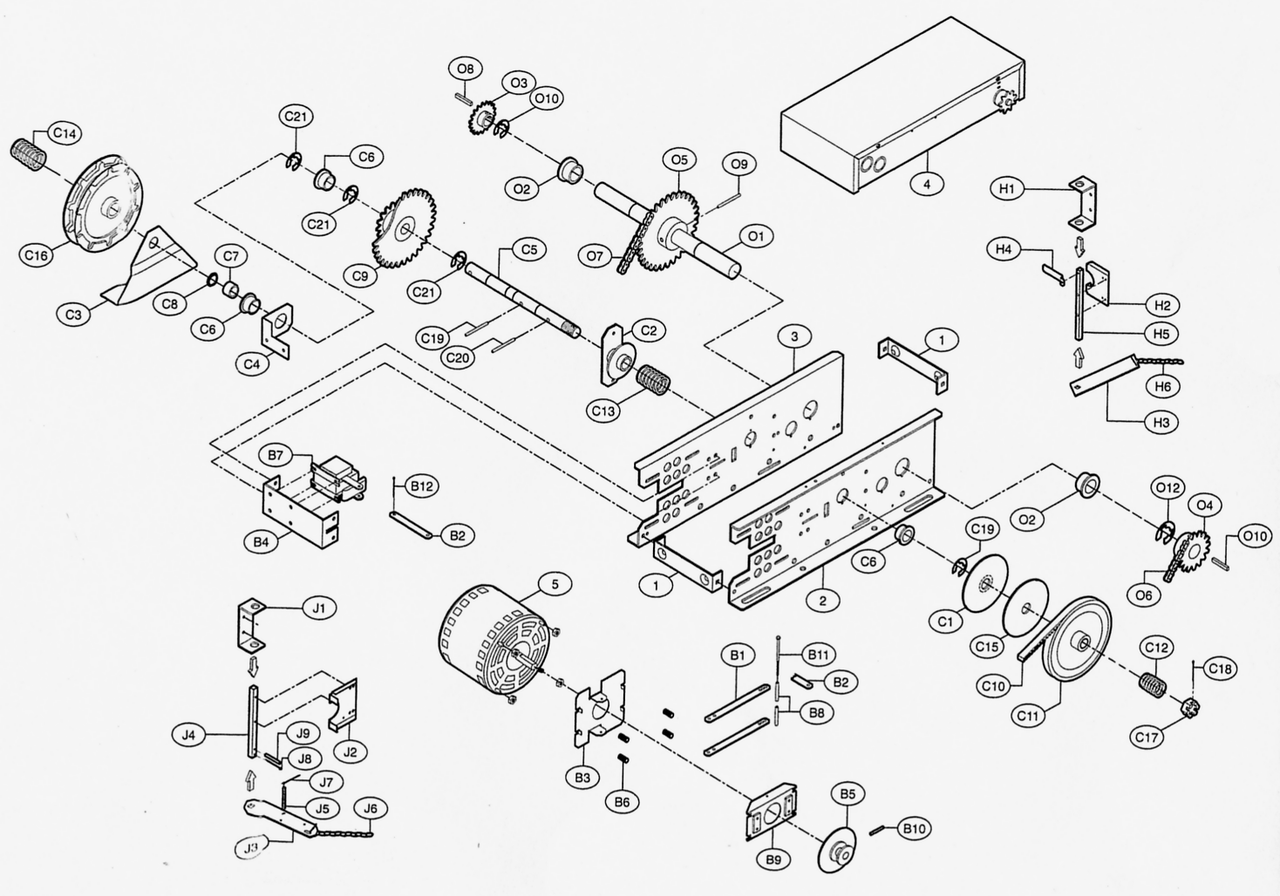

Genuine LiftMaster replacement parts for the HMJ medium-duty commercial door operator. The HMJ combines a hoist and a jackshaft disconnect on one machine, which is why the diagram carries two separate disconnect groups — the H group and the J group. Check which one your operator has before ordering; they share no parts.
Your model number is on the operator's data label. HMJ5011R is right-hand mount and HMJ5011L is left-hand — the electrical box differs between them. Parts marked no longer available have been discontinued by the manufacturer and are listed for identification only.
Models Covered
HMJ5011R (1/2 HP, 115V, right hand) · HMJ5011L (1/2 HP, 115V, left hand)
Main Assembly
| Ref |
Part # |
Description |
| 1 |
10-10030 |
Frame Spacer (no longer available) |
| 2 |
10-10713 |
Frame, Right Side |
| 3 |
10-10714 |
Frame, Left Side (K10-10714M1) |
| 4 |
K-HMJ5011R |
Electrical Box — HMJ5011R, 115V RH (no longer available) |
| 4 |
K-HMJ5011L |
Electrical Box — HMJ5011L, 115V LH (no longer available) |
| 5 |
K20-5150LD |
Motor, 1/2 HP 115V (K20-5150-LD-1) |
| 5 |
K20-5250LD |
Motor, 1/2 HP 230V |
| 6 |
19-48027M |
Chain, #48 x 27 links with master link |
| — |
10-12360M1 |
Mounting bracket, hood |
| — |
10-9095 |
Mounting bracket — MTG, MJ, MH |
| — |
144B32 |
Pulley (K144B0032) |
| — |
15-41B16LGH |
Sprocket, 41B16T, 1.0" bore |
| — |
80-10022 |
Shim Washer, thin (no longer available) |
Output Shaft — O Group
| Ref |
Part # |
Description |
| O1 |
11-10705 |
Output Shaft (K11-10705) |
| O2 |
12-10715 |
Flange Bearing, 1" ID (K12-10715) |
| O3 |
15-41B14LGH |
Sprocket, #41B14 x 1" bore |
| O4 |
15-48B18LGE |
Sprocket, #48B18 x 1" bore |
| O5 |
K15-48B32LXX |
Sprocket, #48B32 x 1" (no longer available) |
| O8 |
80-207-19 |
Key, 1/4" x 1-1/2" |
| O9 |
K86-RP10-200 |
Roll Pin, 5/16" x 2" |
| O10 |
87-E-100 |
E-Ring, 1" plated (K158A0056) |
| — |
K72-12592 |
Output Shaft Kit — complete assembly (K72-33962) |
Clutch & Chain Wheel — C Group
| Ref |
Part # |
Description |
| C1 |
K10-10166 |
Clutch Plate |
| C2 |
10-10712 |
Disconnect Plate (K75-10722) |
| C4 |
10-10985 |
Release Holder |
| C5 |
11-10706 |
Clutch Shaft |
| C6 |
12-10029 |
Bearing, 3/4" ID (K12-10029) |
| C7 |
12-10882 |
Bushing, .753 ID x .625 (K12-10882) |
| C8 |
12-10883 |
Nyliner Bearing (K12-10883) |
| C9 |
15-10717 |
Sprocket Assembly, 48B10/41A24 (K15-10717) |
| C10 |
16-4L290 |
Belt, cogged (AX27) |
| C11 |
17-10336 |
Pulley, 4L 7" OD (K17-10336) |
| C12 |
18-10164 |
Clutch Spring (K18-10164) |
| C13 |
18-10711 |
Disconnect Spring |
| C15 |
K39-10167 |
Clutch Disc |
| C16 |
75-10884 |
Chain Wheel Assembly (K72-12789) |
| C17 |
84-SH-76 |
Castle Nut, 3/4-16 (K84-SH-76) |
| C18 |
86-CP05-108 |
Cotter Pin, 5/32" x 1-1/2" |
| C19 |
86-RP08-102 |
Roll Pin, 1/4" x 1-1/8" (K-SPSHORT) |
| C20 |
86-RP08-200 |
Roll Pin, 1/4" x 2" (K86-RP08-200) |
| C21 |
158A53 |
E-Ring, 3/4" plated (K158A0053) |
| — |
K72-12591 |
Clutch Shaft Kit — complete assembly |
Brake — B Group
| Ref |
Part # |
Description |
| B1 |
10-10354 |
Brake Release Arm (no longer available) |
| B3 |
10-10356 |
Brake Mounting Plate |
| B4 |
10-10357 |
Solenoid Bracket |
| B5 |
17-10363 |
Pulley & Disc Assembly (K17-10363) |
| B7 |
K22-120 |
Brake Solenoid, 120V |
| B7 |
22-240 |
Brake Solenoid, 230V (K22-240) |
| B8 |
31-10364 |
Spacer, .20 ID x .260 OD x 1" |
| B9 |
75-10359 |
Brake Pad (K75-10359) |
| B10 |
82-NH25-03 |
1/4-20 x 3" Socket Head Screw (no longer available) |
| B11 |
K82-PX10-28 |
Pan Head Screw, 10-32 x 3" ZP |
| B12 |
86-CP05-108 |
Cotter Pin, 5/32" x 1-1/2" |
| — |
K75-12492 |
Brake Kit, 115V — complete |
| — |
K75-12494 |
Brake Kit, 230V — complete |
| — |
K22-13028-1 |
Brake Solenoid, 24V |
Hoist Disconnect — H Group
| Ref |
Part # |
Description |
| H1 |
10-10707 |
Disconnect Support Bracket |
| H2 |
10-10708 |
Yoke |
| H3 |
10-10875 |
Disconnect Lever (no longer available) |
| H4 |
10-10988 |
Interlock Switch Actuator (now K72-12588) |
| H5 |
11-10982 |
Disconnect Shaft |
| H6 |
19-8A-12 |
Sash Chain, 12 ft (71-199010) |
| — |
K75-12588 |
Hoist Disconnect Service Kit — complete |
Jackshaft Disconnect — J Group
| Ref |
Part # |
Description |
| J1 |
10-10707 |
Disconnect Support Bracket |
| J2 |
10-10708 |
Yoke |
| J3 |
10-10709 |
Disconnect Lever |
| J4 |
11-10710 |
Disconnect Shaft (no longer available) |
| J5 |
18-10178 |
Tension Spring (no longer available) |
| J6 |
19-8A-12 |
Sash Chain, 12 ft (71-199010) |
| J7 |
86-CP04-112 |
Cotter Pin, 1/8" x 1-3/4" ZP |
| J8 |
86-CP05-108 |
Cotter Pin, 5/32" x 1-1/2" |
| J9 |
86-RP04-100 |
Roll Pin, 1/8" x 1" (K86-RP04-100) |
| — |
K75-12587 |
Jackshaft Disconnect Service Kit — complete |
Safety Sensors & Accessories
| Part # |
Description |
| CPS-U |
Commercial photo eye |
| CPSUN4G |
Monitored through-beam photo eyes |
| CPS |
Safety eye sensors — mechanical operators |
| CPS-UN4 |
Safety eye sensors — commercial doors |
| K77-16011 |
Mounting hardware, CPS N4 |
| 65-5302 |
Pneumatic sensing edge, 22 ft, with take-up reel |
| CPICARD |
CPI interface box |
| LC-36A |
Safety eye sensors (no longer available) |
