MHS5011 Medium-Duty Hoist Operator Parts

LiftMaster MHS5011 Replacement Parts — Medium-Duty Hoist Operator

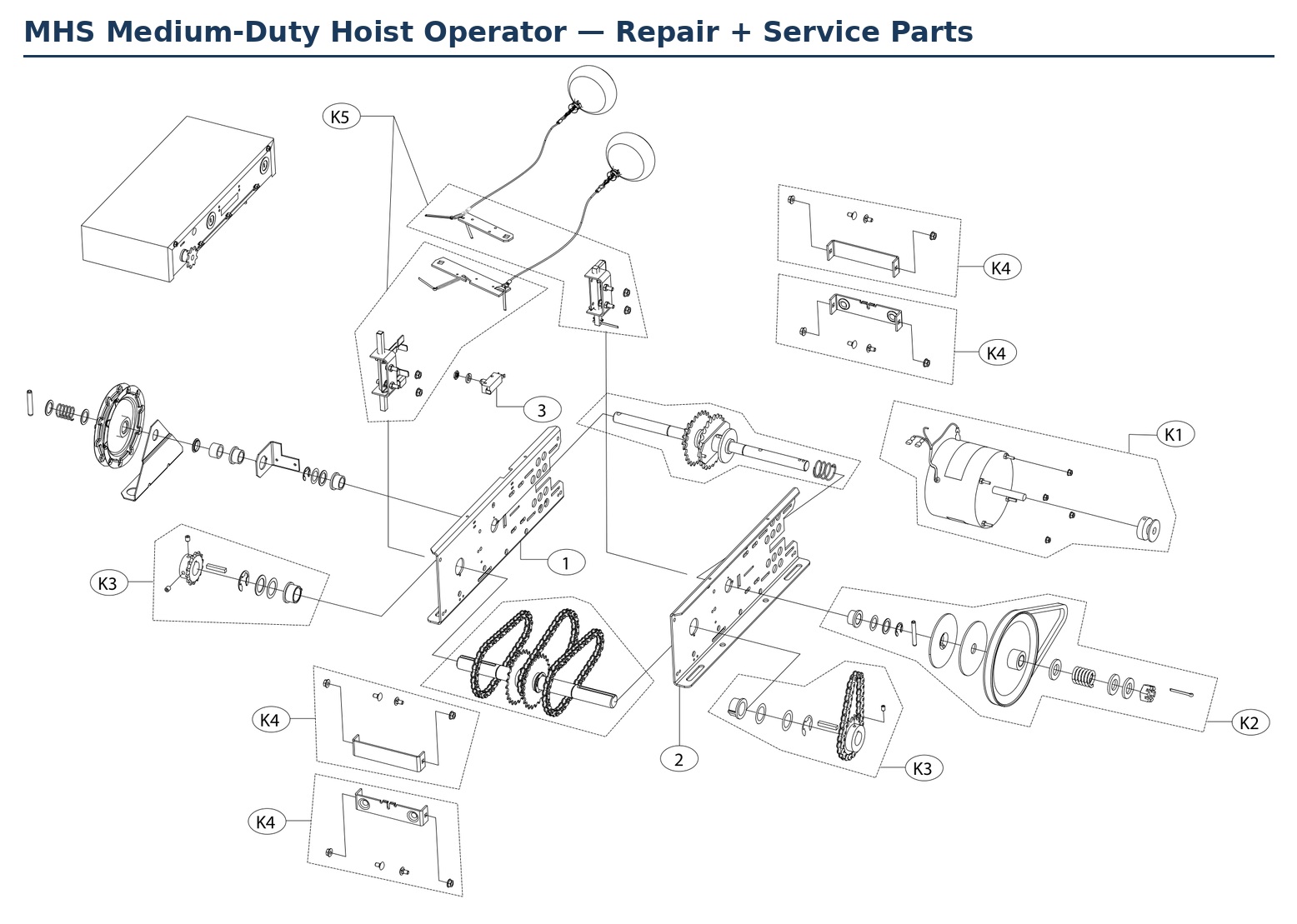

Genuine LiftMaster replacement parts for the MHS medium-duty hoist operator. The MHS5011 is the standard version — 1/2 HP, 120V, single phase. Use the exploded diagram to identify your part by its key number, then match it to the tables below.

The MHS is built in right-hand and left-hand versions and the frames are not interchangeable, so check which side your operator mounts on before ordering frame parts. A letter after the model number tells you the rest: R or L is the hand, and U or E is the logic board type. Both are on the operator’s data label.

Models Covered

MHS5011 (1/2 HP, 120V, 1PH) — also sold as MHS5011R (right hand), MHS5011L (left hand), MHS5011U, MHS5011UR and MHS5011UL

Replacement Parts

Service Kits

The motor’s part number is printed on the motor’s own data label. If you can reach it, read the number straight off the label and match it below — that is the most reliable way to order the right motor.

Electrical box parts. The MHS uses the shared medium-duty logic control box, the same one fitted to the MT, BMT, MJ, MH and MGJ. It was not built with the mechanical-operator box.

Electrical Box — Logic Control
