Linear LDCO800 Replacement Parts

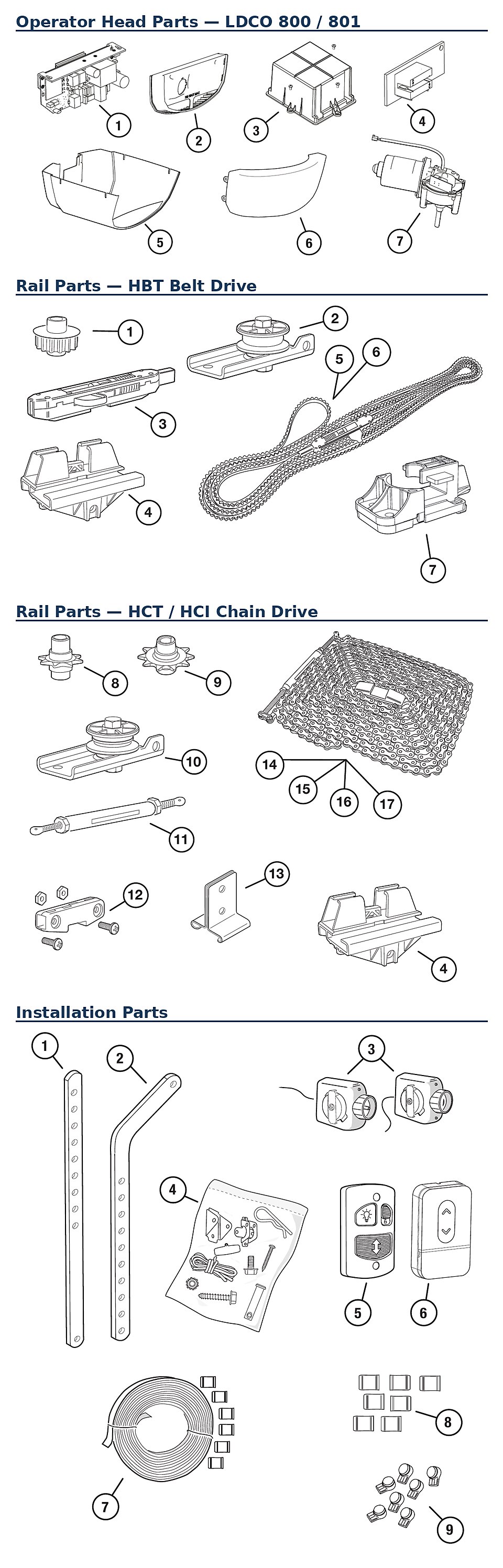

Genuine Linear replacement parts for the LDCO800 DC garage door operator. Use the diagram above to identify your part, then click any part number below to order. The LDCO800 accepts either a belt-drive or chain-drive rail, so both rail types are listed. These same head parts fit the LDCO801, which is the identical operator under a later model number.
Operator Head Parts
| Ref |
Part # |
Description |
| 1 |
HAE00077 |
LDCO control board, battery backup compatible |
| 2 |
HAE00051 |
LDCO front cover (with label) |
| 3 |
BBU |
Battery backup unit |
| 4 |
HAE00058 |
LDCO encoder board |
| 5 |
HAE00052 |
LDCO main cover (with labels) |
| 6 |
228152 |
LDCO light lens |
| 7 |
HAE00057 |
LDCO motor (with encoder) |
Rail Parts
| Ref |
Part # |
Description |
| 1 |
220499 |
HBT drive sprocket (belt rail) |
| 2 |
218954-03 |
HBT pulley and bracket (belt rail) |
| 3 |
HAE00022 |
HBT inner slide assembly (belt rail) |
| 4 |
218189-01 |
Trolley assembly (belt or chain rail) |
| 5 |
HAE00023 |
7 ft belt assembly |
| 6 |
HAE00033 |
8 ft belt assembly |
| 7 |
HAE00049 |
Drive sprocket holder and belt clamp — HBT belt rails only |
| 8 |
217436 |
HCT drive sprocket, 8 tooth (chain rail) |
| 9 |
227653 |
HCI drive sprocket, 10 tooth (chain rail) |
| 10 |
HAE00014 |
HCT pulley and bracket (chain rail) |
| 11 |
HAE00013 |
HCT turnbuckle assembly (chain rail) |
| 12 |
HAE00018 |
HCT inner slide assembly (chain rail) |
| 13 |
CSB |
Center support bracket |
| 14 |
HAE00015 |
7 ft chain assembly |
| 15 |
HAE00032 |
8 ft chain assembly |
| 16 |
HAE00017 |
10 ft chain assembly |
| 17 |
HAE00046 |
12 ft chain assembly |
Installation Parts
| Ref |
Part # |
Description |
| 1 |
227966 |
Door arm — straight |
| 2 |
227967 |
Door arm — bent |
| 3 |
HAE00087 |
Safety beam sender and receiver (with wire) |
| 4 |
220205-02 |
Complete hardware kit |
| 5 |
HAE00001 |
Wall station |
| 7 |
HAE00044 |
Wire kit (15 sets of wire and clips) |
| 8 |
HAE00019 |
Wire clip kit (100 clips) |
| 9 |
HAE00020 |
Gel cap kit (100 pieces) |
