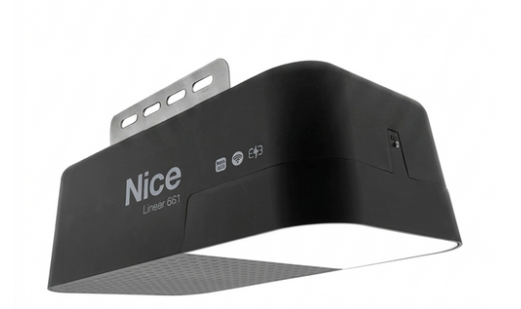

Linear 661 parts DC model
Linear 661 Replacement Parts

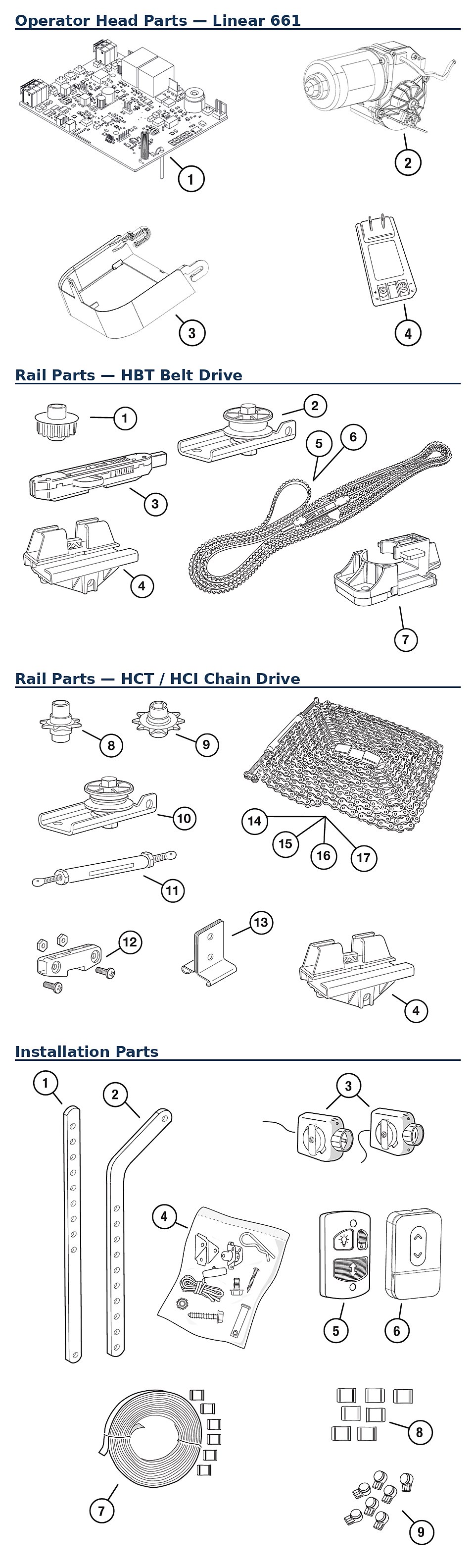

Genuine Linear replacement parts for the Linear 661 garage door operator. Service parts for this model carry the LINEAR600 designation. Use the diagram above to identify your part, then click any part number below to order.
Operator Head Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | HAE00082 | Control board, LINEAR600 |
| 2 | HAE00083 | Motor assembly with encoder, LINEAR600 |
| 3 | HAE00084 | Light lens assembly, LINEAR600 |
| 4 | HAE00085 | Power supply, LINEAR600 (BATT54) |
Rail Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | 220499 | HBT drive sprocket (belt rail) |
| 2 | 218954-03 | HBT pulley and bracket (belt rail) |
| 3 | HAE00022 | HBT inner slide assembly (belt rail) |
| 4 | 218189-01 | Trolley assembly (belt or chain rail) |
| 5 | HAE00023 | 7 ft belt assembly |
| 6 | HAE00033 | 8 ft belt assembly |
| 7 | HAE00049 | Drive sprocket holder and belt clamp — HBT belt rails only |
| 8 | 217436 | HCT drive sprocket, 8 tooth (chain rail) |
| 9 | 227653 | HCI drive sprocket, 10 tooth (chain rail) |
| 10 | HAE00014 | HCT pulley and bracket (chain rail) |
| 11 | HAE00013 | HCT turnbuckle assembly (chain rail) |
| 12 | HAE00018 | HCT inner slide assembly (chain rail) |
| 13 | CSB | Center support bracket |
| 14 | HAE00015 | 7 ft chain assembly |
| 15 | HAE00032 | 8 ft chain assembly |
| 16 | HAE00017 | 10 ft chain assembly |
| 17 | HAE00046 | 12 ft chain assembly |
Installation Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | 227966 | Door arm — straight |
| 2 | 227967 | Door arm — bent |
| 3 | HAE00087 | Safety beam sender and receiver (with wire) |
| 4 | 220205-02 | Complete hardware kit |
| 6 | HAE00080 | WiFi wall station |
| 7 | HAE00044 | Wire kit (15 sets of wire and clips) |
| 8 | HAE00019 | Wire clip kit (100 clips) |
| 9 | HAE00020 | Gel cap kit (100 pieces) |
