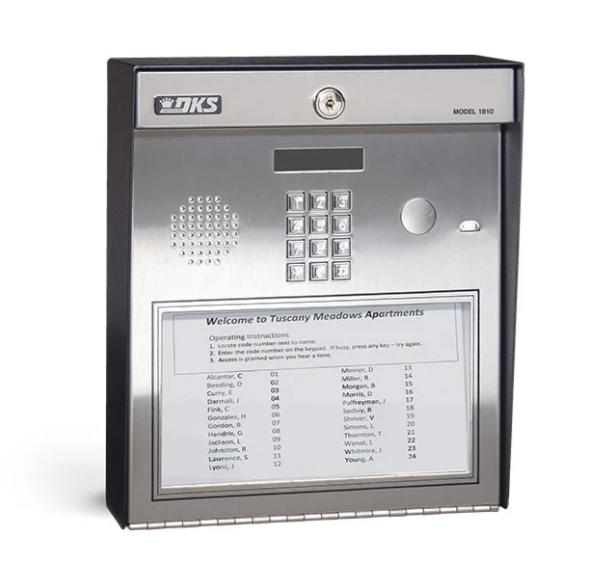

DoorKing 1810 Phone Entry System Replacement Parts
Genuine DoorKing replacement parts for the 1810 surface mount telephone entry system (model 1810-080, IPB rev 11-17). The reference numbers in the tables below match the callout numbers on each diagram, so find the number on the drawing first, then click the part number in the matching row.
The 1810 is a surface mount unit — the slant box (1810-101) bolts to a wall or post rather than into a cut-out. The two boards do different jobs: 1862-010 is the main telephone board that dials out and drives the relays, and 1890-010 is the 8 x 1 line LCD display. The directory itself lives on the 1810-075 memory chip, so replacing the main board does not by itself wipe your phone numbers.

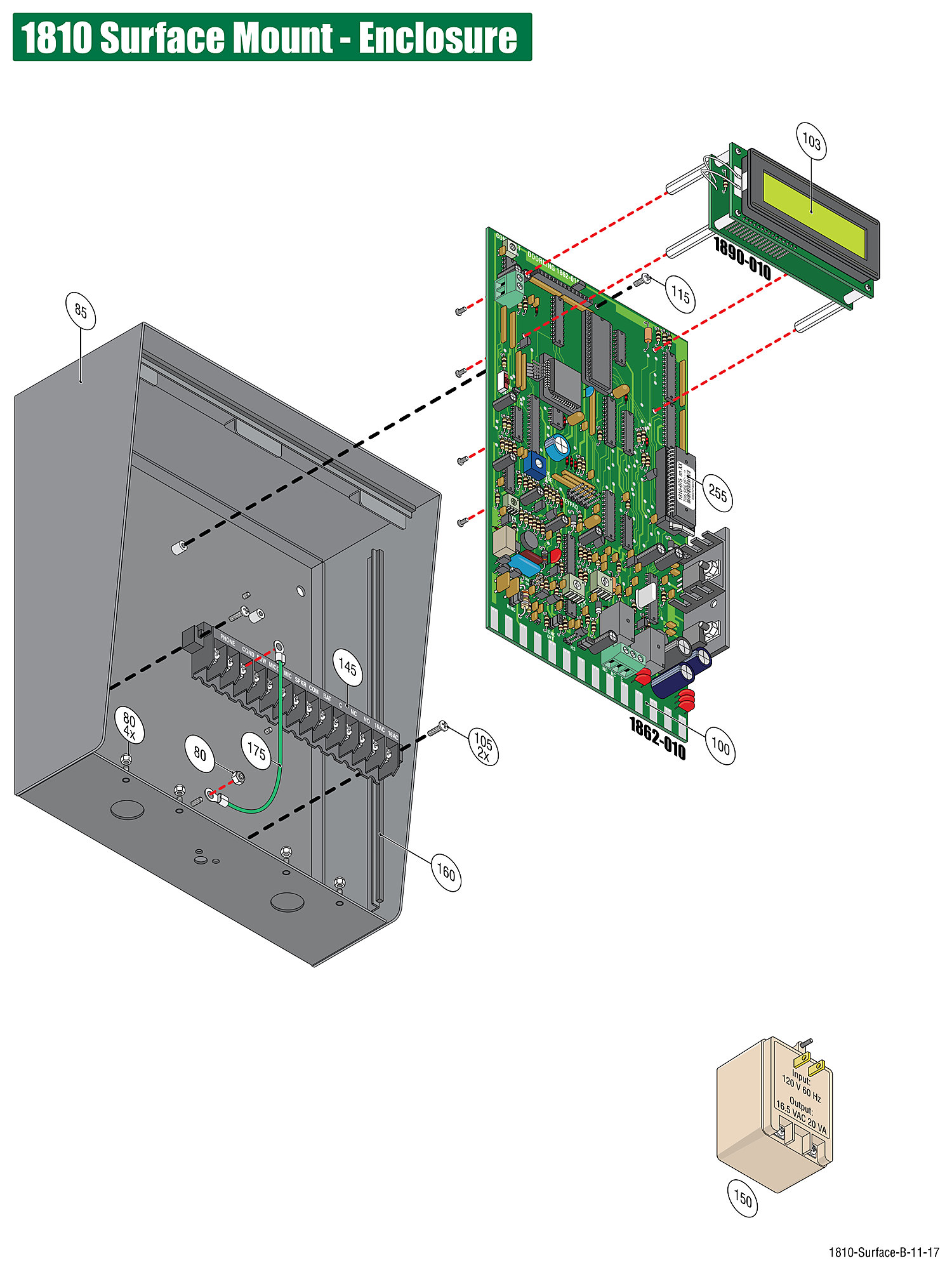

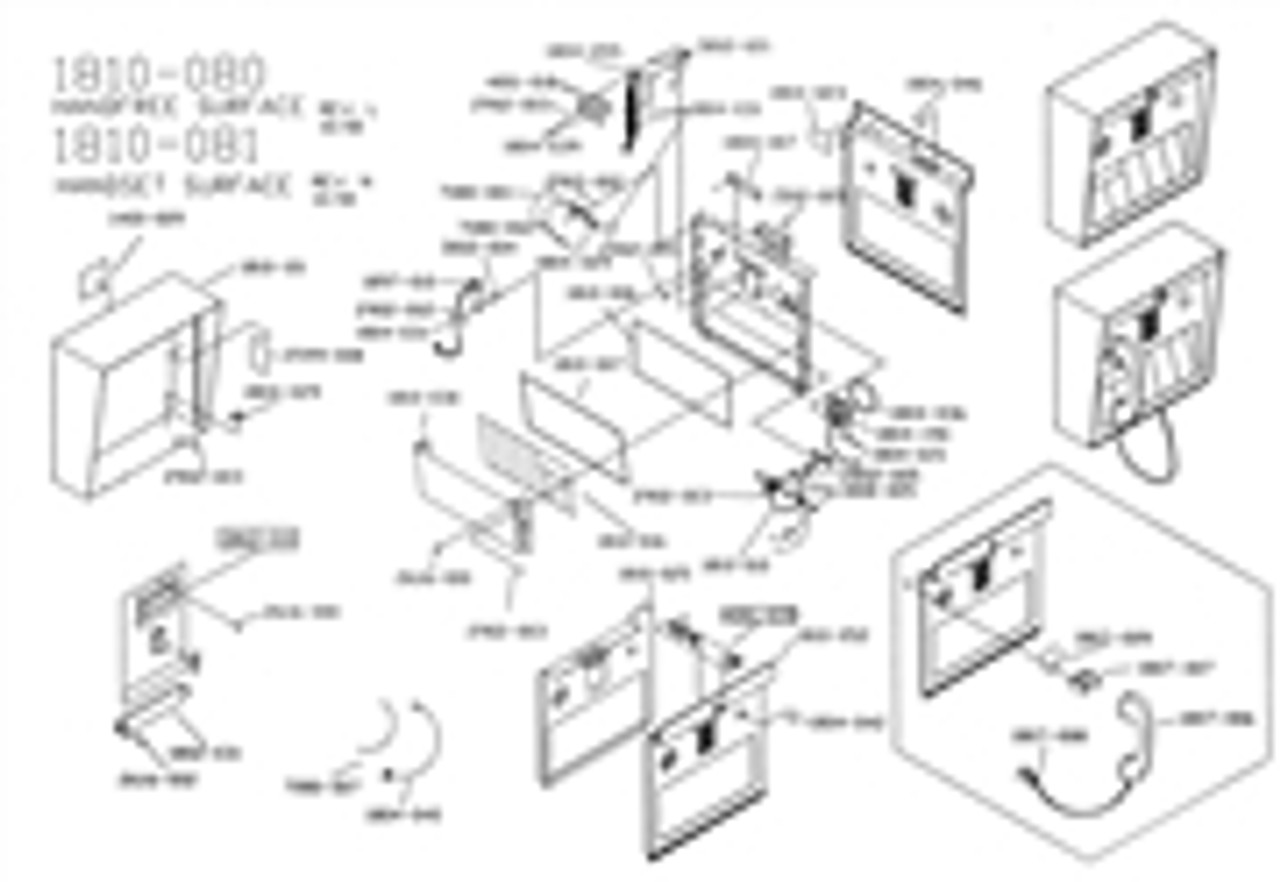

Enclosure — Slant Box, Circuit Boards & Wiring
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 85 | 1810-101 | Box, phone slant | 1 |
| 80 | 2902-003 | Nylon lock nut, 6-32 (26 used) | 17 |
| 100 | 1862-010 | PCB, telephone 2 relay (main board) | 1 |
| 103 | 1890-010 | PCB, display LCD 8 x 1 line | 1 |
| 108 | 2900-905 | Standoff, aluminium 7/16 in. 6-32 | 1 |
| 115 | 2905-001 | Round head screw, 6-32 x 1/4 in. | 1 |
| 140 | 1804-024 | Micro switch, NO NC C | 1 |
| 145 | 1802-031 | Terminal, 14 pin | 1 |
| 150 | 1804-060 | Transformer, 16.5 VAC 20 VA plug-in | 1 |
| 175 | 7082-059 | Wire, green 18 AWG stranded | 1 |
| 180 | 1804-040 | Wire, telephone line cord | 1 |
| 185 | 1804-028 | Mount, wire clip (3 used) | 1 |
| 245 | 1804-196 | Gasket, speaker 1/16 in. thick | 1 |
| 255 | 1810-075 | Memory, 1000 phone numbers | 1 |
| 260 | 1876-025 | Ferrite snap-on filter (Steward) | 1 |

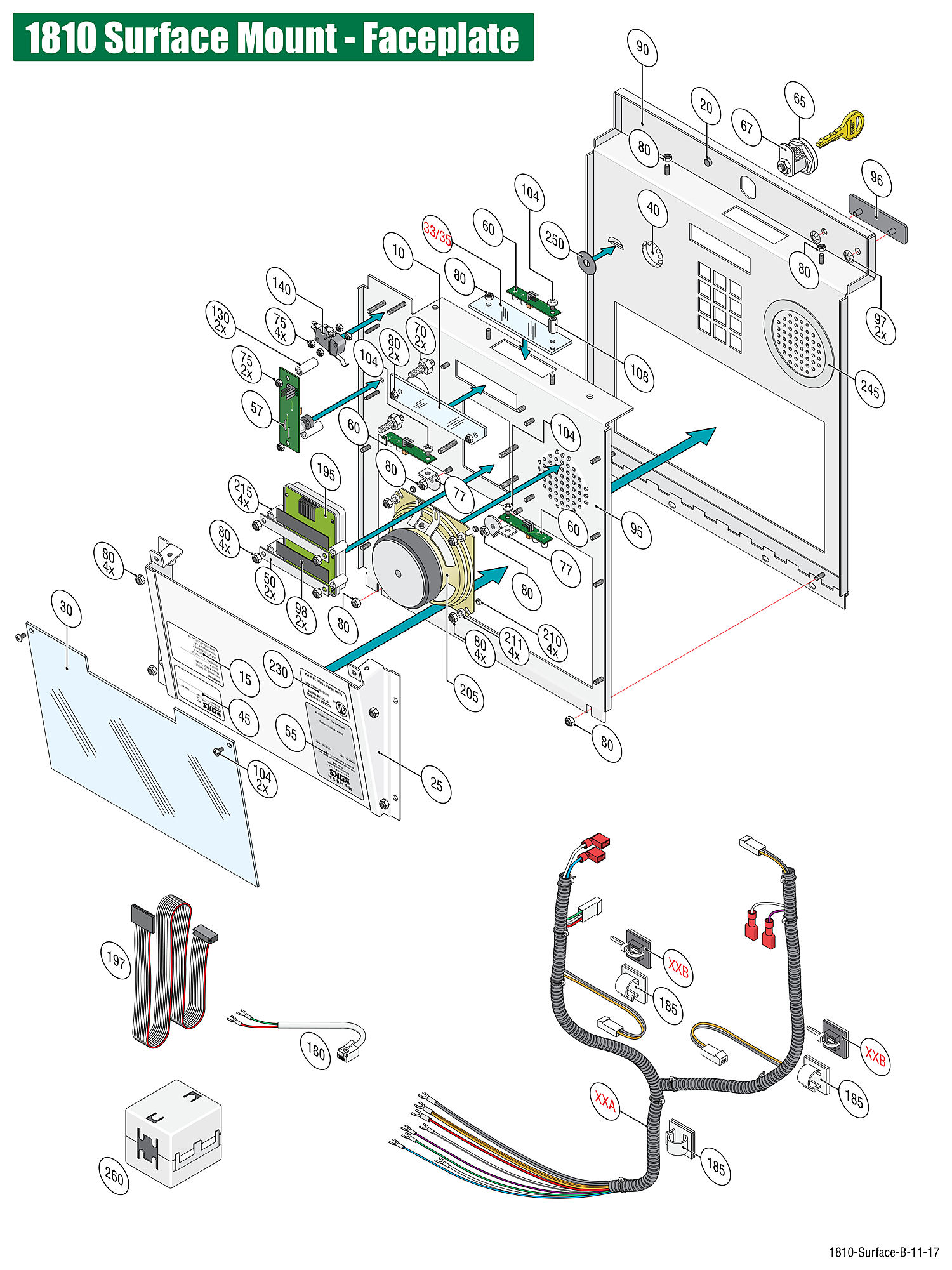

Faceplate — Keypad, Speaker, Directory & Hardware
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 10 | 1804-004 | Cover, clear Lexan 3.75 x .85 x .125 in. | 1 |
| 15 | 1804-023 | Decal, FCC | 1 |
| 20 | 2600-735 | Hole plug, black nylon .250 in. | 1 |
| 25 | 1810-030 | Bracket, directory holder | 1 |
| 30 | 1810-007 | Cover, plastic directory | 1 |
| 33 | 1502-005 | Cover, plastic | 1 |
| 35 | 1810-006 | Cover, plastic large | 1 |
| 40 | 1804-042 | Hole plug | 1 |
| 45 | 1400-009 | Decal, identification | 1 |
| 50 | 1804-039 | Retaining strip, keypad | 2 |
| 55 | 2599-008 | Label, patent | 1 |
| 57 | 1998-190 | PCB, microphone short SMT | 1 |
| 60 | 2356-010 | PCB, LED light straight | 3 |
| 65 | 4001-035 | Lock with 2 keys (16120) | 1 |
| 67 | 1702-501 | Cam, 7/8 in. | 1 |
| 70 | 2902-006 | Nylon lock nut, 10-32 | 2 |
| 75 | 2902-002 | Nylon lock nut, 4-40 (6 used) | 2 |
| 77 | 1810-145 | Bracket, LED mount (2 different) | 2 |
| 86 | 2620-010 | Washer, #10 SAE (none used) | 2 |
| 90 | 1810-053 | Faceplate, phone | 1 |
| 95 | 1810-023 | Subplate, phone | 1 |
| 96 | 2600-734 | Nameplate, plastic DKS small | 1 |
| 97 | 2802-040 | Push-on washer | 2 |
| 98 | 1897-050 | Gasket support, thick 1/16 in. | 2 |
| 104 | 2616-006 | Phillips head screw, 6-32 x 3/16 in. (5 used) | 2 |
| 105 | 2905-003 | Round head screw, 6-32 x 1/2 in. | 2 |
| 130 | 3002-004 | Spacer, nylon 6 x 7/16 in. | 2 |
| 160 | 1800-018 | Weather strip, .125 x .187 in. | 2.91 ft |
| 195 | 1895-017 | Keypad, 10 pin numbers header | 1 |
| 197 | 1804-038 | Wire, ribbon cable assembly 10 conductor | 1 |
| 205 | 1804-290 | Speaker assembly | 1 |
| 210 | 1860-126 | Washer, nylon shoulder | 4 |
| 211 | 1860-032 | Washer, nylon retaining #6 | 4 |
| 215 | 3002-021 | Spacer, nylon 6 x 3/8 in. | 4 |
| 230 | 2600-884 | Label, E.T.L. separable | 1 |
| 250 | 1897-053 | Gasket, microphone | 1 |
Not Shown on the Diagrams
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 225 | 1800-060 | Manual, installation | 1 |
Common 1810 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Keys do not respond, or only some digits register | Worn keypad | 1895-017 keypad, 1804-039 retaining strips (2) |
| Display blank, garbled or partly lit | Failed LCD board | 1890-010 display board, 1804-038 ribbon cable |
| Visitor cannot be heard by the resident | Failed microphone board | 1998-190 microphone PCB, 1897-053 microphone gasket |
| Resident cannot be heard at the gate, or audio is distorted | Failed speaker | 1804-290 speaker assembly, 1804-196 speaker gasket |
| Unit completely dead, no display, no dial tone | Failed transformer or main board | 1804-060 transformer, 1862-010 telephone board |
| Directory lost after a power cut or board swap | Failed memory chip | 1810-075 memory chip, 1000 numbers |
| Line noise, hum or dropped calls | Missing or failed line filter | 1876-025 ferrite filter, 1804-040 telephone line cord |
| Water inside the box, corroded boards | Perished weather strip or gaskets | 1800-018 weather strip, 1897-050 gasket supports (2) |
| Faceplate damaged, directory cover cracked or yellowed | Vandalism or UV | 1810-053 faceplate, 1810-023 subplate, 1810-007 directory cover |
