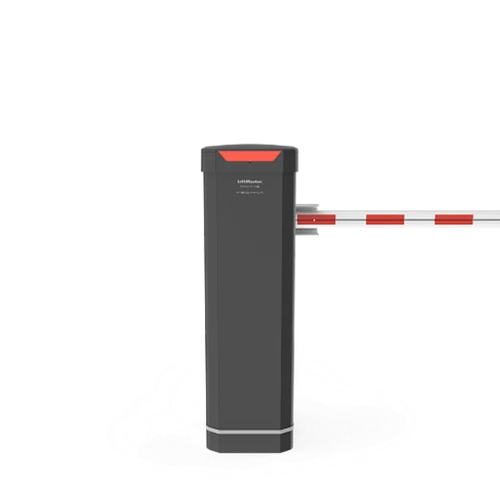

LiftMaster PBG24DCGMC TECHNA barrier gate operator, grey cabinet — the high-speed parking TECHNA model for parking garages, lots and revenue control. Under 1.9 seconds open, arms to 12 ft straight or articulating for low ceilings, with vehicle and vend count validation and strike detection. The only TECHNA compatible with myQ Facility Parking.
Cabinet color: this listing is the Grey cabinet. Also available in white. The barrier arm is sold separately — PBGARM10/PBGARM12 straight (LED available) or articulating ART84/ART98 arms for low-clearance garages.
The PBG24DC replaces the Mega Sprint (MAS / MAST) as LiftMaster’s fast parking barrier. Parking-rated arms are tested to 5 million cycles, the audible alarm is standard, and integrated Wi-Fi/Ethernet gives you remote diagnostics, occupancy data and scheduled gate holds through myQ Facility Parking.
Specifications
| Model | PBG24DC — TECHNA DC parking barrier gate operator |
|---|---|
| Max arm length | 12 ft straight (PBGARM) or articulating (BGARM-ART84/ART98) |
| Open / close time | Under 1.9 seconds |
| Arm options | Straight, LED, articulating for 84 in / 98 in clearance |
| myQ platform | myQ Community, myQ Facility Parking |
| Motor / drive | 24 VDC brushless motor, direct drive, oil-bath gearbox |
| Power input | 120 V / 230 V AC single phase (optional 3PHCONV three-phase conversion kit) |
| Battery backup | Two 12 V 7 Ah batteries included; upgradable to two 12 V 33 Ah |
| Housing | 10-gauge aluminum cabinet, powder-coat finish |
| Operating temperature | -4°F to 140°F; to -40°F with heater kit |
| Radio | Built-in Security+ 2.0 receiver, 64 remotes (expandable with 811LMX/813LMX) |
| Connectivity | Built-in Wi-Fi and Ethernet, myQ connected; solar capable |
| Certifications | UL 325 and UL 991, usage Class I–IV |
Shipping: ships by freight at a flat $399 to the continental USA. Alaska and Hawaii additional.
Genuine LiftMaster. We stock TECHNA replacement parts for the full TECHNA family.
