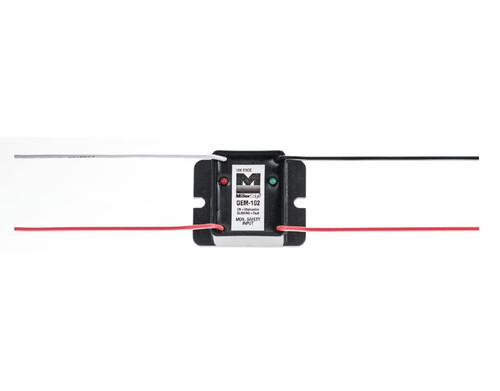

MillerEdge GEM-102 Gate Edge Module

MillerEdge GEM-102 Gate Edge Module

OPERATOR INTERFACE MODULE
Gate Edge Module (GEM) is designed to convert a hard-wired 10K resistive gate sensing edge to a monitored normally closed, 2-wire pulsed, or 4-wire pulsed sensing edge output required by some commercial gate operators. This allows for compatibility with nearly all UL 325 compliant gate operators manufactured after January 2016. GEM is equipped with LED lights that indicate device power or fault conditions. It is easy to install and features a compact size that fits inside the gate operator.

FEATURES
· Converts a 10K resistive monitored sensing edge to the output required by various gate operators:
- GEM-102: 10K edge to 2-wire pulsed output

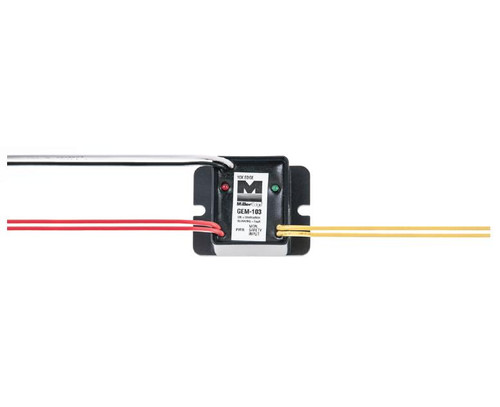

- GEM-103: 10K edge to 4-wire pulsed output

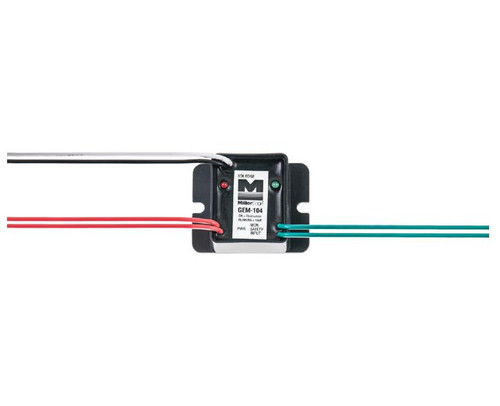

- GEM-104: 10K edge to normally closed output
· LED lights indicate device power or fault conditions
· Small profile fits easily inside operator chassis
· Easy to install
· NEMA 4 protection from moisture, dirt, and dust
· UL 325 Recognized Component
· 1-year warranty
