Not sure this is the right model? See Which Miller Edge Sensing Edge Do I Need? The monitoring designator (T1–T6) is set by your operator, not the edge — see the designator guide.
ME113 is a pressure sensitive sensing edge that is custom manufactured to user specifications for length and outlet location. When touched activated, ME113 sends an immediate signal to operator controls to stop and/or reverse door operation. This slide-in style edge features a double-T mounting design, which provides superior stability for sectional overhead commercial doors and material handling systems applications.
APPLICATIONS · Commercial sectional doors · Material handling systems
FEATURES · Easy to install · Optimum size for 1-1/2 inch thick surfaces · Double-T design for added stability · Mounts vertically or horizontally · Sealed assembly impervious to dust and debris · Custom manufactured to user specifications for length and outlet location · Patented Alumaglas™ for superior performance (electric option) · UL 325 Recognized Component · 1-year warranty · Made in USA

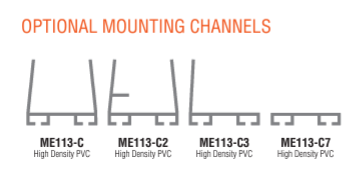

Cord Location
Monitored Devices Guidelines For UL325 Listed Operators Built After August 29th, 2010 that have a Monitored Circuit
For older units Prior and other applications in most cases a Non Monitored edge is used
Please confirm with manufacture before ordering as edges are all edges are custom made and Not returnable
Monitored Sensing Edge Designator
T1 is a 8.2K Ohm Resistor Green Color Code Typically used for European Operators
T2 is a 10K Ohm Resistor Blue Color Code Typically used by the Following Manufactures
Cornell / US Gear, Liftmaster / Chamberlain, Linear, Manaras, Micanan / Napoleon Lynx,
Raynor, VE Power Door, Cookson,, Lawrence
T3 Diode Capacitor Red Color Code Used for Overhead Door Corporation units
T4 Capacitor White Color Code for Linear (Transmitter)
T5 6.8K Ohm Resistor Orange Color Code Custom Applications
T6 270K Ohm Resistor Violet Color Code Liftmaster CPS Board
