The Linear LDCO863B is a smart WiFi garage door opener head unit with integrated battery backup and app control — the motor only, with no rail, chain or sprocket. It replaces a failed head unit on an existing Linear installation and reuses your current rail.
Battery backup is built in, and it meets California state requirements. That matters: California and Washington both require battery backup on residential garage door openers. The LDCO863B has it integrated — no separate unit to buy or find room for.
Head unit only — no rails included. If you are installing from scratch, or your existing rail is bent or worn, you need a complete opener with a rail. See residential garage door openers.
What makes it the smart one
| Feature | What it does |
|---|---|
| Linear Smart app | Open, close and monitor the door from any phone. Assign access to up to 10 users, and schedule door and light operation. Needs WiFi and an internet connection. |
| Integrated battery backup | Door still works in a power cut. California compliant. |
| 4,100 lumen LED lighting | Three dimmable LED panels. Long life — you are not changing a bulb again. |
| Variable speed motor | Soft start and soft stop, ultra quiet running |
| Self-diagnostics | Continually checks operation and pinpoints a fault, alerting you audibly and by flashing the courtesy lights |
| MegaCode receiver | Long range, high security. Your existing Linear MegaCode remotes still work. |
| Quick-disconnect trolley | Release the door to operate it by hand |
Specifications
| Model | LDCO863B (sometimes written LCDO863B) |
|---|---|
| What you get | Head unit only — no rail, chain or drive sprocket |
| Motor | DC, variable speed, soft start and soft stop |
| Connectivity | WiFi, via the Linear Smart app |
| Battery backup | Integrated — California compliant |
| Lighting | 3 LED panels, 4,100 lumens total, dimmable |
| Receiver | Built-in MegaCode |
| Included | One MTS3 three-button MegaCode remote, WiFi multi-function wall control station |
| Safety beams | Obstacle-sensing safety beam compatible |
| User access | Up to 10 authorised users with custom permissions |
Which Linear head unit should I buy?
| LDCO801 | LDCO863B — this unit | |
|---|---|---|
| App control | No | Yes — Linear Smart app |
| Battery backup | Optional, separate BBU unit | Integrated, California compliant |
| Lighting | 100 W bulb, not included | 4,100 lumen LED panels, included |
| Remotes | MegaCode — MCT-3 included | MegaCode — MTS3 included |
| Choose it if | You want a straight like-for-like motor replacement at the lowest cost | You want phone control, or you are in a state that requires battery backup |
See the LDCO801 or the Nice 661, the current Nice-branded smart head unit.
Replacing an older Linear opener?

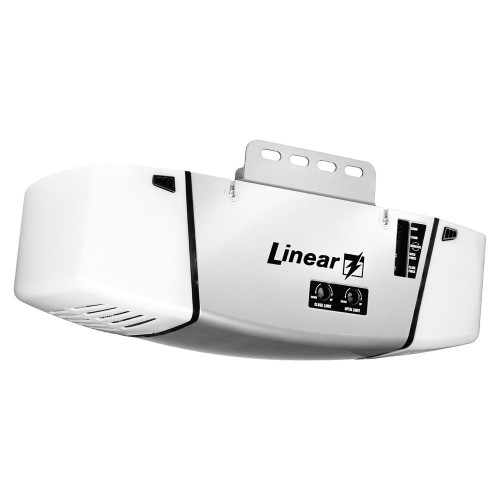

The LDCO863B mounts to the same rails as Linear's earlier head units, so if you are replacing an LDO50, LDO33, LSO50, LCO75, LDCO800, LDCO801, LDCO850 or LDCO852, this fits — and adds app control and battery backup at the same time.
Your existing MegaCode remotes carry over. Check the rail first: a new head unit on a bent or worn rail will not last.
About Linear and Linear Pro Access
Linear is now part of Nice, the Italian access and automation group. You will see the brand written as Linear, Linear Pro Access or Nice depending on the era and the product line — they are the same company, and parts and remotes carry across.
Common questions
Does it come with a rail? No. Head unit only — no rail, chain or drive sprocket. It reuses your existing rail.
Does it have battery backup? Yes, integrated, and it meets California requirements. No separate unit needed.
Does it work with myQ? No. myQ is Chamberlain and LiftMaster. This uses the Linear Smart app, which is Linear's own system.
Do I need WiFi? For the app, yes — WiFi and an internet connection. The opener works normally on the remote and wall station without it.
Will my existing remotes work? Yes, if they are Linear MegaCode. An MTS3 remote is included as well.
Do I have to change the bulb? No. It has three long-life LED panels, 4,100 lumens total, dimmable.
How many people can have app access? Up to 10 authorised users, each with custom permissions, and you can schedule door and light operation.
What is the difference between the LDCO863B and the LDCO801? App control, integrated battery backup and LED lighting. The 801 is the basic replacement motor; this is the smart one. Full comparison above.
Related
all residential garage door openers · Linear LDCO801 · Linear opener parts · Linear MegaCode remotes
Replacing an older Linear opener and not sure which head unit you need? Send us the model number off the old motor and a photo of your rail — parts@gatehousesupplies.com or call 866-965-5599. We install these for a living. Since 1993.
