LiftMaster 81LM, 82LM, 83LM & 84LM Remotes
The 8xLM series is LiftMaster's Billion Code generation at 390 MHz, fitted to openers built between 1993 and 1997. Every original part number in this series is now discontinued — but you do not need a new opener. Current remotes program to the same unit in about thirty seconds. Find your old number below.
Holding an 81LM or 83LM? The 893MAX replaces it. It is tri-band across 310, 315 and 390 MHz, so it covers your green learn button opener and any newer LiftMaster on the property at the same time.

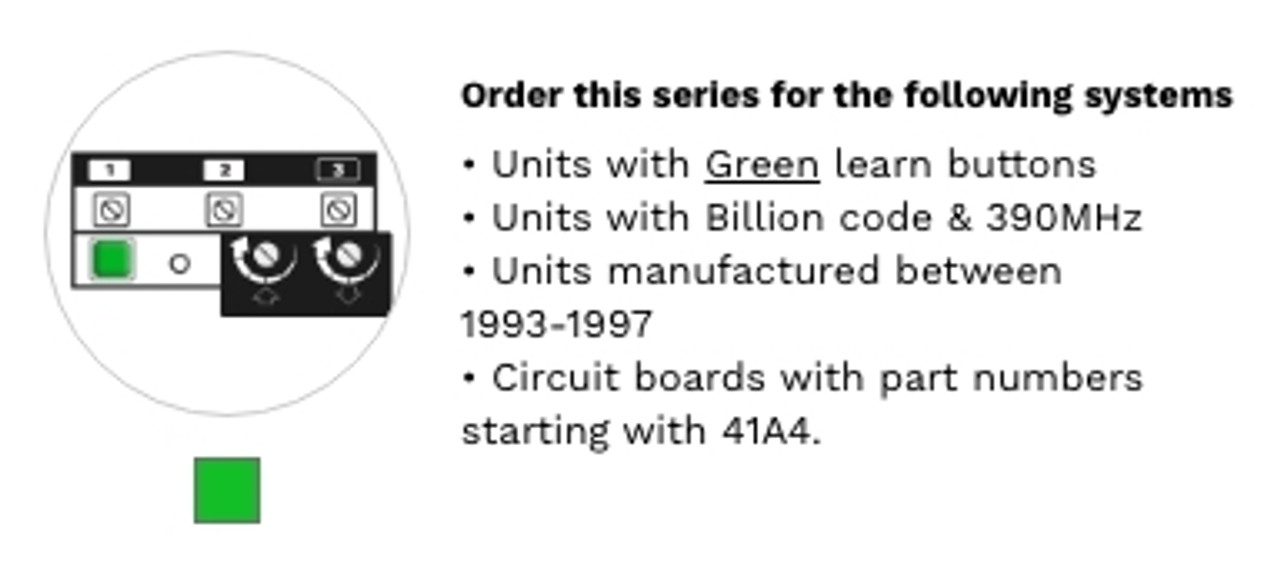

Is this the right series for my opener?
Four ways to confirm, any one of which is enough:
| Check | You have an 8xLM system if… |
|---|---|
| Learn button colour | Green |
| Code system | Billion Code |
| Frequency | 390 MHz |
| Circuit board number | Starts 41A4… |
| Manufacture date | 1993 to 1997 |
What replaces my remote?
| Old part number | Buttons | Order this instead | Notes |
|---|---|---|---|
| 81LM | 1 | 893MAX | Tri-band 310/315/390 MHz |
| 82LM | 2 | 893MAX | Tri-band. The 380UT is being phased out — use the 893MAX. |
| 83LM | 3 | 893MAX | Tri-band 310/315/390 MHz |
| 84LM | — | 893MAX | Tri-band replacement |
| 66LM | keypad | 878MAX | Wireless keypad, tri-band |
| 975LM | — | 893MAX | Tri-band replacement |
| 375LM | — | 893MAX | Tri-band replacement |
| CB-390 | keychain | 890MAX | Mini keychain remote |
Learn button quick reference
The 8xLM series is the green generation. If yours is a different colour you need a different remote — the radio formats do not cross over.
| Learn button | Format | Era | What to order |
|---|---|---|---|
| Green | Billion Code, 390 MHz — this series | 1993–1997 | 893MAX |
| Red / orange | Security+ 390 MHz | 1997–2005 | 971LM or 893MAX — see the 97xLM series |
| Purple | Security+ 315 MHz | 2005–2011 | 371LM or 893MAX — see the 37xLM series |
| Yellow | Security+ 2.0 | 2011 onward | 891LM — see Security+ 2.0 remotes |
| Grey / none | Dip switch | Pre-1993 | Count the switches in your old remote and call us |
Current remotes and keypads
| Model | Buttons | Notes |
|---|---|---|
| 893MAX | 3 | Tri-band 310/315/390 MHz. The replacement for every remote in this series. |
| 890MAX | 3 | Mini keychain remote |
| 878MAX | keypad | Tri-band wireless keypad. Replaces the 66LM. |
| VKP1-LM | keypad | myQ Smart Garage video keypad — camera and intercom built in |
| VKP1-MYQ | keypad | Chamberlain-branded myQ video keypad |
Universal remotes
The 374UT and 380UT are being phased out. For a green learn button opener the 893MAX is the better answer — and a universal needs a working remote to learn from, which the 893MAX does not. Reach for a universal only when the property also runs another brand.
| Model | Buttons | Status |
|---|---|---|
| 374UT | 1, mini | Being phased out — while stocks last |
| 380UT | 2 | Being phased out — while stocks last |
Batteries, clips and covers
| Part | What it is |
|---|---|
| 10A20 | 3V battery for 8xLM series remotes |
| 10-29C128 | Visor clip for LiftMaster remotes |
| 041D0541 | Keypad battery cover |
| 041D0621 | 877MAX cover only |
| VKP1-MYQ-BT1 | myQ video keypad rechargeable battery |
| RTM | Leather case for mini remotes |
Programming a green learn button remote
1. Find the green learn button on the motor unit — usually beside the antenna wire, sometimes under the light lens.
2. Press and release it. The LED beside it comes on for about 30 seconds.
3. Within those 30 seconds, press the button on the new remote.
4. The opener light flashes or the unit clicks to confirm. Test the door.
To erase every remote from memory, press and hold the learn button until the LED goes out — around six seconds. That clears all of them, so reprogram every remote afterwards.
Common questions
My 81LM stopped working — do I need a new opener? No. Change the battery first. If that does not fix it, the 893MAX programs straight to the same opener.
What battery does an 81LM take? A 3V 10A20. Flat batteries are the most common cause of a remote that has "died".
Is the 81LM still made? No. Nothing in the 8xLM series is still produced. The 893MAX is the current equivalent and works on the same opener.
What is Billion Code? The rolling-code system LiftMaster used on this generation, before Security+ replaced it. Your opener still works fine — only the remote part numbers changed.
My opener is from the 1990s. Is it worth replacing the remote? Usually yes. A 1993–1997 opener in working order will keep going for years, and a remote costs a fraction of a new unit.
Can I mix old and new remotes on one opener? Yes, as long as they are all on the same frequency. A green learn button opener holds any mix of 390 MHz Billion Code remotes.
The new remote programmed but the range is poor. Check the antenna wire hangs freely from the motor unit and is not coiled up or tucked away.
By opener generation
Security+ 2.0 — yellow · 37xLM — purple, 315 MHz · 97xLM — red/orange, 390 MHz · not sure? start here
Related
all LiftMaster remotes · wireless keypads · all remote controls
Not sure which remote you need? Send a photo of the learn button on your opener to parts@gatehousesupplies.com or call 866-965-5599 — we will identify it in a minute.
