LiftMaster 970LM, 971LM, 972LM, 973LM & 974LM Remotes

The 97xLM series is LiftMaster's 390 MHz Security+ generation, fitted to openers built between 1988 and April 2005. Most of these part numbers are now discontinued, but every one has a direct replacement that programs to the same opener. Find your old number below and order what replaces it.

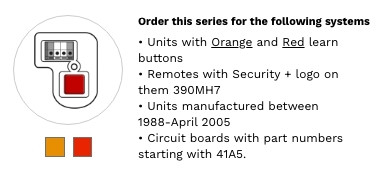

Is this the right series for my opener?

Three ways to confirm, any one of which is enough:

Check You have a 97xLM system if…
Learn button colour Orange or red
Remote marking Your existing remote carries the Security+ logo
Frequency 390 MHz
Circuit board number Starts 41A5…
Manufacture date 1988 to April 2005

Purple learn button instead? That is the 315 MHz generation — see the 37xLM series. Yellow? That is Security+ 2.0. The three formats do not cross over.

What replaces my remote?

Old part number Buttons Order this instead Notes
970LM 1, keychain 890MAX Mini keychain remote
971LM 1 971LM Still available — order the same number. Lowest-cost single-button option.
972LM 2 892LT Two-button learning remote
973LM 3 893MAX Tri-band 310/315/390 MHz
974LM 4 974LM or 894LT Four-button
975LM — 893MAX Tri-band replacement
976LM / 977LM keypad 878MAX Wireless keypad, tri-band

If you only need one button, the 971LM is still made and costs less than a three-button remote. Step up to the 893MAX when you need multiple buttons, or when one remote has to cover several openers on different frequencies — it is tri-band, so it handles orange, red, purple, green and yellow alike.

Learn button quick reference

Learn button Format Single button Multi button
Red / orange 390 MHz — this series 971LM 892LT, 893MAX, 894LT
Purple 315 MHz — the 37xLM series 371LM 373LM, 893MAX
Green Older 390 MHz 893MAX
Yellow Security+ 2.0 891LM Security+ 2.0 remotes

Current remotes and keypads

Model Buttons Notes
971LM 1 390 MHz, red/orange learn button. Genuine LiftMaster, still available.
974LM 4 Four-button remote
892LT 2 Learning remote — also programs to non-LiftMaster systems
894LT 4 Four-button learning remote
893MAX 3 Tri-band 310/315/390 MHz. Replaces the 971LM, 973LM, 371LM and 893LM.
890MAX 3 Mini keychain remote
L932M 2 Keychain remote
L993M 3 Three-button remote
878MAX keypad Tri-band wireless keypad. Replaces the 976LM and 977LM.
L979M keypad Wireless keypad
L979U keypad Universal keypad
VKP1-LM keypad myQ Smart Garage video keypad — camera and intercom built in

Receivers and transformers

Model What it is
412HM Coax receiver, 390 MHz — for a remote antenna run where range is poor
85LM Plug-in AC transformer for universal radio controls
95LM Transformer option. Replaces the Linear 524.

Universal remotes

The 374UT and 380UT are being phased out. For a red or orange learn button opener the 971LM or 893MAX is the better answer — and a universal needs a working remote to learn from, which the 893MAX does not. Use a universal only when the property runs non-LiftMaster equipment as well.

Model Buttons Status
L992U 2 Current universal remote
374UT 1, mini Being phased out — while stocks last
380UT 2 Being phased out — while stocks last

Batteries, clips and covers

Part What it is
10A20 3V battery for 97xLM series remotes
10-29C128 Visor clip for LiftMaster remotes
041-0494-000 Remote control visor clip
041-0495-000 Keypad battery cover
041D0541 Keypad battery cover
041D0621 877MAX cover only
VKP1-MYQ-BT1 myQ video keypad rechargeable battery
RTM Leather case for mini remotes

Programming a 390 MHz red or orange learn button remote

1. Find the learn button on the motor unit — usually beside the antenna wire, sometimes under the light lens.
2. Press and release it. The LED beside it comes on for about 30 seconds.
3. Within those 30 seconds, press the button on the new remote.
4. The opener light flashes or the unit clicks to confirm. Test the door.

To erase every remote from memory, press and hold the learn button until the LED goes out — around six seconds. That clears all of them, so reprogram every remote afterwards.

Common questions

My 971LM stopped working — do I need a new opener? No. Change the battery first. If that does not fix it, we still stock the genuine 971LM and it programs straight to the same opener.

What battery does a 971LM take? A 3V 10A20. Flat batteries are the most common cause of a remote that has "died".

Is the 973LM still made? No — the 893MAX replaces it, and being tri-band it also covers purple and yellow openers.

My opener was made after April 2005. Then it is probably not this series. Check the learn button colour — yellow means Security+ 2.0.

Can I mix old and new remotes on one opener? Yes, as long as they are all on the same frequency. A red or orange learn button opener will hold any mix of 390 MHz remotes.

The new remote programmed but the range is poor. Check the antenna wire hangs freely from the motor unit. In a metal building a 412HM coax receiver gets the antenna outside.

Related

37xLM series — purple, 315 MHz · Security+ 2.0 — yellow learn button · all LiftMaster remotes · wireless keypads · all remote controls

Not sure which remote you need? Send a photo of the learn button on your opener to parts@gatehousesupplies.com or call 866-965-5599 — we will identify it in a minute.

!
