DoorKing 9310 Slide Gate Operator Parts

DoorKing 9310 Replacement Parts

Genuine replacement parts for the DoorKing 9310 slide gate operator, 1/2 HP 115V. The item numbers below match DoorKing's own Illustrated Parts Breakdown, drawing 9310-880 — find your part on the diagram, then click the part number in the matching table.

Ordering by item number. Each section below has its own diagram and its own numbering. The number in the circle on the drawing is the Item number in the table beneath it.

Chassis, Cover & Switches

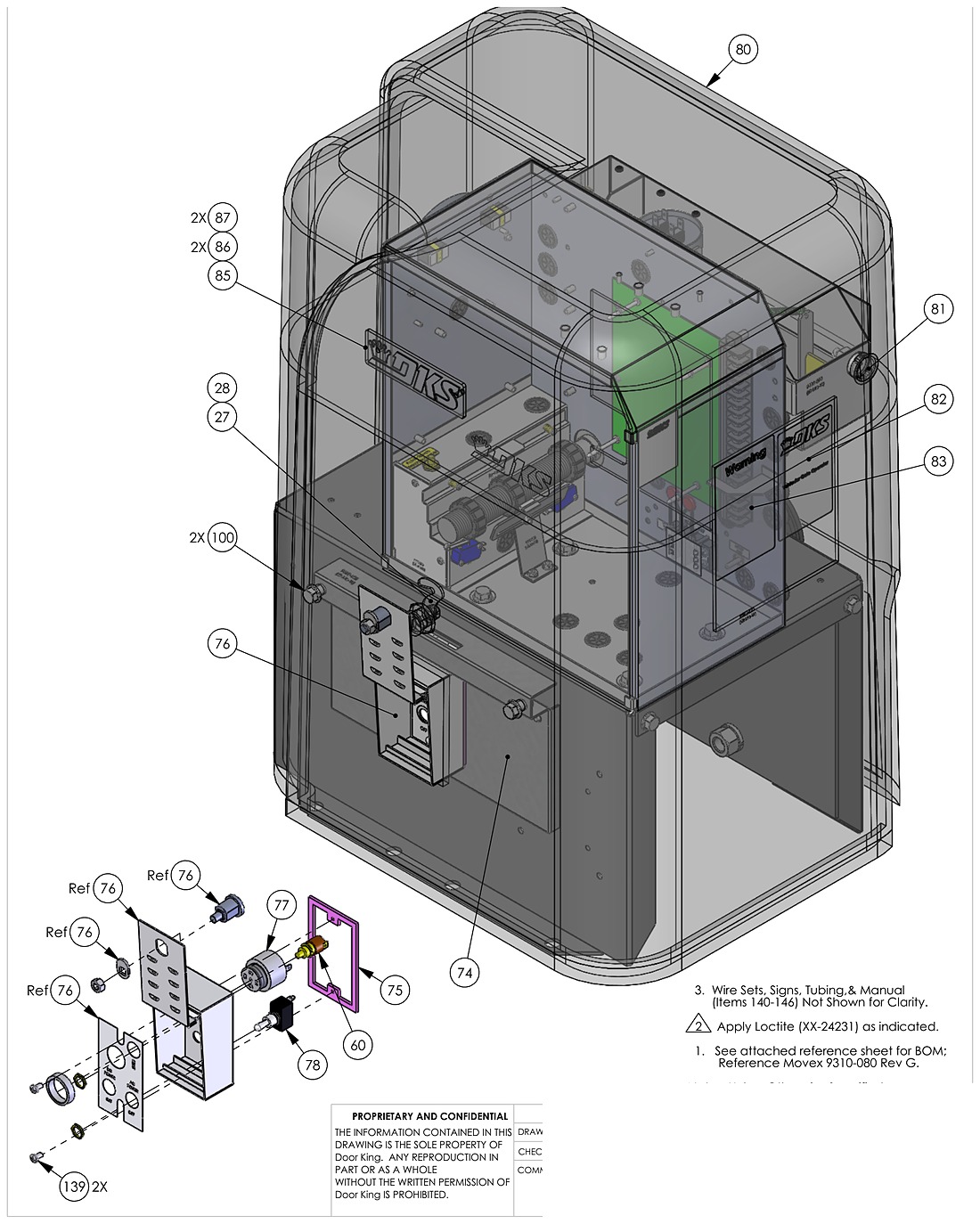

DoorKing 9310 slide gate operator chassis and cover parts diagram
Item Part Number Description
3 9310-304 Base, 9310
8 2600-350 Gearbox LIM-60D 10:1 — currently unavailable
10 2600-365 Lock sprocket, nylon ST801 — currently unavailable
17 2600-398 Idler chain roller
18 2600-619 Wire clip, 5/8"
27 4001-035 Lock, N16058BD with 2 keys
28 1702-507 Cam, "J" hook
60 1812-005 Switch, push button N.O.
74 9310-102 Bracket, switch 9310
75 2600-731 Gasket, switch cover
77 1506-071 Tone generator, loud
78 1601-041 Switch, toggle SPST 2 position
81 2600-793 Hole plug, black nylon 1.00" dia
82 2599-034 Label, gate operator
85 2600-732 Nameplate, plastic DKS
86 2802-040 Washer, push-on clamp
87 1897-052 Gasket, microphone support
100 2615-252 Bolt, whiz lock 5/16-18 x 1/2
139 2616-051 Screw, Phillips 10-32 x 3/8

Drive Assembly

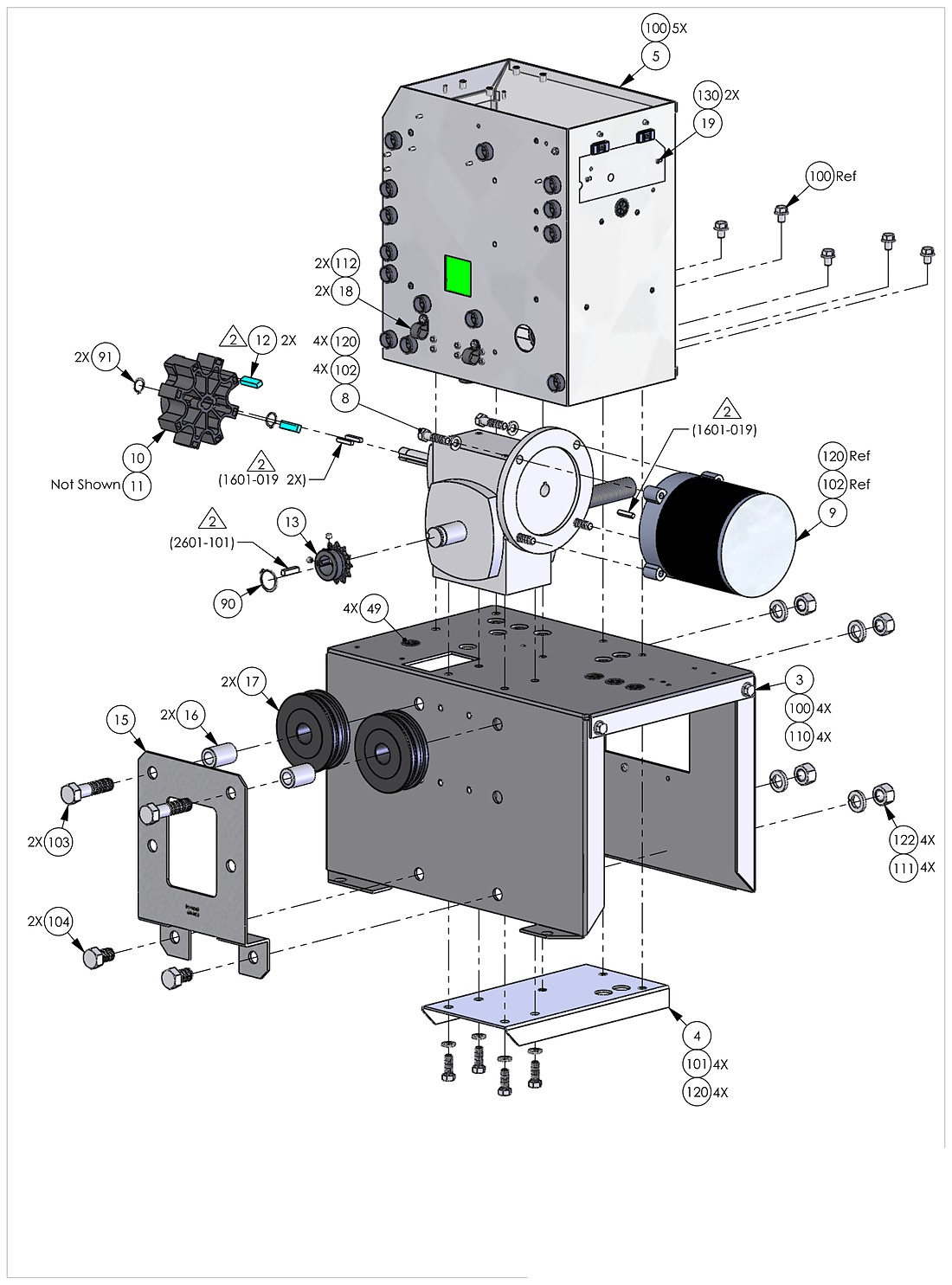

DoorKing 9310 drive assembly, motor and gearbox parts diagram
Item Part Number Description
4 2600-305 Base stiffener, Model 9300
5 9310-106 Box, control 9310
11 2599-220 Label, caution remove rod
12 2600-908 Magnet, rectangular
13 2600-366 Sprocket, 12 tooth 1" bore #41
15 9310-109 Bracket, idler 9310
16 2600-888 Bushing, 9300 1.5L x 1.0 OD x .63 ID
19 2600-945 Cover, plastic insulator
49 2600-810 Bushing, 7/8" poke-thru flaps
90 2630-011 Snap ring, 1" #3100-100ZD
91 2630-015 Snap ring, 5/8" 5100-62-ZY
101 2615-052 Bolt, hex head 3/8-16 x 1
102 2615-055 Bolt, hex head 3/8-16 x 1-1/2
103 2615-035 Bolt, hex head 5/8-11 x 2-1/2
104 2615-031 Bolt, hex head 5/8-11 x 1
110 2620-411 Nut, hex flange lock 5/16-18
111 2620-435 Nut, hex 5/8-11
120 2620-047 Lockwasher, 3/8"
122 2620-049 Lockwasher, 5/8"
130 2904-001 Screw, round head 4-40 x 1/4

Capacitor & Solenoid Panel

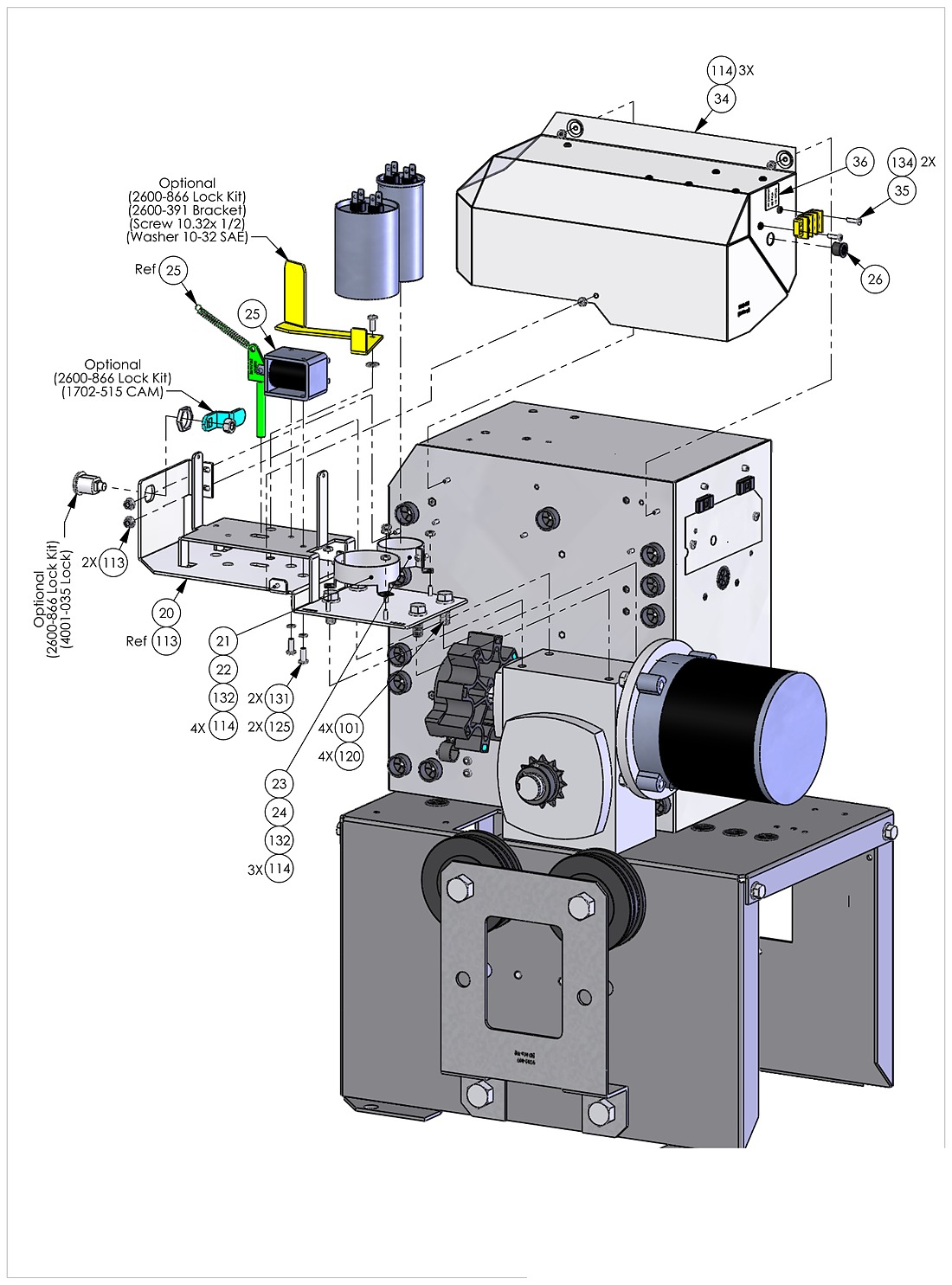

DoorKing 9310 capacitor and solenoid panel parts diagram
Item Part Number Description
20 9310-390 Panel, solenoid 9310 — currently unavailable
21 2600-875 Capacitor mounting clamp
22 2600-102 Capacitor, 50 uF 370VAC
23 2600-239 Capacitor clamp, VR6B
24 2600-860 Solenoid lock assembly, 91XX
26 2600-820 Bushing, 1/2"
34 9310-103 Cover, solenoid panel 9310
35 2600-413 Terminal block, 3 position
36 2599-038 Label, radio 9310
113 2902-004 Nut, nylon lock 8-32
114 2620-400 Nut, hex 6-32
125 2620-010 Washer, #10 SAE
131 1816-039 Screw, 10-32 x 1/4
132 2616-000 Screw, Phillips head 6-32 x 1/4
134 2616-002 Screw, Phillips head 6-32 x 1/2

Control Box & Limits

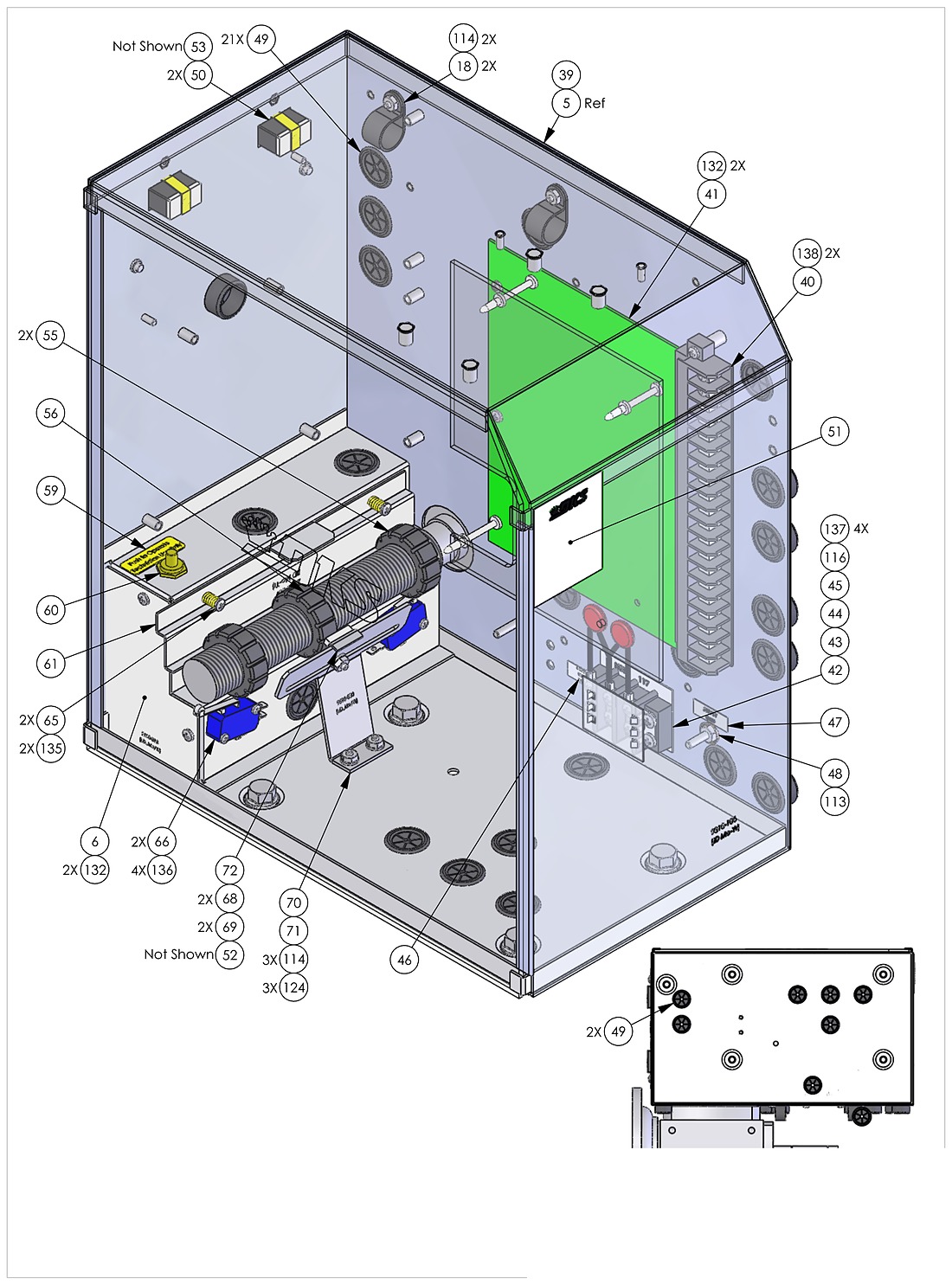

DoorKing 9310 control box and limit switch parts diagram
Item Part Number Description
6 2600-318 Bracket, wire cover
40 4001-020 Terminal, 20 pin
43 2600-414 Terminal block, 2 position
44 4001-093 MOV assembly, 130VAC
45 3129-002 Terminal block cover, 2 position
48 2600-439 Washer, cup brass
50 1200-028 Outlet, snap-in Leviton 1306
52 1215-018 Wire nut, #71B
53 2600-753 Wire crimp-on, #9 full insulated
55 2600-246 Limit nut — now supplied as the 2600-259
56 2600-248 Limit nut with magnet assembly — now supplied as the 2600-254
61 2600-360 Counter wheel magnet assembly
61 2600-307 Bracket, wheel lock 9300 — currently unavailable
65 2600-857 Spring, compression limits
66 1804-024 Switch, micro NO NC C
68 2616-031 Screw, flat head #0-90 x 1/4 slot
69 2620-399 Nut, hex 00-90 brass zinc plated
70 9310-300 Bracket, partial limit 9310
71 9310-301 Bracket, partial limit mount 9310
116 4001-021 Key, polarizing Tyco 1437410-5
124 2620-019 Washer, 3/8" SAE
135 2616-003 Screw, Phillips head 6-32 x 3/4
136 2904-004 Screw, round head 4-40 x 5/8
137 2616-019 Screw, Phillips head 8-32 x 3/4
138 2616-007 Screw, Phillips head 6-32 x 5/8

Chain Accessory Kit

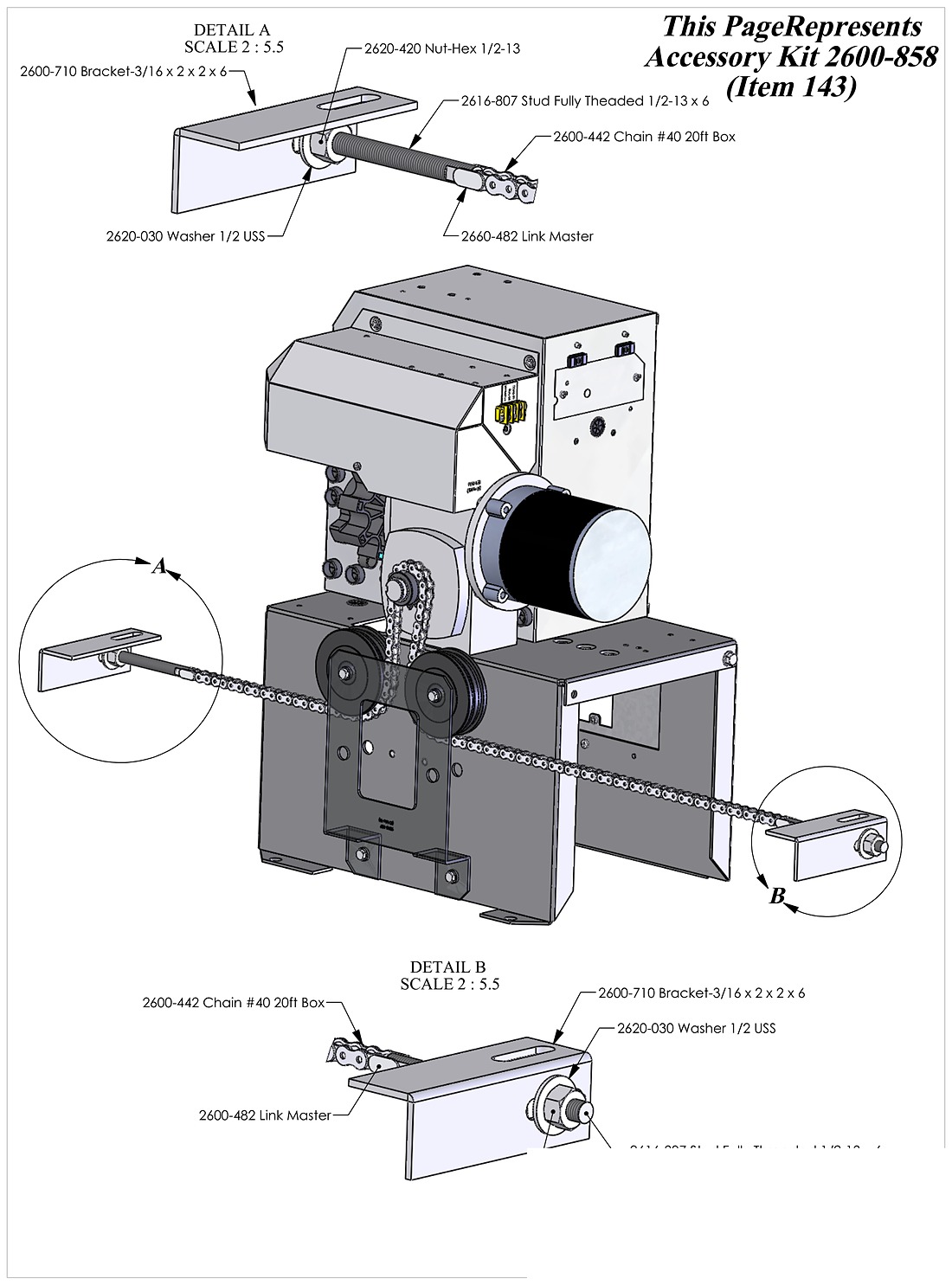

DoorKing 9310 chain accessory kit 2600-858 diagram
Item Part Number Description
143 2600-858 Accessory box, 9300 operator — includes #40 chain, brackets, studs, washers, nuts and master links

Not Shown on the Diagrams

Item Part Number Description
31 2801-004 Clutch pad, 5" OD x 3/4" ID
57 2600-102 Capacitor, 50 uF 370VAC
140 9300-043 Wire set, 9310 115/230 single phase
141 7082-192 Wire, blue 18AWG 24"
142 7082-193 Wire, MiniFit receptacle start capacitor
144 2599-100 Sign, warning
145 9402-053 Tubing, flex/slit 1/4" OD
146 9310-065 Manual
Control boards and accessories. The 9310 uses the 4404-010 gate operator board. Loop detectors, intercoms and power supplies for this operator are listed in the product grid below.
