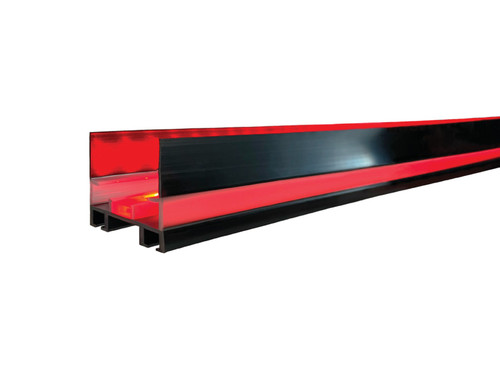

The Miller Edge LED-ARIES-ME123C-K14 is an Aries™ VisiLight LED™ dual-sided alert mounting channel for commercial motorized sectional doors 14' 3" to 20' 2" wide. The LED lighting is built directly into the leading-edge channel, so a single retrofit delivers both door-status lighting and a mounting home for your sensing edge.
A co-extruded UV-resistant diffusion window blends the individual LEDs into one smooth bar of light visible from inside and outside the opening.
Features
- Dual-sided always-on LEDs — visible from the interior and exterior of the opening
- Diffused light window turns individual LEDs into a solid, uniform bar
- Integrated leading-edge channel accepts a sensing edge or weather seal
- UV-resistant rigid PVC channel
- Kit includes LED controller, mounting channel and wiring kit
- 2-year warranty
Specifications
- For sectional doors 14' 3" to 20' 2" wide (section width), 1-3/4 in. to 2 in. thick
- LED strip length: 14 ft. 1 in.
- 18 bi-color LEDs per foot; red 532 lm/m, green 2,392 lm/m
- Lifespan: 44,000 hours
- Power: 115-230V supply, 24V LED via wall outlet
- LED strip IP68; controller enclosure NEMA 4
Compatible With
- Miller Edge ME123 sensing edge (sold separately)
- Miller Edge CPT215 sensing edge (sold separately)
- Miller Edge LS-0107 loop seal (sold separately)
Note: the sensing edge and weather seal are not included. Not recommended for high-speed doors.
