HubMax: 2-N-1: 125 Khz Proximity Reader 620-100451

(No reviews yet) Write a Review
SKU:
620-100451
Availability:
in stock

Product Price: $89.40

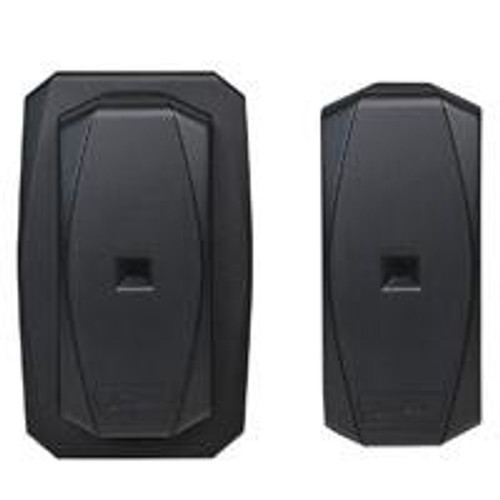

Linear’s 2-N-1 125 kHz Proximity Reader works with certain HID® AWID™ Farpointe® Data Pyramid Series, and Secura Key® Series protocols. The proximity reader is designed to fulfill two different mounting requirements – without needing any additional hardware! The 2-N-1 can be installed as either a mullion-mount reader or, when paired with the provided adapter plate, turns the reader into a single-gang electrical box style reader. Customers get a clean, low profile for both mullion and single-gang installations ready to install right out of the box for either configuration. Linear’s cards and tags do not contain batteries, requiring no maintenance. Reduce your stock and never be on the job again without the right model reader.

System Specifications

  • Reader type: Proximity; 26- to 37-bit Wiegand
  • Frequency: 125 kHz
  • Mounting: Mullion or Single Gang
  • Dimensions (H x W x D): Single-Gang: 4.77″ x 2.96″ x 1.33″
    Mullion: 3.92″ x 1.74″ x 0.98″
  • Weight: 3 oz. (85g)
  • IP Code: IP67
  • Interface: Wiegand ABA Track II
  • Operating Temperature: -40° F to 149° F
  • Color: Black
  • LED: Four-state indicator (red, green, amber, off)
  • Certification: ETL listed UL 294, FCC, ICC, CE, C-Tick
