Ramset RAM 302 Swing Gate Operator Parts
Ramset RAM 302 Swing Gate Operator Replacement Parts

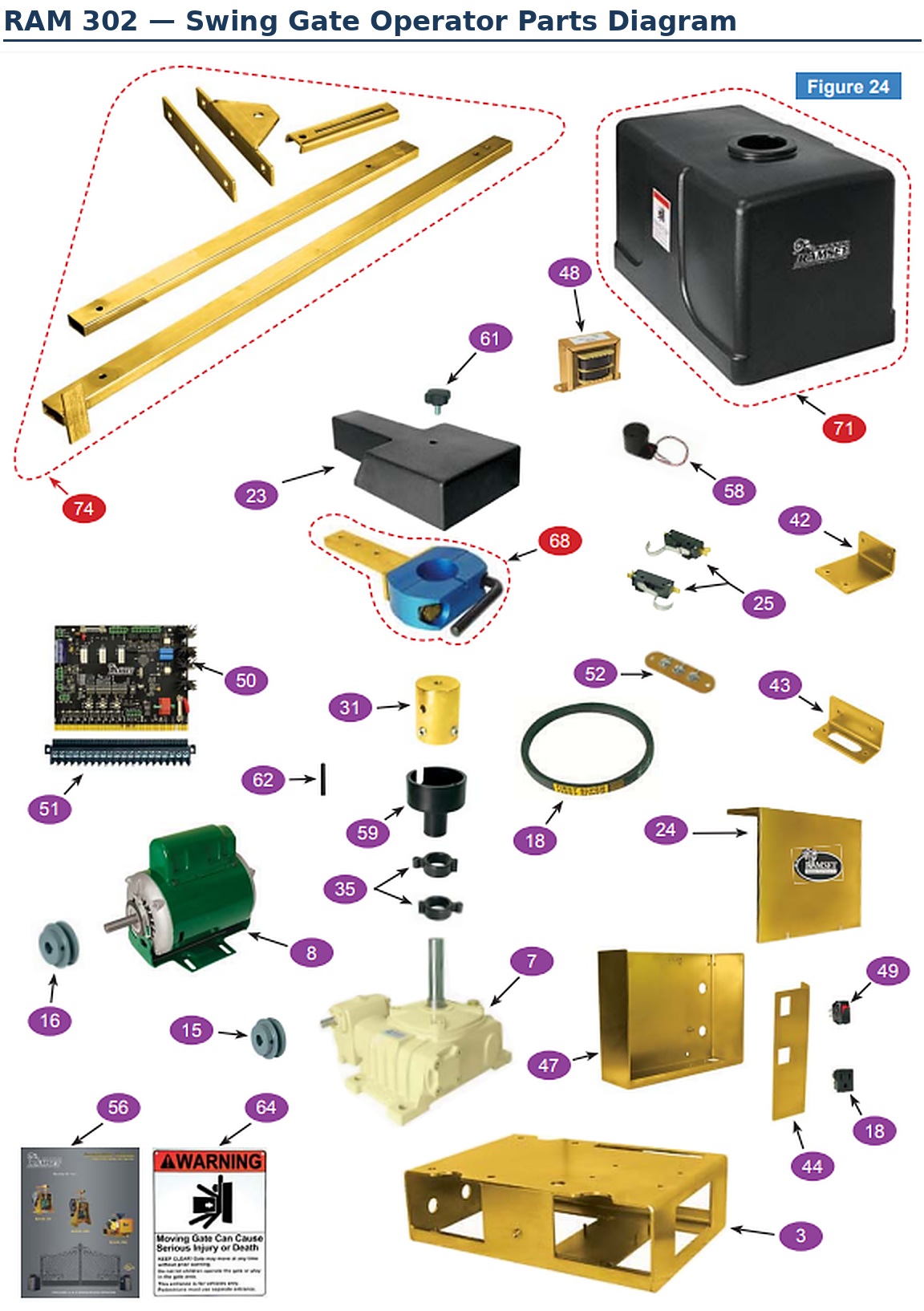

Genuine Ramset replacement parts for the RAM 302 swing gate operator, listed against the factory parts diagram above. Find the reference number on the drawing, match it in the table below and click the part number to order. Assembly breakdowns follow the main list, so you can buy a complete assembly or just the one component inside it that failed.
The RAM 302 is a residential and light commercial swing gate opener. If you know it as a Ramset R302 gate opener rather than an operator, you are in the right place — same unit, same parts.
Control board notice. The Intelligate board 800-63-00 (Domestic UL, post UL 325 2016) shown at reference 50 has been discontinued by Ramset. The current replacement path is the ETL board set — 800-65-01 logic board (specify AC or DC), 800-65-02 AC driver, 800-65-05 DC driver — or the 800-76-50 complete upgrade kit, which includes the board, edge connector, transformer and mounting plate.
If you are unsure which board your operator runs, send us a photo of the existing board and we will identify it.
Ramset RAM 302 Operator Parts
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 3 | 800-00-30 | Chassis Base - R302 | 1 |
| 7 | 800-02-09 | Gear Reducer - Size 70, Ratio 900:1 | 1 |
| 8 | 800-04-10 | Motor, Standard - 120VAC 1/2 HP | 1 |
| 15 | 800-08-25 | Pulley, Steel - 1/2" x 2 1/2" - AK25 | 1 |
| 16 | 800-08-40 | Pulley, Steel - 5/8" x 2 1/2" - AK25 | 1 |
| 18 | 800-10-00 | Belt - 4L-170 | 1 |
| 23 | 800-14-15 | Cover, Polyethylene Cap Arm | 1 |
| 24 | 800-14-21 | Cover, Metal Control Board | 1 |
| 25 | 800-20-05 | Limit Switch - Swing Operators | 2 |
| 31 | 800-28-26 | Pivot - 2 1/2" x 3 1/4" (1" shaft) | 1 |
| 35 | 800-48-01 | Cam, Limit Switch - 1 3/8" | 2 |
| 42 | 800-54-51 | Bracket, Mounting - Limit Switch | 1 |
| 43 | 800-54-65 | Bracket, Mounting - Receiver | 1 |
| 44 | 800-54-70 | Bracket, Outlet/Power Switch | 1 |
| 47 | 800-56-01 | Box, Metal - Control Board | 1 |
| 48 | 800-60-01 | Transformer, 115/230VAC to 20VAC - 20VA (1A) | 1 |
| 49 | 800-60-10 | Switch, Rocker | 1 |
| 50 | 800-63-00 | Control Board - Intelligate - Domestic UL | 1 |
| 51 | 800-64-00 | Edge Connector - 20 Pin | 1 |
| 52 | 800-64-50 | Radio Receiver Terminal | 1 |
| 56 | 800-68-03 | Instruction Manual - R30, R300, R302 | 1 |
| 58 | 800-70-22 | Horn Alarm Buzzer - 120dB (guide lists 800-70-21; supplied as 800-70-22) | 1 |
| 59 | 800-70-26 | Hub, Limit Switch Cam | 1 |
| 61 | 800-70-36 | Knob - 5/16" - 18 x 1/2" | 1 |
| 62 | 800-70-65 | Roll Pin - 3/16" x 1 1/4" | 1 |
| 64 | 800-70-98 | Warning Sign For Gates - Slide/Swing | 2 |
| 68 | 800-75-50 | Clamp release assy - R302 | 1 |
| 71 | 800-75-13 | Cover assembly - R302 | 1 |
| 74 | 800-75-00 | Arm assembly | 1 |
| — | 800-60-21 | Single Square Outlet (shown on diagram beside ref 44 and 49; guide mislabels it 18) | 1 |
Clamp Release Assembly — 800-75-50
Components supplied inside the clamp release assembly. Order the complete assembly above, or any single component below.
| Part Number | Description | Qty |
|---|---|---|
| 800-28-35 | Release, Lever Handle - 5/8" - 11 x 1 7/8" thread | 1 |
| 800-36-30 | Bolt, Hex Head - 1/2" - 13 x 1" | 1 |
| 800-36-50 | Bolt, Hex Head - 5/8" - 11 x 2" | 2 |
| 800-40-40 | Washer, Flat - ID 5/8", OD 1 5/16" | 1 |
| 800-40-76 | Washer, Split Lock - 1/2" | 2 |
| 800-48-80 | Clamp - Back | 2 |
| 800-48-81 | Clamp - Front | 1 |
| 800-54-20 | Bracket, Clamp Arm | 1 |
Cover Assembly — 800-75-13
Components supplied inside the cover assembly. Order the complete assembly above, or any single component below.
| Part Number | Description | Qty |
|---|---|---|
| 800-14-06 | Cover, Polyethylene - R302 | 1 |
| 800-32-40 | Screw, Machine - #6 - 32 x 1/2" (flat) | 2 |
| 800-38-90 | Nut, Hex Head K-Lock - #6 | 2 |
| 800-70-46 | Logo, Plastic | 1 |
| 800-70-53 | Plate, UL Sticker | 1 |
Arm Assembly — 800-75-00
Components supplied inside the arm assembly. Order the complete assembly above, or any single component below.
| Part Number | Description | Qty |
|---|---|---|
| 800-28-00 | Arm, Metal Tubing - 1" x 2" x 32" - 12 awg | 1 |
| 800-28-01 | Arm, Metal Tubing - 1" x 2" x 42" - 12 awg | 1 |
| 800-28-30 | Plastic End Cap - 1" x 2" | 2 |
| 800-36-24 | Bolt, Hex Head - 3/8" - 16 x 1 1/2" | 4 |
| 800-36-32 | Bolt, Hex Head - 1/2" - 13 x 1 1/2" | 1 |
| 800-36-36 | Bolt, Hex Head - 1/2" - 13 x 3" | 4 |
| 800-36-38 | Bolt, Hex Head - 1/2" - 13 x 4" | 1 |
| 800-38-74 | Nut, Hex Head Nylock - 3/8" | 4 |
| 800-38-76 | Nut, Hex Head Nylock - 1/2" | 6 |
| 800-40-27 | Washer, Flat - ID 1", OD 1" - F436 | 4 |
| 800-40-29 | Washer, Flat - ID 1/2", OD 1 1/2" | 3 |
| 800-54-10 | Bracket, Channel - 1 3/4" x 10" | 1 |
| 800-54-30 | Bracket, External Gate - 1 1/2" x 12" | 1 |
| 800-54-37 | Bracket, Internal Gate | 1 |
Common Ramset RAM 302 Faults and the Parts That Fix Them
Most calls we take about the RAM 302 come down to one of the following. Work through them in the order given — the cheap checks come first on purpose.
Gate runs past the open or closed position, or will not stop
Start with the two limit switches (ref 25), then the 1 3/8" limit cams (ref 35) and the cam hub (ref 59). The hub is what clamps the cams to the shaft, and a worn one lets them drift out of adjustment repeatedly.
Parts: 800-20-05 · 800-48-01 · 800-70-26 · 800-54-51
Manual release will not free the gate, or will not re-clamp
The RAM 302 uses a clamp release rather than a foot pedal. The lever handle, the front and back clamps and the clamp arm bracket all wear — see the assembly breakdown below.
Parts: 800-75-50 · 800-28-35 · 800-48-80 · 800-48-81
Motor runs but the gate is slow, jerky or does not move
Check the 4L-170 drive belt (ref 18) first, then the two pulleys (refs 15 and 16), then the 900:1 gear reducer (ref 7). The reducer is the expensive one, so rule out the belt and pulleys before ordering it.
Parts: 800-10-00 · 800-08-25 · 800-08-40 · 800-02-09
Nothing happens at all when you press the remote
Work back from the power in: transformer (ref 48), rocker switch (ref 49) and the square outlet on the same bracket, then the control board (ref 50) and its edge connector (ref 51). If the wall button works but the remote does not, it is the radio receiver terminal (ref 52).
Parts: 800-60-01 · 800-60-10 · 800-60-21 · 800-63-00 · 800-64-50
Water or insects inside the control box
The RAM 302 control electronics sit in a metal box (ref 47) behind a metal cover (ref 24), under the polyethylene cover assembly (ref 71). A cracked or missing cover is the usual entry point.
Parts: 800-56-01 · 800-14-21 · 800-75-13
None of this is a substitute for a service call on a gate that is binding, dragging or hitting its posts. A mechanical problem in the gate itself will destroy whichever part you replace.
