Ramset RAM 30 Swing Gate Operator Parts

Ramset RAM 30 Swing Gate Operator Replacement Parts

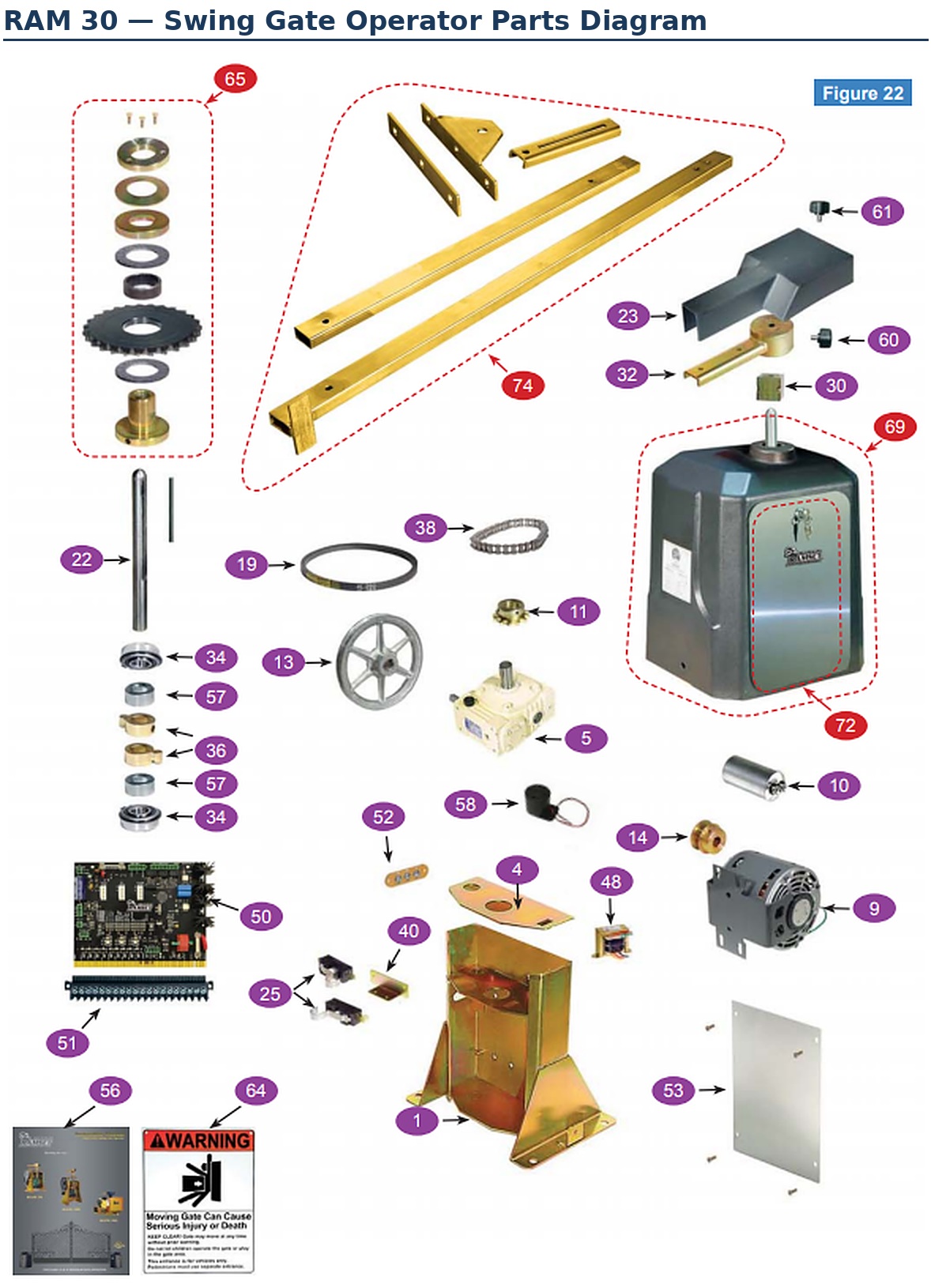

Genuine Ramset replacement parts for the RAM 30 swing gate operator, listed against the factory parts diagram above. Find the reference number on the drawing, match it in the table below and click the part number to order. Assembly breakdowns follow the main list, so you can buy a complete assembly or just the one component inside it that failed.

The RAM 30 is a residential and light commercial swing gate opener. If you know it as a Ramset R30 gate opener rather than an operator, you are in the right place — same unit, same parts.

Ramset RAM 30 Operator Parts

Torque Limited Assembly — 800-75-40

Components supplied inside the torque limited assembly. Order the complete assembly above, or any single component below.

Cover Assembly — 800-75-10

Components supplied inside the cover assembly. Order the complete assembly above, or any single component below.

Access Door Assembly — 800-75-06

Components supplied inside the access door assembly. Order the complete assembly above, or any single component below.

Arm Assembly — 800-75-00

Components supplied inside the arm assembly. Order the complete assembly above, or any single component below.

Common Ramset RAM 30 Faults and the Parts That Fix Them

Most calls we take about the RAM 30 come down to one of the following. Work through them in the order given — the cheap checks come first on purpose.

Gate runs past the open or closed position, or will not stop

Start with the two limit switches (ref 25), then the 3/4" limit cams (ref 36) and the limit shaft collars (ref 57). A cam that has slipped on the shaft is the most common cause, and a set screw is often all that is wrong.

Parts: 800-20-05 · 800-48-04 · 800-70-11 · 800-54-45

Motor hums but the gate does not move

On the RAM 30 this is usually the motor start capacitor (ref 10) or a slipping drive belt (ref 19). Check the belt tension first — it is the cheaper part and the easier test.

Parts: 800-04-92 · 800-10-04 · 800-04-11

Gate stops on light contact, or has lost all holding force

The torque limiter (ref 65) sets how much force the gate applies before it gives. Its friction discs wear and the assembly can be rebuilt rather than replaced whole.

Parts: 800-75-40 · 800-26-00 · 800-58-30

Nothing happens at all when you press the remote

Work back from the power in: transformer (ref 48), then the control board (ref 50) and its edge connector (ref 51). If the operator runs from the wall button but not the remote, it is the radio receiver terminal (ref 52).

Parts: 800-60-01 · 800-63-00 · 800-64-00 · 800-64-50

Drive chain jumping or noisy

Check the 22-link drive chain (ref 38) and the drive sprocket (ref 11), and inspect the sealed bearings (ref 34) for play.

Parts: 800-52-10 · 800-06-09 · 800-44-03

None of this is a substitute for a service call on a gate that is binding, dragging or hitting its posts. A mechanical problem in the gate itself will destroy whichever part you replace.

Other Ramset Swing Gate Operator Parts

The RAM 30 shares its arm assembly and most of its control components with the other Ramset swing operators. If you are not certain which unit you have, check the label inside the cover.

• Ramset RAM 300 swing gate operator parts
• Ramset RAM 302 swing gate operator parts
• All Ramset gate operator parts

Ramset part numbers all begin 800- and are stamped or labelled on most major components. If the number on your part has worn off, match it visually against the diagram above and confirm the reference number rather than going by the description alone — several Ramset gate openers use similar looking parts in different sizes. Not sure what you are looking at? Send us a photo and we will identify it.
