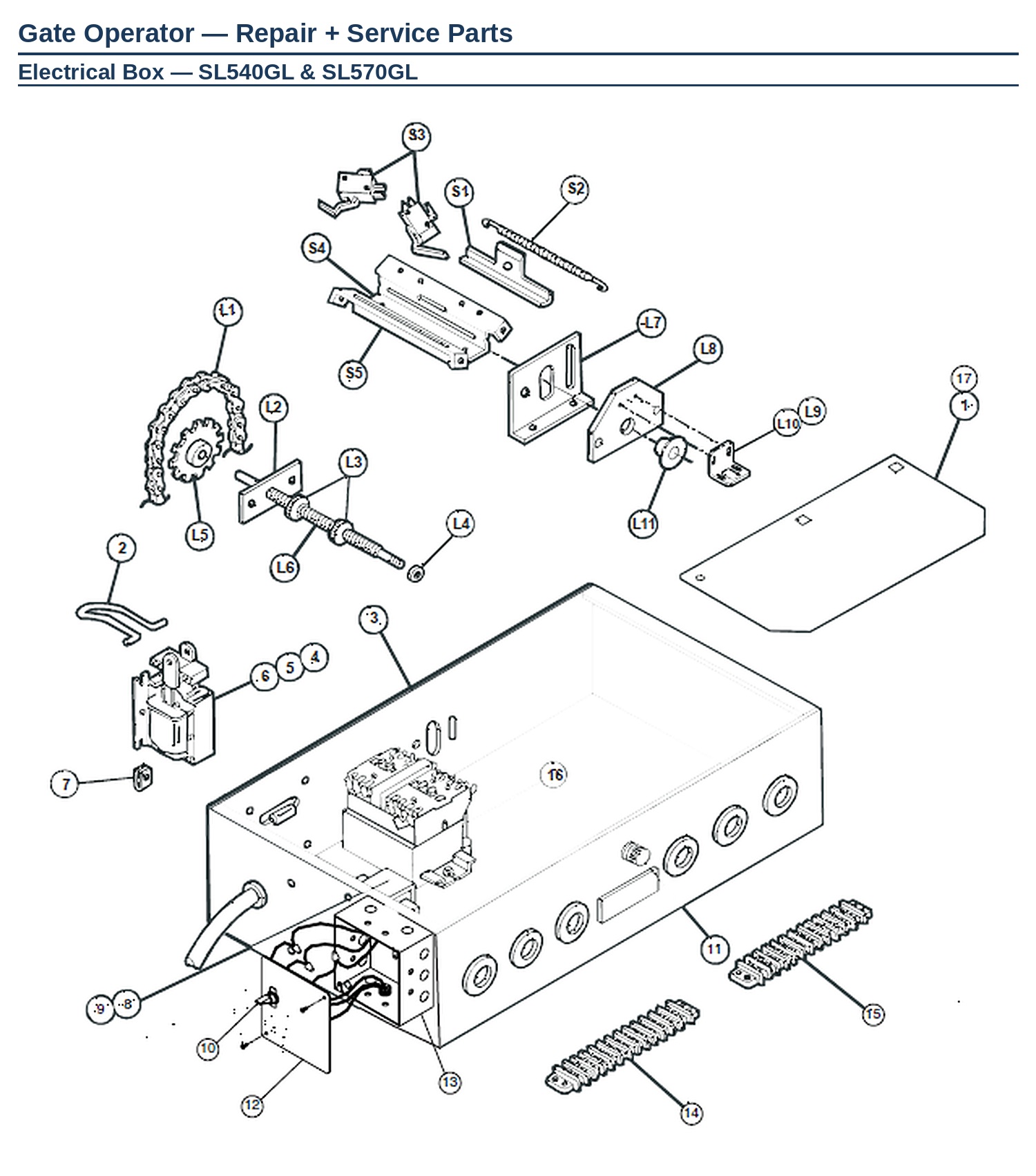

LiftMaster SL540GL and SL570GL electrical box replacement parts diagram

LiftMaster SL540GL and SL570GL Electrical Box Parts

Genuine replacement parts for the electrical box fitted to the LiftMaster SL540GL and SL570GL commercial slide gate operators. The same box serves both models. Use the exploded view above to identify your part, then click any part number to order.

Your overload is sized to the motor, not the model. This is the most common wrong order on this box. Single-phase units take a 25-20xx overload; three-phase units take a 25-40xx. Read the configuration code off your operator's data label and match it in the table below rather than guessing from horsepower.

Brake solenoid follows supply voltage. 115V takes 22-120, 230V takes 22-240, 575V three-phase takes 22-575. All three are stocked. The wrong coil voltage will either fail to release the brake or burn out.

A complete electrical box is ordered by adding a K prefix to your operator's model number — for example SL570-100-23 becomes K73SL570-100-23.

Part numbers shown as plain text rather than links are no longer available from the manufacturer.

Electrical Box Components

Ref	Part #	Description
1	K001A5566	GL PCB Assembly — no longer available
2	MG4101510	Brake Solenoid Link
4	22-575	Brake Solenoid, 575V
5	22-240	Brake Solenoid, 240V
6	22-120	Brake Solenoid, 120V
8	21-3260-1	Secondary Fuse
11	—	Overload — see the table below
16	G038024K	24V Contactor
—	K35-310-032-1	Fuse Kit

Overloads — Match Your Configuration Code

Single phase uses the 25-20xx range; three phase uses the 25-40xx range.

Ref	Part #	Rating and fitment
11	25-2006	6 Amp — SL540-33-21, SL540-50-21, SL570-50-21
11	25-2008	8 Amp — SL540-33-11, SL570-75-21
11	25-2010	10 Amp — SL540-50-11, SL570-50-11, SL570-100-21
11	25-2015	15 Amp — SL570-75-11
11	25-2020	20 Amp — SL570-100-11
11	25-2025	25 Amp
11	25-4001	1.0 Amp — SL570-50-43, no longer available
11	25-4001-5	1.5 Amp — SL570-75-43
11	25-4004	4.0 Amp — SL570-75-23, SL570-100-23
11	25-4006	6.0 Amp
11	25-4008	8.0 Amp

Limit Shaft and Limit Switch Kits

Two lettered groups sit inside this box and they are different assemblies. L1–L11 belong to the limit shaft, sold complete as kit K72-18628. S1–S5 belong to the limit switch, sold complete as kit K74-18629. Several components inside each are kit-only and cannot be bought separately.

Full component breakdowns with part numbers for both kits are on the operator pages: SL540GL parts and SL570GL parts. The most commonly replaced items are the K13-10024 limit nut, the K74-18379 hall effect sensor with its K29-18163 magnet, and the K23-10041 limit switch.
