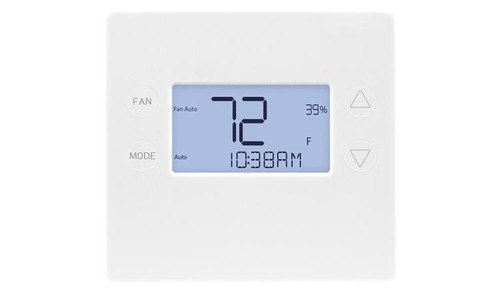

2GIG STZ-1 (2GIG-STZ-1) — a Z-Wave Plus 700-series programmable smart thermostat from 2GIG / Nortek Control. It pairs with any Z-Wave Plus controller or security panel, reports temperature and humidity to the panel, and runs schedules and scenes set from the panel or its app.
Specifications
| Model | 2GIG-STZ-1 |
|---|---|
| Radio | Z-Wave Plus, 700 series, S2 security, SmartStart QR-code pairing |
| HVAC support | 3-stage heat, 2-stage cool; humidity sensing and control |
| Setpoint range | Heat 32–90°F; cool 61–122°F |
| Power | 24 VAC from the HVAC “C” wire and/or four AA batteries (not a Z-Wave repeater on battery power alone) |
| Display | Fixed-format LCD with white backlight, capacitive touch buttons |
| Dimensions | 5.75 × 4.5 × 1 in |
| In the box | Thermostat, four AA batteries, mounting hardware, installation manual, quick start guide |
Panel compatibility
- Any Z-Wave Plus controller or hub
- 2GIG GC2e (firmware 1.23 or later), GC3 and GC3e (firmware 3.2.5 or later)
- Not compatible with the original 2GIG GC2 panel
Not sure it will pair with your panel? Send us the panel model and firmware version — parts@gatehousesupplies.com or 866-965-5599.
