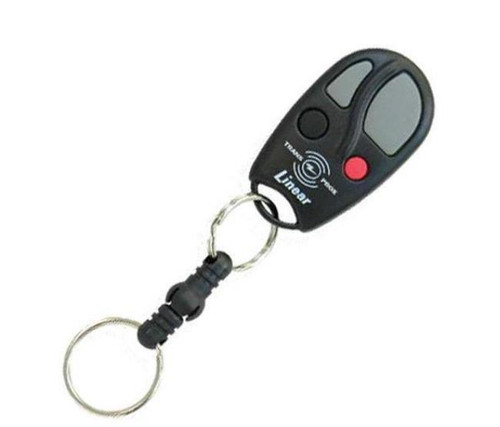

Linear ACT-34D [ACP00955]



The ACT-34D also contains a 26-bit Wiegand proximity tag programmed to the same block code as the transmitter. The tag is compatible with the Model AM-PR Proximity Reader. Waving the transmitter near the reader will request access from the system. The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter. Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used with a Linear access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of the block into the system.

Facility codes can be selected to further customize the system.



Compatible with all Linear access receivers and controllers

Built-in 26-bit Wiegand proximity tag

Eliminates need for separate proximity card or tags and transmitter

Supplied with quick-disconnect key ring

Same facility and ID codes for transmitter and proximity tag

Power: Two 2016 batteries

Codes: Factory block coded in MegaCode format

RF frequency: 318 MHz

Dimensions: 1.25" W x 2.25" H x .48" D
