LA500XL20W Single Arm 20W XL Solar Kit

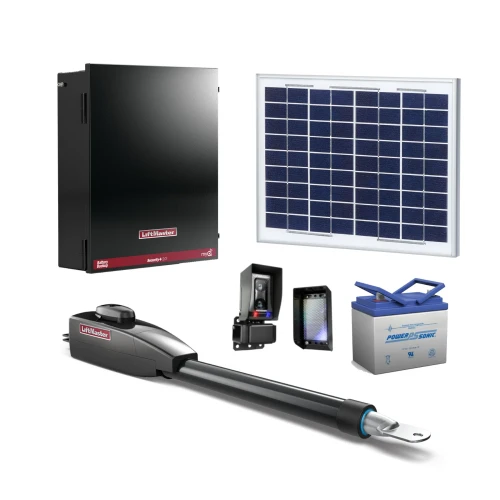

LA500XL20W Single Arm Solar kit Kit Includes La500dc arm, XL Solar control box with k94-37236 harness, 2) 10watt 12v solar panels 2) 33ah batteries and battery tray 1) LMRRU Photo eye For dual gates order extra la500dcs secondary arm Updated unit complies with new UL325 code revised Jan 2016 System now requires monitored secondary entrapment devices unit will include LMRRU safety photo eye Liftmaster LA500XL20W Installation Manual (click here)

	Features Our most popular swing gate operator delivers unsurpassed performance and secure access to your property. Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0™ radio. Our industry-leading power management technology extends battery backup for up to 24* days without recharging, providing greater reliability and security. No other company can offer you that peace of mind. Connectivity MyQ Technology enables you to securely monitor and control your gate operator and houselights with your smartphone for greater peace of mind. Alerts can be received as email or pop-up (push) notifications on your mobile device so that you always know the status of your gate operator. MyQ Mobile App is a free download with no annual activation fee. Performance Battery Backup safeguards your property by providing up to 500 cycles* or up to 24 days* of standby power when the power is down. Solar Ready Ultra Reliable System delivers power when you need it most to operate the gate and is extremely power efficient at all other times to maximize solar performance. Home owners may qualify for 30% solar tax credit. Gate Size rated for gates up to 18 ft. in length or weighing up to 1600 lbs. Commercial Duty Cast Aluminum Housing with Heavy-Duty DC Motor powerful enough to perform in the most demanding applications. Soft start/stop operation extends operator and hardware life for heavy-duty gate use. Safety and Security Security+ 2.0™ Patented Multi-Frequency Secure Radio Technology virtually eliminates interference and offers 2X the range of standard remotes so you can access your home quickly and safely. Quick Close/Anti Tailgate Selectable Feature quickly secures gate and prevents unauthorized access. Plug-in Loop Detector Inputs Innovative Design ensures vehicles are easily identified to exit property or interrupt gate travel if a vehicle is in its path. Safety Inputs provided for the addition of safety reversing devices. Each entrapment point should be protected with its own device. UL/cUL Listed tested to the most stringent industry guidelines.

Troubleshooting LA500 error codes

Code            Solution

31 Control board has experienced an internal failure. Disconnect all power, wait 15 seconds, then reconnect power (reboot). If issue continues, replace control board.

32 Linear Drive Disengaged (Arm 1) Disengage then re-engage arm, check wiring and connections.
33 Linear Drive Disengaged (Arm 2) Disengage then re-engage arm, check wiring and connections.
34 Absolute Position Encoder Error, not getting position information from encoder Check the operator cable connections, then reprogram the limits.
35 Max-Run-Time Exceeded Error Check for an obstruction, then reprogram the limits.

36 Product ID Error Was the control board just replaced? If so, erase limits, enter limit setup mode and set limits. If not, disconnect all power, wait 15 seconds, then reconnect power before changing product ID harness.

37 Product ID Failure Unplug product ID harness then plug back in. Disconnect all power, wait 15 seconds, then reconnect power before replacing product ID harness.
38 Hard Stop Limit (Arm 1) Limit may be set too tightly against a non-resilient hard stop (re-adjust limit). Operator may be at end of travel (re-adjust mounting).
39 Hard Stop Limit (Arm 2) Limit may be set too tightly against a non-resilient hard stop (re-adjust limit). Operator may be at end of travel (re-adjust mounting).
40 Battery overvoltage Too much voltage on the battery. Check harness. Make sure you do NOT have a 24V battery on a 12V system.
41 Battery overcurrent Possible short of the battery charge harness. Check harness. Make sure you do NOT have a 12V battery on a 24V system.

42 No battery at boot up Check battery connections and installation. Replace batteries if depleted to less than 20V on a 24V system. Make sure you do NOT have a single 12V battery on a 24V system.
43 Loop Error - Failure or missing exit loop (SHORT or OPEN - LiftMaster Plug-in Loop Detector only) Check loop wiring throughout connection. May be a short in the loop, or an open connection in the loop.

44 Loop Error - Failure or missing shadow loop (SHORT or OPEN - LiftMaster Plug-in Loop Detector only) Check loop wiring throughout connection. May be a short in the loop, or an open connection in the loop.

45 Loop Error - Failure or missing interrupt loop (SHORT or OPEN - LiftMaster Plug-in Loop Detector only) Check loop wiring throughout connection. May be a short in the loop, or an open connection in the loop.
46 Wireless edge battery low Replace batteries in wireless edge.
51 Pass-point not detected (Arm 1) Check yellow pass-point wiring. If limits are not accurate, reprogram. Rarely, may be standard operation.
52 Pass-point not detected (Arm 2) Check yellow pass-point wiring. If limits are not accurate, reprogram. Rarely, may be standard operation.

53 Brownout occurred AC/DC board supply dipped below allowable level. Review power supply and wiring. If rebooting, ensure enough time for discharge of power to force a fresh boot.

54 Wireless Second Operator Communication Error Check the second operator for power. If OFF, restore power and try to run the system. If powered, deactivate the wireless feature and then re-learn the second operator.
60 Minimum number of monitored entrapment protection devices (one) not installed. Review monitored entrapment protection device connections.
61 CLOSE EYE/INTERRUPT held more than 3 minutes (main board) Check CLOSE EYE/INTERRUPT input on main board; check for alignment or obstruction.
62 CLOSE EDGE held more than 3 minutes (main board) Check CLOSE EDGE input on main board; check for alignment or obstruction.
63 OPEN EYE/EDGE held more than 3 minutes (main board) Check OPEN EYE/EDGE input on main board; check for alignment or obstruction.
64 CLOSE EYE/INTERRUPT held more than 3 minutes (expansion board) Check wired input on expansion board; check for alignment or obstruction.
65 CLOSE EYE/EDGE held more than 3 minutes (expansion board) Check wired input on expansion board; check for alignment or obstruction.

66 OPEN EYE/EDGE held more than 3 minutes (expansion board) Check wired input on expansion board; check for alignment or obstruction.
67 Wireless edge triggered more than 3 minutes Check wired input for wiring issue or obstruction.
68 Wireless edge loss of monitoring Check wireless edge inputs.
69 Wireless edge triggered IF an obstruction occurred, no action required. If an obstruction did NOT occur, check inputs and wiring.

70 CLOSE EYE/INTERRUPT triggered, causing reversal, preventing close, or resetting TTC (main board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.
71 CLOSE EDGE triggered, causing reversal, preventing close, or cancelling TTC (main board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.
72 OPEN EYE/EDGE triggered, causing reversal or preventing opening (main board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.

73 CLOSE EYE/INTERRUPT triggered, causing reversal, preventing close, or resetting TTC (expansion board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.

74 CLOSE EYE/EDGE triggered, causing reversal and preventing close or cancelling TTC (expansion board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.
75 OPEN EYE/EDGE triggered, causing reversal or preventing opening (expansion board) IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring.
80 Close input (EYE/EDGE) communication fault (secondary control box) Check the connections between the main board and the secondary operator.
81 Open input (EYE/EDGE) communication fault (secondary control box) Check the connections between the main board and the secondary operator.
82 Close input (EYE/EDGE) communication fault (expansion board) Check the connections between the main board and the expansion board.
83 Open input (EYE/EDGE) communication fault (expansion board) Check the connections between the main board and the expansion board.

91 Force reversal (Arm 1) Check for obstruction. If no obstruction, check that the operator arm is engaged and free to move. Refer to Limit and Force Adjustment section, and Obstruction Test.

92 Force reversal (Arm 2) Check for obstruction. If no obstruction, check that the operator arm is engaged and free to move. Refer to Limit and Force Adjustment section, and Obstruction Test.

93 RPM / STALL Reversal (Arm 1) Check for obstruction. If no obstruction, check the operator cable wiring and that the operator arm is engaged and free to move. Replace the operator arm if necessary.

94 RPM / STALL Reversal (Arm 2) Check for obstruction. If no obstruction, check the operator cable wiring and that the operator arm is engaged and free to move. Replace the operator arm if necessary.
99 Normal Operation No action required
