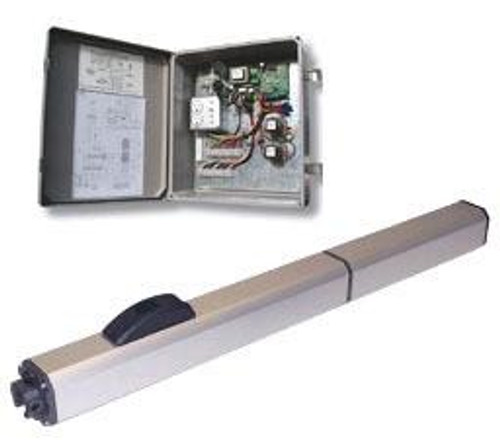

FAAC 400 Hydraulic Swing Gate Operator system for single swing gate, would need to add extra Faac 400 arm only for dual gate operation.
Kit Components:
- 104201125 FAAC 400 CBAC Standard Operator Arm Only, 115VAC
- 3300.10420112.5 FAAC Fiberglass Enclosure Only for 400 CBAC Box Includes 1 Prewired enclosure (3300) 1 455D control panel 115V
(790944) 1 Receiver 433 RC Plug In
(787856) 2 4-channel transmitter
(787453) 1 Pair of XP30 photobeams
(785105) 2 XP 30 adapters (401064)
One hydraulic gate operators Mounting hardware One 455 D control panel One 14 x 16 in. weather resistant UL Listed fiberglass enclosure manual release key 115 VAC receptacle for accessories (5 amp max.) ON/OFF switch controlling power to control panel, accessories and plug outlet Large pre-wired terminals for easy wiring to control panel Test button Two warning signs UL325 compliant Application: Apartment, Subdivision, Commercial, Industrial, Residential Maximum Gate Swing: 115 degrees Opening Time: 17 seconds Maximum weight 1300 pounds per gate Maximum length: 18 feet per gate Cycles: 80 per hour Dimensions: 40.5 x 3.35 x 3.35
Does not include required positive stops
Does not include required positive stops
