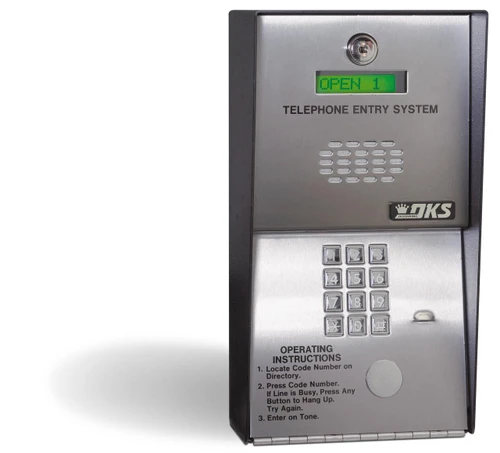

DoorKing's 1802-082 1000 capacity is ideal telephone entry systems that are loaded with features and are suited for applications that have limited space and can be used in residential as well as commercial applications. The 1802 is designed for applications that do not require a directory, or in applications where a separate directory exist, Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone. . Note: can not be programmed via modem.
Click here for brochure.
ADVANCED FEATURES Programmable directory codes (1-4 digits). 10 and 11-digit dialing capability. Two special inputs can be programmed for relay activation or to dial out a pre programmed phone number. 5-digit entry codes for special needs. LED lighted keypad. Built-in time clock. Hold open time zones. Entry code time zones. "Flash" entry codes. Built-in postal lock provision.
SPECIFICATIONS 1802 stores up to 1000 telephone numbers. EEPROM Memory. Full duplex communication. 4-digit entry codes; same number as memory ordered. Six, 5-digit entry codes. 15 area codes. 16 VAC, 20 VA (250 ma) power transformer provided. Ringer equivalence: 0.0 A. Jack type: RJ11C or W. FCC (US): DUF6VT-12874-OT-0 DOC (CAN): 1736 4507 A Complies with UL 294; ETL Listed. Surface mount dimensions: 12"H x 6.5"W x 5"D. Flush mount dimensions: 14"H x 8.375"W x 3.25"D.
