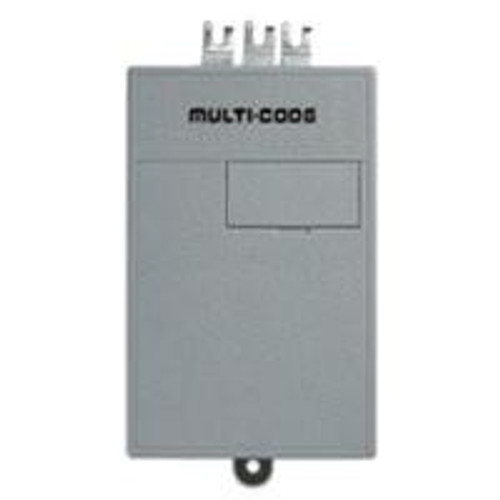

309013: 1-Channel Receiver

The Model 309013 1-Channel Receiver is a versatile and reliable solution for residential garage door operations, engineered for seamless integration with most door operators. With a straightforward setup, this receiver mounts directly to the three terminals on your garage door operator, ensuring a hassle-free installation process.

Equipped with an 11-inch wire antenna, the Model 309013 enhances signal reception to guarantee that your garage door responds promptly to remote commands. Powered by 24-volt AC, the receiver can draw energy directly from the door operator or use a separate transformer for flexible power options. For additional convenience, the Model 309013 supports various remote power accessories, including the Model 109201 and Model 109207 Wiring Harnesses, both of which come with a plug-in transformer to facilitate easy connectivity.

The receiver's innovative design features two-way terminal lugs, allowing for secure connections either under terminal screws or through push-on terminals, making it suitable for remote placement applications when combined with the Model 109206 3-Wire Adapter. Programming is user-friendly, thanks to the 10-position coding switch. This enables effective pairing with transmitters, utilizing a unique set of codes for enhanced security.

Operating at an RF frequency of 310 MHz, the Model 309013 is tailored to work exclusively with Stanley and Multi-Code transmitters, ensuring compatibility and performance. With compact dimensions of 3" W x 5.5" H x 1.5" D, this receiver is both functional and unobtrusive. Elevate your garage door access experience with the dependable performance and advanced features of the Model 309013 1-Channel Receiver.

The Model 309013 1-Channel Receiver is designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver. The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the Model 309013 include the Model 109201 Wiring Harness and the Model 109207 Wiring Harness. Both models include a plug-in transformer. The receiver's exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the Model 109206 3-Wire Adapter. The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the door operator. The Model 309013 is compatible with 310 MHz Stanley and Multi-Code transmitters only.
